User Manual for Audio-Technica Consumer AT-LP3 Stereo Turntable Click to enlarge the picture
Contents of the user manual for the Audio-Technica Consumer AT-LP3 Stereo Turntable
- Product category: Turntables Audio-Technica Consumer
- Brand: Audio-Technica Consumer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Consumer Turntables
 |
User manual for the Audio-Technica Consumer AT-LP3 Stereo Turntable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica Consumer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica Consumer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica Consumer product will considerably shorten its lifespan!
|

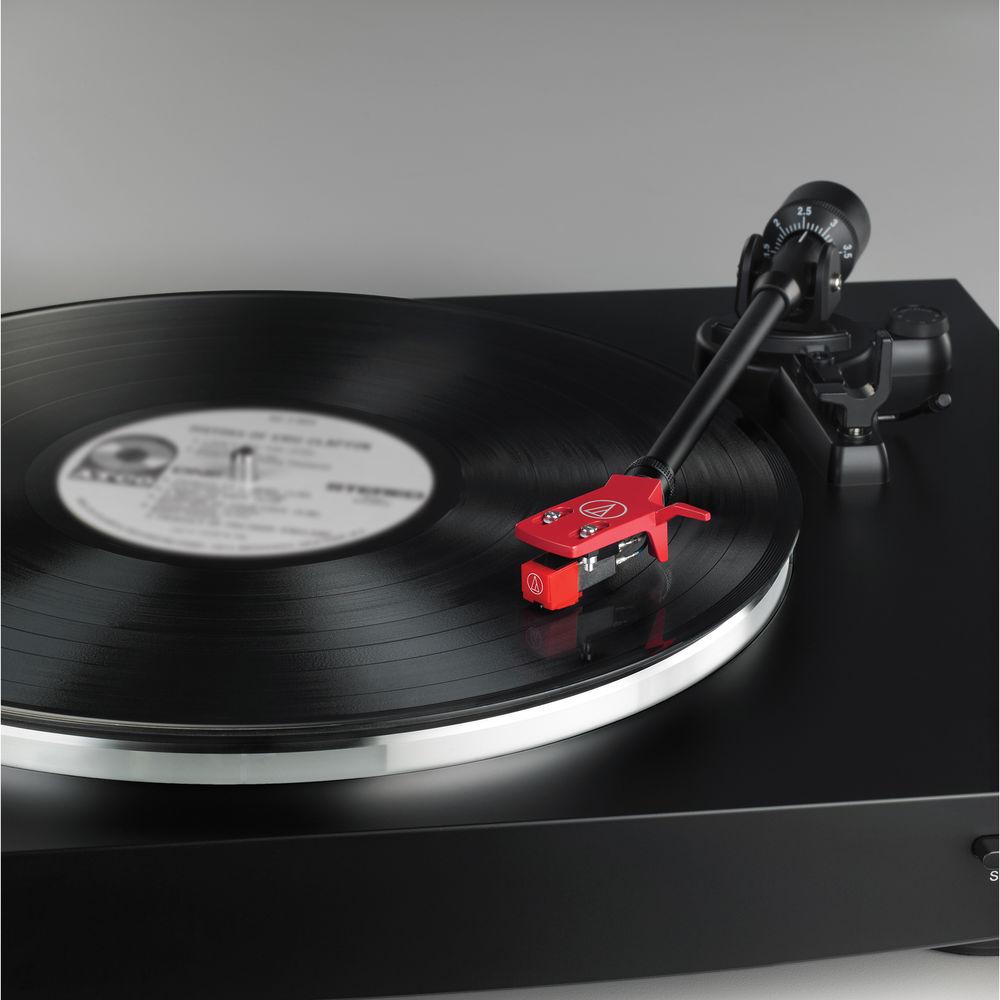

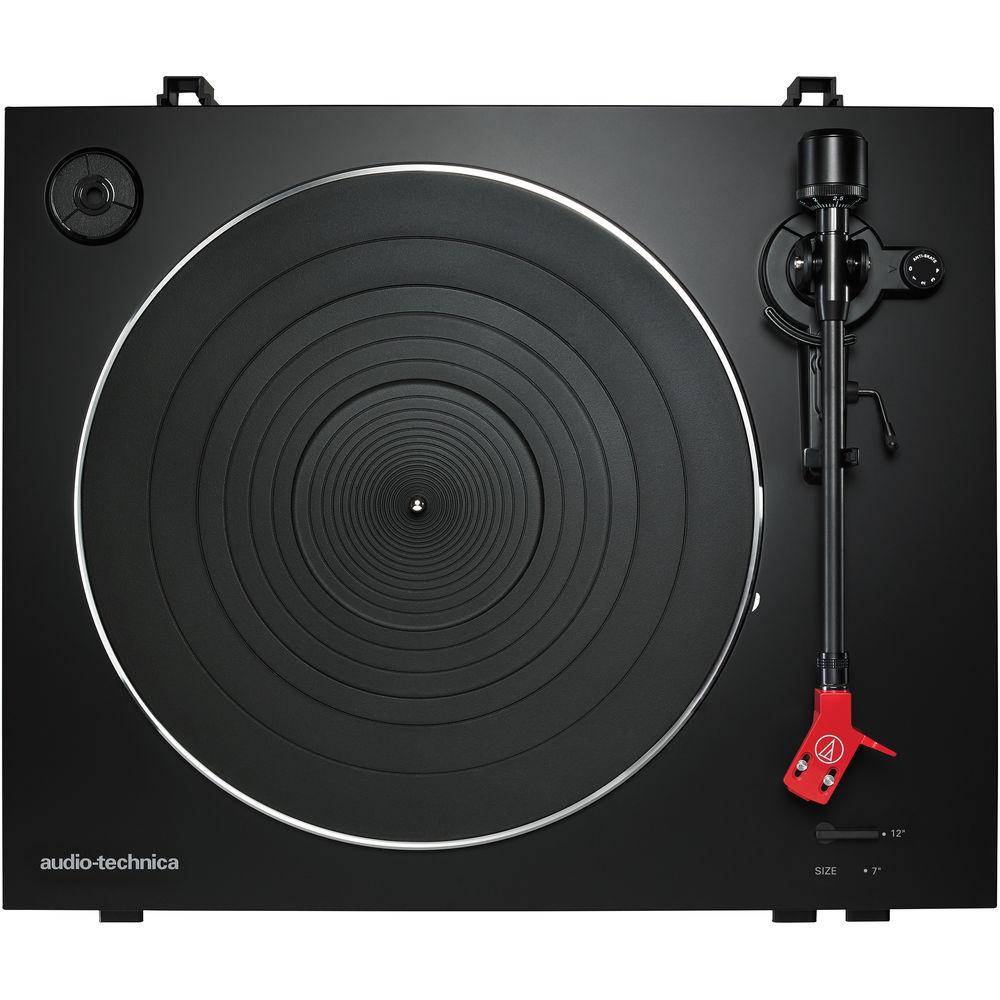

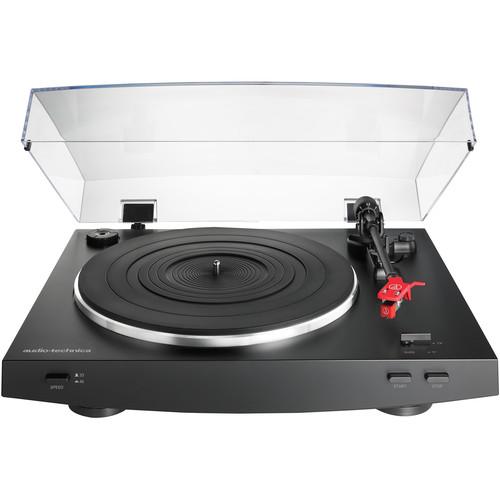

Product description Enjoy your vinyl records with your favorite audio system and the black Audio-Technica AT-LP3 Stereo Turntable. It features a built-in stereo RCA cable and a switchable preamp to connect to nearly any type of sound system. Its fully automatic operation starts the platter when the tone arm is lifted and brakes when the needle is positioned on its mount. The AT-LP3 has 33-1/3 and 45 rpm playback speeds and includes a MM cartridge, removable dust cover, and replaceable stylus. - Fully automatic belt-drive turntable with 33-1/3 and 45 rpm speeds
- Balanced straight tonearm with hydraulically damped lift control and lockable rest
- Built-in switchable phono/line preamplifier with attached dual RCA output cable
- Switchable preamp modes for moving magnet and moving coil cartridges
- 0.5" mount universal headshell with AT91R Dual Moving Magnet phono cartridge and diamond stylus designed for long life
- Anti-resonance, die-cast aluminum platter with 0.16"-thick rubber mat
- Damped base construction for reduced low-frequency feedback coloration
In the Box Audio-Technica Consumer AT-LP3 Stereo Turntable (Black) AT91R Dual Moving Magnet Stereo Cartridge with Replaceable Stylus Universal Headshell 45 rpm Adapter Hinged Dust Cover Rubber Mat Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer AT-LP3 Stereo Turntable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Consumer AT-LP3 Specs | | | Speeds | 33-1/3, 45 rpm | | Motor | Fully automatic belt drive | | Drive Mechanism | DC servo-controlled | | Replacement Stylus | ATN91R | | Turntable Platter | Die-cast aluminum | | Signal to Noise Ratio | >50 dB (DIN-B) | | Wow and Flutter | Less than 0.25% (WTD) @ 3 kHz (JIS) | | Preamp Overall Gain | 36 dB nominal, RIAA-equalized | | Connectors | Built-in stereo RCA cable with switchable preamp | | Output Level | Preamp "PHONO": 1.5 to 3.6 mV nominal at 1 kHz, 2" (5 cm)/sec
Preamp "LINE": 129 to 313 mV nominal at 1 kHz, 2" (5 cm)/sec | | Headshell | 0.5" (12.7 mm) mount universal | | Rubber Mat | 0.16" (4 mm) | | | | Power Requirement | 120 VAC, 60 Hz | | Dimensions (W x H x D) | 17.1 x 5 x 13.8" (434 x 128 x 350 mm) | | Weight | 11.5 lb (5.2 kg) | | | | Package Weight | 17.5 lb | | Box Dimensions (LxWxH) | 21.0 x 19.1 x 9.8" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 51 owners. Add your rating and experience with the product.
