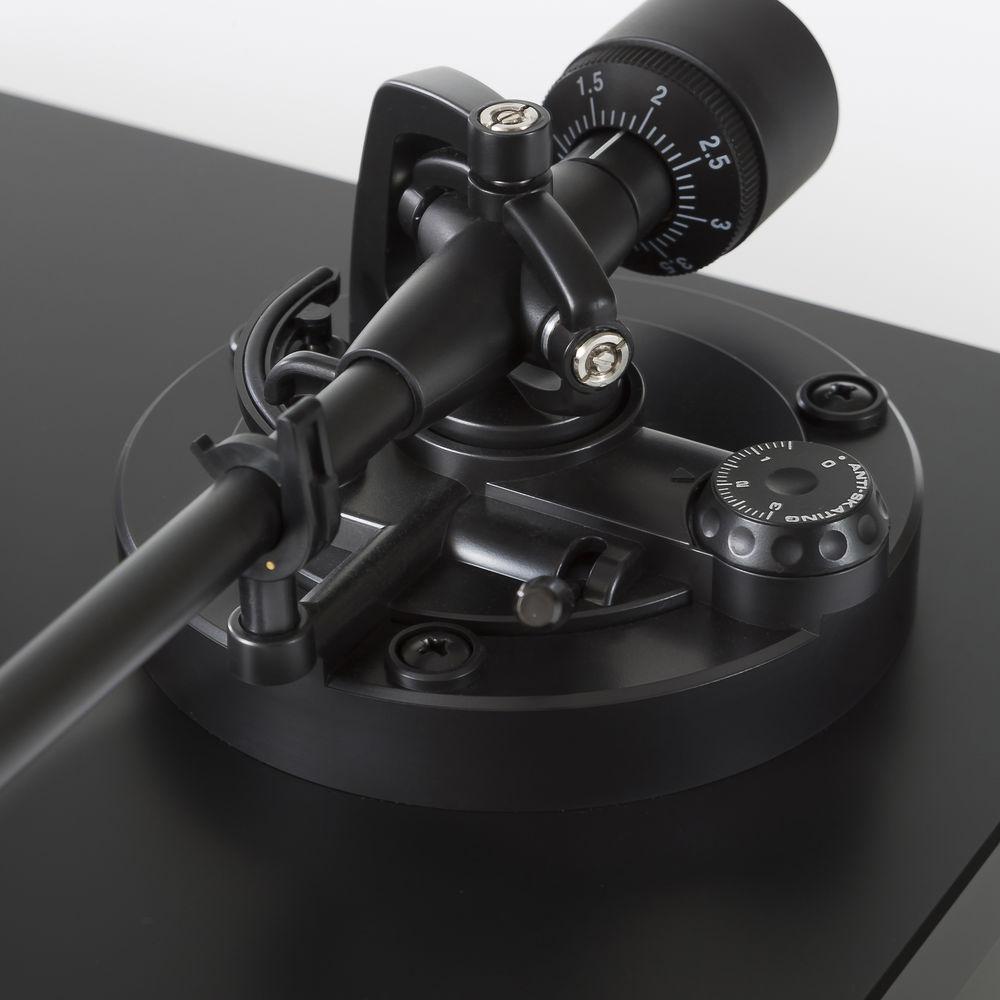

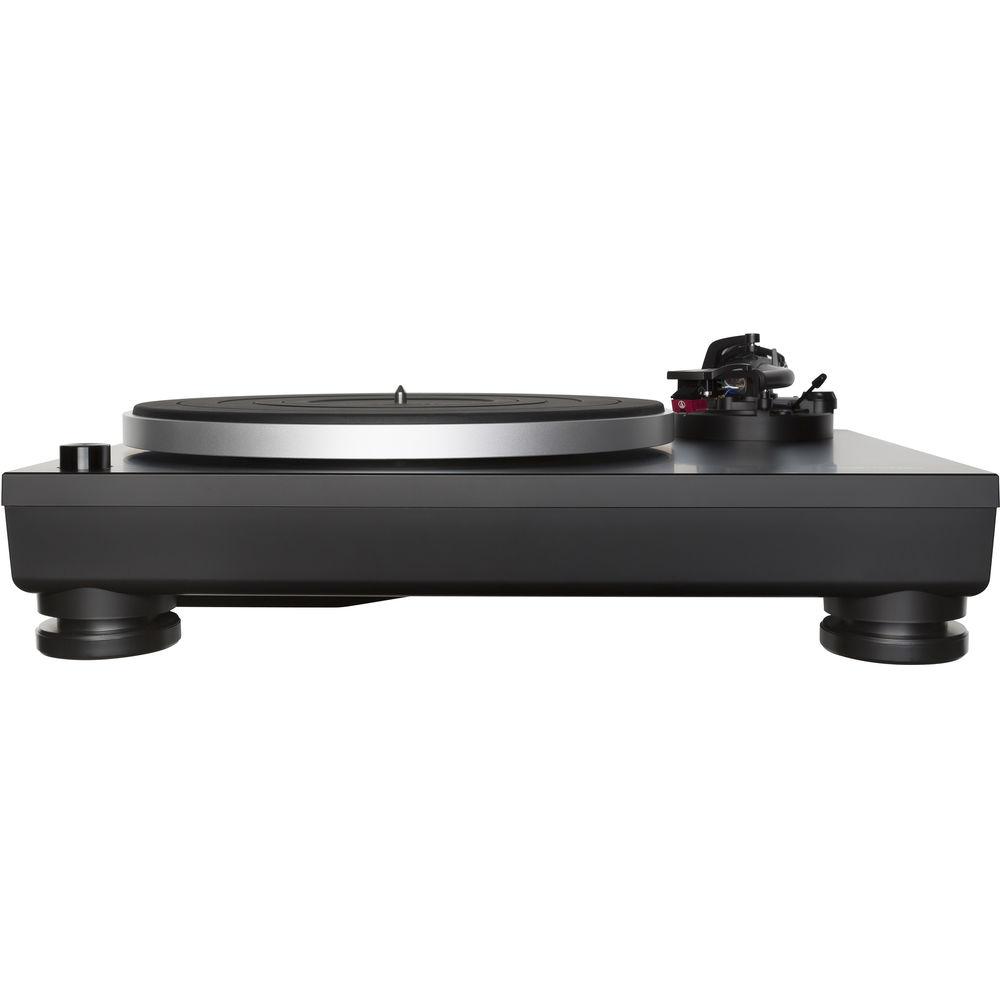

Product description The Audio-Technica AT-LP5 Direct-Drive Turntable combines advanced technology with a sleek, contemporary style for a deck that looks every bit as good as it sounds. The AT-LP5 incorporates a J-shaped tone arm, a design that harks back to the 60's and 70's, and utilizes a metallic gimbals suspension system with precision bearings, which mitigate tracking errors. The turntable also features an adjustable counterweight, anti-skate control, and comes outfitted with a lightweight AT-HS10 headshell and high-performance AT95EX dual moving magnet stereo cartridge that was specifically designed for this turntable.
Constructed from anti-vibration damping materials with heavy-mass metal chassis inserts, the AT-LP5 limits low-frequency acoustical feedback, while the precision-machined, die-cast aluminum platter is powered by a direct-drive, high-torque motor, ensuring stable, on-axis rotation at 33-1/3 or 45 RPM. The unit features a built-in switchable phono/line preamp that allows it to be connected directly to a computer, home stereo, powered speakers, or any other device without a phono preamp. Additionally, the turntable offers a USB output for direct connection to a computer with compatibility with Windows and Mac OS operating systems. The AT-LP5 ships with dual RCA cable with grounding wire, a 45 RPM adapter, USB cable, power cord, dust cover, and Audacity recording software. -
- Direct-drive, high-torque motor
- Fully manual operation with two speeds: 33-1/3 and 45 RPM
- Exclusive AT95Ex dual moving magnet stereo cartridge with replaceable stylus
- Lightweight AT-HS10 headshell
- J-shaped tonearm, modeled after original Audio-Technica designs from the 1960s and ’70s, is engineered to minimize tracking errors
- Adjustable counterweight
- Anti-skate adjustment
- Tonearm lift with hydraulic action and lift lever
- Tonearm rest with locking mechanism
- Switchable built-in pre-amplifier enables connection to components with or without a dedicated phono input
- Anti-resonance, die-cast aluminum platter
- Heavy rubber damping mat for improved low-frequency reproduction
- Sleek, matte black finish
- Adjustable feet for leveling
- Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, USB cable, and Audacity recording software for MAC or PC
- Included dust cover and mounting hardware
In the Box Audio-Technica Consumer AT-LP5 Direct-Drive Turntable (USB & Analog) Rubber Slip Mat Dust Cover with Mounting Hardware Platter Counterweight AT-HS10 Headshell AT95EX Cartridge Power Cord USB Cable Dual RCA to RCA with Ground Wire Audacity Installation CD Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer AT-LP5 Direct-Drive Turntable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Consumer AT-LP5 Specs | | | Type | 2-speed, fully manual operation | | Motor | Drive method: Direct-drive | | Speeds | 33-1/3 and 45 RPM | | Turntable | Platter: Die-cast aluminum | | Torque | >1.6 kgf.cm | | Brake | Electronic brake | | Wow and Flutter | <0.2% WRMS (33 RPM) | | Signal-to-Noise Ratio | >50 dB | | Output Level | Pre-Amp "Phono": 4 mV nominal at 1 kHz, 5 cm/sec
Pre-Amp "Line": 150 mV nominal at 1 kHz, 5 cm/sec | | Preamp Overall Gain | Phono Pre-Amp Gain: 36 dB nominal, RIAA equalized | | USB | A/D, D/A - 16 bit 44.1 kHz or 48 kHz USB selectable;
Computer interface - USB 2.0 compliant Windows XP, Vista or MAC OS X | | | | Type | Static balance J-shaped tonearm | | Length | 9.7" / 247.0 mm | | Overhang | 0.7" / 17.0 mm | | Tracking Error Angle | Less than 2.5° | | Stylus | Stylus Pressure Adjustment Range: 0 to 0.1 oz / 2.5 g | | Cartridge Weight | Applicable Cartridge Weight Range (including headshell): 0.5 oz / 15.0 g to 0.7 oz / 20.0 g | | | | Model | AT95EX | | Type | VM design stereo dual moving magnet | | Recommended Load Impedance | 47 kOhms | | Output Voltage | 4 mV (at 1 kHz, 5 cm/sec) | | Stylus | 0.3 x 0.7 mil elliptical | | Tracking Force | 0.1 oz / 1.5 g to 0.1 oz / 2.5 g (standard 0.1 oz / 2.0 g) | | Cartridge Weight | (AT95Ex) 0.2 oz / 5.7 g | | Headshell | Headshell Model: AT-HS10
Headshell Weight: 0.4 oz / 10.0 g
Headshell Overhang Adjustment: ±0.2" / 5.0 mm | | | | Power Supply | 120 VAC, 60 Hz
11 W | | Dimensions (WxDxH) | 17.7 x 13.9 x 6.1" / 450.1 x 352.0 x 154.9 mm | | Weight | Turntable: 23.1 lb / 10.5 kg | | | | Package Weight | 24.05 lb | | Box Dimensions (LxWxH) | 20.7 x 17.7 x 9.6" |
