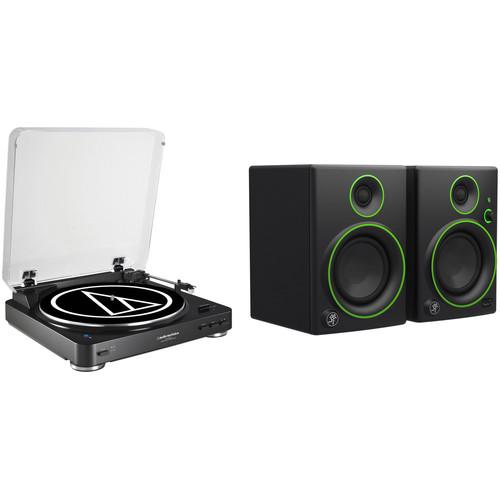

User Manual for Audio-Technica Consumer AT-LP60BK-BT Turntable and Powered Speakers Kit Click to enlarge the picture
Contents of the user manual for the Audio-Technica Consumer AT-LP60BK-BT Turntable and Powered
- Product category: Turntables Audio-Technica Consumer
- Brand: Audio-Technica Consumer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Consumer Turntables
|
User manual for the Audio-Technica Consumer AT-LP60BK-BT Turntable and Powered contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica Consumer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica Consumer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica Consumer product will considerably shorten its lifespan!
|
Product description Enjoy your favorite 33 1/3 and 45 rpm vinyl records almost instantly with this Kit that includes the black Audio-Technica AT-LP60BK-BT Turntable and the Mackie CR4BT 4" Multimedia Monitors. The turntable will start the platter once the tonearm is lifted and stop the platter when the tonearm is returned to its mount. You can connect the speakers to the turntable via the stereo RCA inputs or Bluetooth.
The CR4BT speakers are powered, so you can simply plug them in and connect them to the turntable or whatever other source you want with their 1/4", 1/8", or RCA jacks. They feature a bass-reflex design with rear-facing bass ports to enhance the low-frequency effects of the 4" polypropylene-coated woofer, while highs are produced with the 0.75" silk dome tweeter. Conveniently, all the inputs are located on one speaker, which can be designated as either left or right via a rear-mounted switch, and that speaker has a stereo spring-clip output to the other speaker. - Audio-Technica Consumer AT-LP60BK-BT Turntable with Bluetooth (Black) Enjoy your vinyl records with your favorite speaker system and the black Audio-Technica AT-LP60BK-BT Turntable. It features line and phono outputs to connect to any type of wired system plus Bluetooth to pair with a wireless speaker setup. Its fully automatic operation starts the platter when the tone arm is lifted and brakes when the needle is positioned on its mount. The AT-LP60BK offers 33-1/3 and 45 rpm playback speeds and includes a replaceable stylus.
- Connects wirelessly to speakers and other devices equipped with Bluetooth wireless technology or to wired audio systems and powered speakers via the included dual RCA output cable
- Fully automatic operation with two speeds: 33-1/3 and 45 rpm
- Anti-resonance, die-cast aluminum platter
- Integral Dual Moving Magnet phono cartridge with replaceable stylus
- Switchable built-in pre-amplifier enables wired connection to components with or without a dedicated turntable input
UPC: 042005187683 - Mackie CR4BT - 4" Multimedia Monitors with Bluetooth (Pair) Compact and portable at 12 lb, this pair of 50W CR4BT Multimedia Monitors from Mackie provides audio playback in home and studio environments. As such, they are useful for mixing music or post-production sound, and they boast Bluetooth capability to boot.
The pair consists of one Class AB amplifier-powered monitor and a passive un-powered monitor that you can connect with an included stereo cable. For the low-end, these speakers utilize 4" polypropylene-coated woofers and a rear port tube, while the highs are handled by 0.75" silk dome tweeters; all of this ensures a frequency response of 70 to 20,000 Hz with a maximum SPL of 100 dB.
A switch allows you to select whether the powered speaker will function as the left or right monitor. This is particularly helpful when you must position the speakers near power outlets, or when you have to decide whether you'd rather have your front-panel volume knob situated on your left or right. Also adorning the monitor's front are an LED (indicating whether or not your monitors are on at any given time) and a dedicated headphone output (for private listening; please note that plugging your headphones in will silence the monitors themselves).
You can connect mobile devices and other devices directly to the monitors via 3.5mm, 1/4", or RCA inputs—but then again, feel free to skip all that and just go with Bluetooth. The monitors also come with isolation pads for reducing the transmission of structural vibrations. -
- 50W peak, 28W RMS
- RCA, 3.5mm, and 1/4" TRS balanced and unbalanced inputs
- Supports Bluetooth and stereo headphones
- Lightweight at 12 lb
- Switchable L/R configuration for convenience
- On-board volume knob
- Wood cabinet
- Multiple necessary cables included
- Acoustic isolation pads included
UPC: 663961048285 In the Box - AT-LP60BK-BT Turntable with Bluetooth (Black) zbxrsdeffxqwaazazuzdufyvzzbuz
- 1/8" Male Stereo Mini-Plug to Dual RCA Male Output Cable
- 45 rpm Adapter
- Hinged Dust Cover
- Limited 1-Year Warranty
- Mackie - CR4BT - 4" Multimedia Monitors with Bluetooth (Pair)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer AT-LP60BK-BT Turntable and Powered Speakers Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Audio-Technica Consumer AT-LP60BK-BT Turntable with Bluetooth (Black)
| | | Speeds | 33-1/3 rpm, 45 rpm | | Motor | Fully automatic belt drive | | Drive Mechanism | DC servo-controlled | | Stylus | Replacement Stylus: ATN3600L | | Turntable Platter | Aluminum | | Signal to Noise Ratio | >50 dB (DIN-B) | | Wow and Flutter | Less than 0.25% (WTD) @ 3kHz (JIS) | | Preamp Overall Gain | 36 dB nominal, RIAA-equalized | | Connectors | RCA Phono and RCA Line (preamplifier) | | Output Level | Pre-Amp "PHONO": 2.5 mV nominal at 1 kHz, 5 cm/sec
Pre-Amp "LINE": 150 mV nominal at 1 kHz, 5 cm/sec | | | | Bluetooth | Version 3.0, specification power class 2 | | Bluetooth Range | Approximately 30' (10 m) with line-of-sight | | Support | A2DP, SBC | | | | Power Requirement | 120V AC, 60 Hz, 3W | | Dimensions (W x H x D) | 14.17 x 3.84 x 14.02" (360.0 x 97.5 x 356.0 mm) | | Weight | 6.6 lbs (2.98 kg) | | | | Box Dimensions (LxWxH) | 17.5 x 15.75 x 5.8" | - Mackie CR4BT - 4" Multimedia Monitors with Bluetooth (Pair)
| Frequency Response | 70 Hz to 20 kHz at -3 dB
60 Hz to 20 kHz at -10 dB | | Maximum SPL | 100 dB | | Crossover Frequency | 3 kHz | | Low Frequency Transducer | 4.0" / 102 mm polypropylene-coated woofer | | High Frequency Transducer | 0.75" / 19 mm silk dome tweeter | | Amplifier (Power) | 28 W RMS / 50 W Peak | | Class | AB | | Input Type | Balanced / unbalanced 1/4" TRS, unbalanced RCA (Rear), 1/8" TRS (Front) | | Input Impedance | 20 kOhms balanced bridging
10 kOhms unbalanced | | Output Type | 3.5 mm stereo headphones (front) | | Bluetooth | Bluetooth Protocol: 3.0
Bluetooth Function: Audio streaming | | Enclosure | Solid MDF | | Finish | Black vinyl wrap | | Port Configuration | Custom-tuned rear port tube | | Damping | Adiabatic batting | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Power Requirements | United States: 120 VAC, 60 Hz | | Power Consumption | 72 W with music, loud mix | | Dimensions ( H x D x W) | 8.8 x 6.1 x 7.3" / 224 x 155 x 185 mm | | Weight | 12 lb / 5.4 (pair) | | | | Box Dimensions (LxWxH) | 17.2 x 11.6 x 9.8" |
