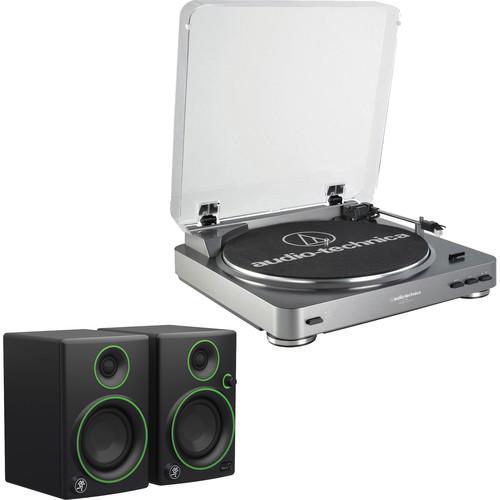

User Manual for Audio-Technica Consumer AT-LP60USB Fully Automatic Belt-Drive Turntable and Powered Speakers Kit Click to enlarge the picture
Contents of the user manual for the Audio-Technica Consumer AT-LP60USB Fully Automatic Belt-Drive
- Product category: Turntables Audio-Technica Consumer
- Brand: Audio-Technica Consumer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Consumer Turntables
|
User manual for the Audio-Technica Consumer AT-LP60USB Fully Automatic Belt-Drive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica Consumer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica Consumer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica Consumer product will considerably shorten its lifespan!
|
Product description Enjoy your favorite 33 1/3 and 45 rpm vinyl records almost instantly with this Kit that includes the silver Audio-Technica AT-LP60USB Fully Automatic Belt-Drive Turntable and the Mackie CR3 3" Woofer Creative Reference Multimedia Monitors. The turntable will start the platter once the tonearm is lifted and stop the platter when the tonearm is returned to its mount. This turntable has both a phono output and line-level outputs, the latter of which would connect to the included Mackie powered speakers.
The CR3 speakers are powered, so you can simply plug them in and connect them to the turntable or whatever other source you want with their 1/4", 1/8", or RCA jacks, all of which are dual mono inputs. They feature a bass-reflex design with rear-facing bass ports to enhance the low-frequency effects of the 3" polypropylene-coated woofer, while highs are produced with the 0.75" silk dome tweeter. Conveniently, all the inputs are located on one speaker, which can be designated as either left or right via a rear-mounted switch, and that speaker has a stereo spring-clip output to the other speaker. - Audio-Technica Consumer AT-LP60USB Fully Automatic Belt-Drive Turntable (Silver)
- AT-LP60-USB Turntable setup
The silver Audio-Technica AT-LP60USB Belt-Drive Turntable is straightforward and completely automatic for vinyl enthusiasts in need of a turntable to complement their existing home-theater and stereo systems. Its fully automatic operation starts the platter when the tone arm is lifted, and brakes when the needle is positioned on its mount. The turntable features phono (turntable level) outputs, however a built-in preamplifier features line-level outputs for connecting to amplifiers without turntable inputs. The ATLP60USB features 33-1/3 and 45 rpm speeds. - The USB output allows you to digitize your vinyl collection directly to software, without an external audio interface
- Fully automatic operation with two speeds: 33-1/3 and 45 rpm
- Professional aluminum platter
- Included cables connect to your stereo or powered speakers
- Integral Dual Magnet phono cartridge with replaceable stylus
- Switchable built-in pre-amplifier with line-level RCA output cables
UPC: 042005159505 - Mackie CR3 3" Woofer Creative Reference Multimedia Monitors (Pair)
- AT-LP60-USB Turntable setup
The Mackie CR3 3" Woofer Creative Reference Multimedia Monitors (Pair) is a compact and portable solution for providing audio playback in home and studio environments. They're designed for multimedia work such as mixing music or post-production sound design. The pair consists of one passive unpowered speaker and one Class-AB amplifier powered speaker that connects with an included 6' stereo cable. The monitors use 3" polypropylene-coated woofers, a rear port tube for the low end, and 0.75" silk dome tweeters for the highs to deliver a frequency response of 80 Hz to 20 kHz with a maximum SPL of 97 dB.
A switch allows you to select whether the powered speaker will function as the left or right speaker. This is helpful when having to position the speakers near power outlets or when deciding which side is preferable for the volume knob. A front-panel, LED power-ring illuminated on/off switch and volume knob allows you to control level. A dedicated front-panel headphone jack defeats the main speaker output and can be used to expand the system's monitoring versatility.
A front panel 3.5mm stereo input and included 3.5mm to 3.5mm cable allows you to connect your smartphone or other mobile device directly to the monitors. Other equipment such as audio interfaces, CD players, or mixers, can be connected to the rear panel's 1/4" TRS, 3.5mm TRS, or RCA inputs.The monitors come with a 3.5mm stereo-to-RCA cable for connecting to a computer. Also included are isolation pads for reducing the transmission of structural vibrations and for allowing the monitors to be tilted slightly up or down for a better listening angle. UPC: 663961044751 In the Box - AT-LP60USB Fully Automatic Belt-Drive Turntable (Silver) sqfzwqfxxvtdwfxcwttfcwxw
- Audacity Software (Mac & Windows)
- Dual RCA Female to 3.5mm (1/8") Mini Male Stereo Adapter Cable
- Dual RCA Female to 3.5mm (1/8") Mini Female Stereo Adapter Cable
- 45 rpm Adapter
- Limited 1-Year Warranty
- Mackie - CR3 3" Woofer Creative Reference Multimedia Monitors (Pair)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer AT-LP60USB Fully Automatic Belt-Drive Turntable and Powered Speakers Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Audio-Technica Consumer AT-LP60USB Fully Automatic Belt-Drive Turntable (Silver)
| | | Speeds | 33-1/3, 45 rpm | | Motor | Belt-Drive | | Drive Mechanism | DC servo-controlled | | Cartridge | Internal | | Stylus | Replacement Stylus: ATN3600L | | Tone Arm | Straight | | Signal to Noise Ratio | >50 dB (DIN-B) | | Wow and Flutter | Less than 0.25% (WTD) @ 3 kHz (JIS) | | Power Output | 120 VAC, 60 Hz, 3 W | | Connectors | RCA Phono and RCA Line (preamplifier) | | Dimensions (WxHxD) | 14.17 x 3.84 x 14.02" (360.0 x 97.5 x 356.0mm) | | Weight | 6.6 lbs (2.98 kg) | | | | Box Dimensions (LxWxH) | 17.6 x 15.9 x 5.8" | - Mackie CR3 3" Woofer Creative Reference Multimedia Monitors (Pair)
| | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Unshielded | | Power Rating | 28 W RMS
50 W Peak | | Drivers | LF Driver: 1 x 3" / 7.62 cm Polypropylene Cone
HF Driver: 1 x 0.75" / 19.05 mm Silk Dome | | Amplification | Full-Range Amplifier: Class-AB Rated at 28 W RMS / 50 W Peak | | | | Frequency Range | 80 Hz to 20 Hz ± 10 dB | | Frequency Response | 70 Hz to 20 kHz ± 3 dB | | Maximum Sound Pressure Level (SPL) | 97 dB Per pair | | Phase Adjustment | None | | | | EQ | None | | Filters | None | | Parametric EQ | None | | | | Crossover Frequency | High-Pass Frequency: 3 kHz
Low-Pass Frequency: 3 kHz | | | | I/O | 1 x 1/4" (6.3 mm) TRS Balanced/Unbalanced Female Analog Input (20 kOhms)
1 x RCA Unbalanced Female Analog Input (10 kOhms)
1 x 1/8" (3.5 mm) TRS Unbalanced Female Analog Input
2 x Push Terminal Unbalanced Female Analog Output
1 x 1/8" (3.5 mm) TRS Unbalanced Female Analog Output | | | | AC Input Power | 120 VAC at 60 Hz | | Power Consumption | 72 W (Typical) | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Enclosure Material | MDF | | Dimensions (W x H x D) | 5.5 x 8.2 x 6.2" / 140.0 x 208.0 x 158.0 mm (Each) | | Weight | 9.0 lb / 4.1 kg (Pair) | | | | Box Dimensions (LxWxH) | 16.0 x 11.0 x 8.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
