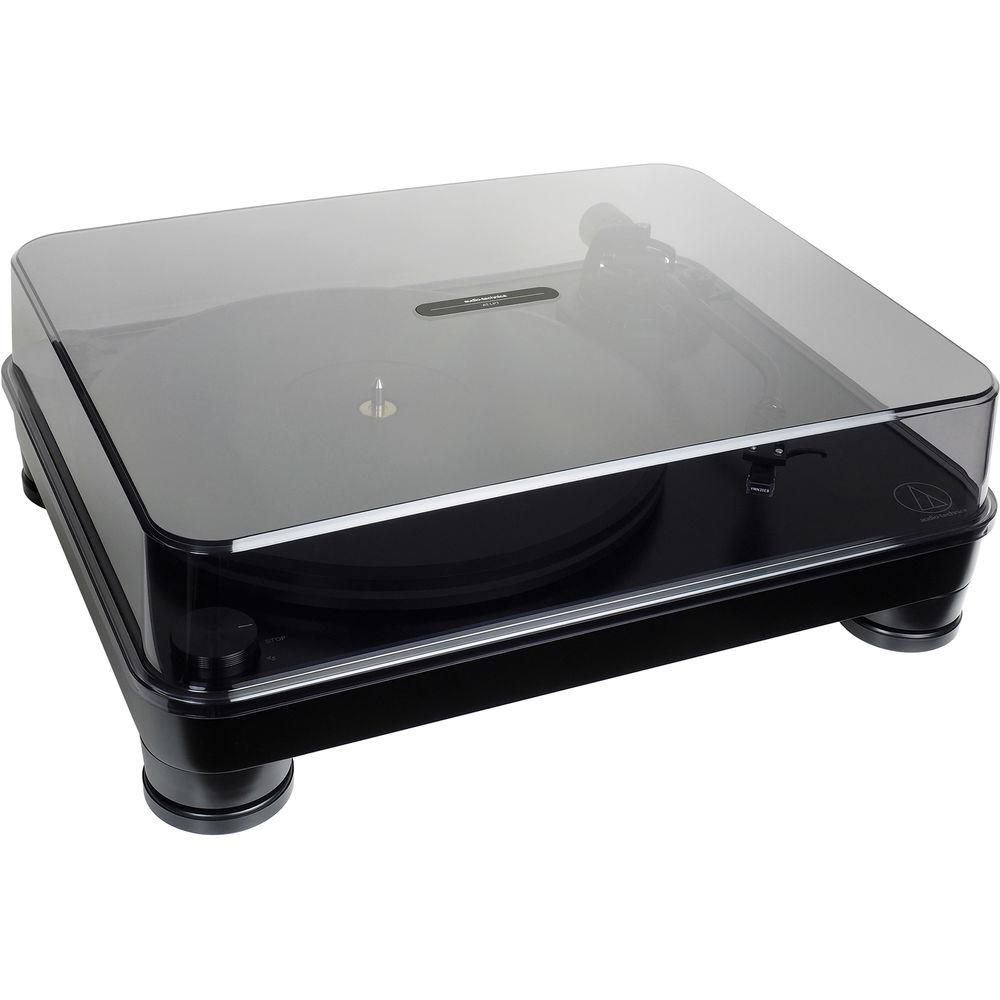

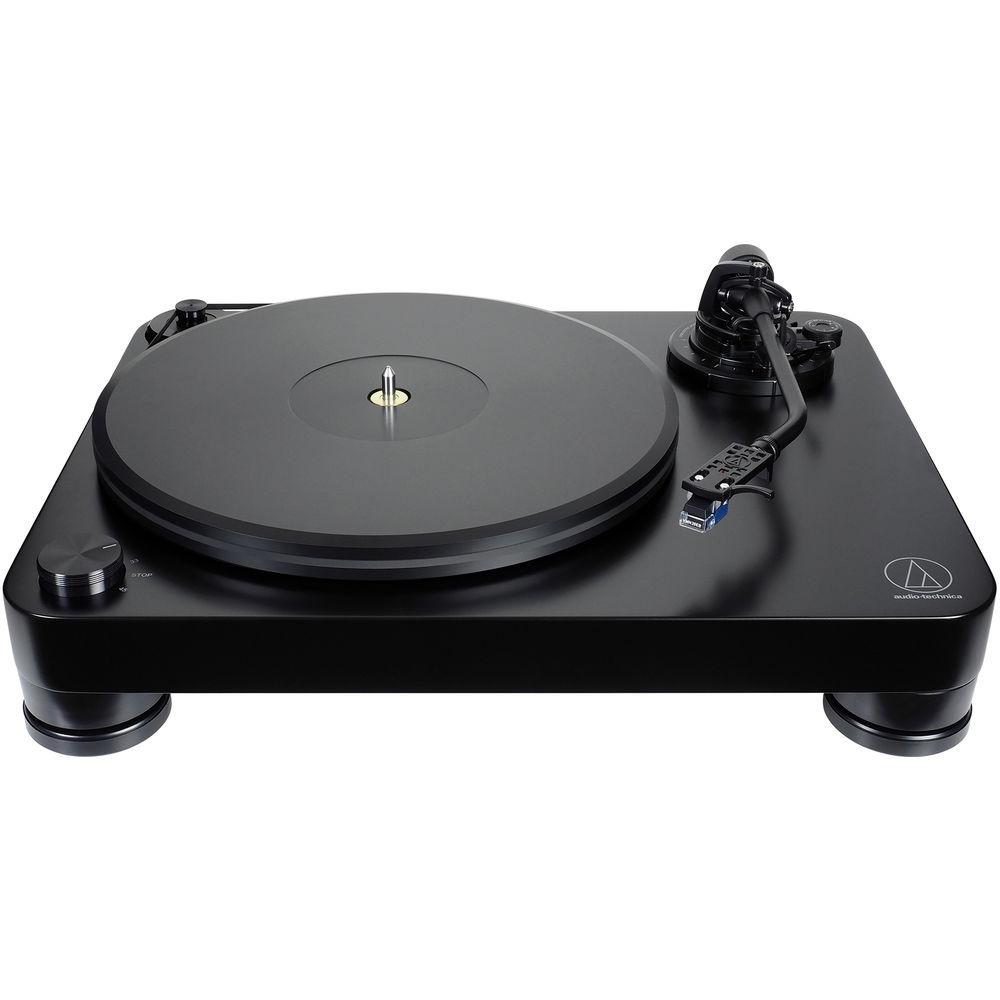

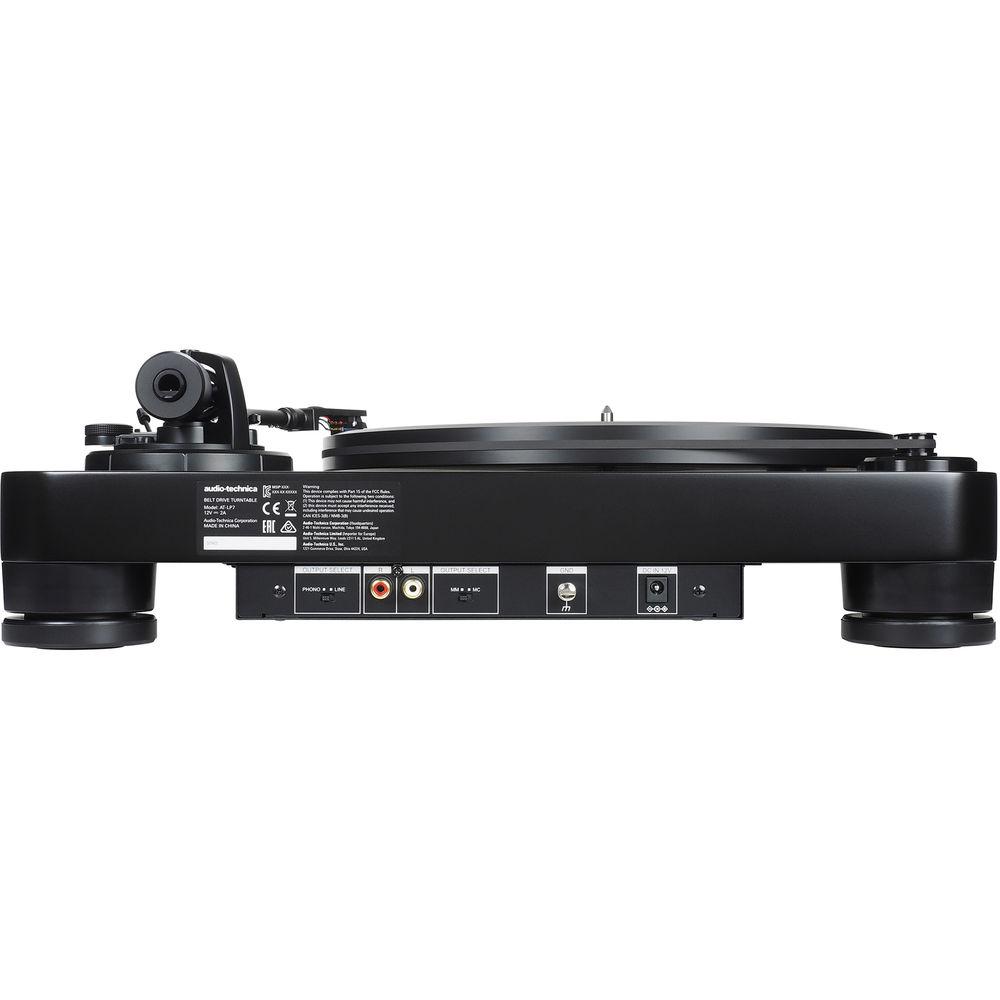

User Manual for Audio-Technica Consumer AT-LP7 Stereo Turntable Click to enlarge the picture
Contents of the user manual for the Audio-Technica Consumer AT-LP7 Stereo Turntable
- Product category: Turntables Audio-Technica Consumer
- Brand: Audio-Technica Consumer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Consumer Turntables
 |
User manual for the Audio-Technica Consumer AT-LP7 Stereo Turntable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica Consumer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica Consumer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica Consumer product will considerably shorten its lifespan!
|
Product description Enjoy your favorite 33 1/3 and 45 rpm vinyl records with your stereo system and the walnut Audio-Technica AT-LP7 Stereo Turntable. It has a built-in switchable preamplifier, allowing you to connect directly to your stereo system or speakers of choice via RCA cables. A removable dust cover, stereo RCA audio cable, and 45 rpm adapter are included. - Fully manual belt-drive operation with 33 1/3 and 45 rpm speeds
- Motor features a speed sensor system to help maintain accurate platter rotation speed
- Dual Moving Magnet cartridge helps provide enhanced channel separation and extended frequency response, and allows for replacement with nearly any VM stylus
- J-shaped tonearm features a metallic gimbal suspension system and precision-designed bearings for augmented tracking
- Built-in switchable preamplifier with selectable modes for moving magnet or moving coil cartridges
- Anti-resonance polyoxymethylene platter
- MDF chassis engineered to dampen vibrations, limiting low-frequency acoustic feedback
In the Box Audio-Technica Consumer AT-LP7 Stereo Turntable 45 rpm Adapter 4.6' Stereo RCA Cable Platter Drive Belt Dust Cover Counterweight Headshell with Cartridge 4.3' AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer AT-LP7 Stereo Turntable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Consumer AT-LP7 Specs | | | Motor | DC | | Drive Method | Belt Drive | | Speeds | 33 1/3, 45 rpm | | Signal to Noise Ratio | >60 dB | | Wow and Flutter | <0.08% WRMS (33 rpm) @ 3 kHz | | Gain | Phono Preamp, MM: 36 dB Nominal, RIAA Equalized
Phono Preamp, MC: 56 dB Nominal, RIAA Equalized | | Output Level | Phono: 4.5 mV Nominal at 1 kHz, 5 cm/sec
Line, MM: 280 mV Nominal at 1 kHz, 5 cm/sec | | Connectors | 1 x Stereo RCA Phono / Line Pair (Switchable Preamplifier) | | | | Tonearm Type | Static-Balanced, J-Shaped | | Length | Tonearm, Effective: 9.72" / 247 mm | | Overhang | 0.67" / 17 mm | | Tracking Error Angle | Maximum: <2.5° | | Stylus Pressure Adjustment | 0 to 2.5 g | | Cartridge Weight | Applicable, Including Headshell: 15 to 20 g | | | | Cartridge | VM520EB | | Cartridge Type | VM Dual Magnet | | Impedance | Recommended: 47 kOhms | | Stylus Cantilever | Aluminum Pipe | | Tracking Force | 1.8 to 2.2 g (Standard 2 g) | | Cartridge Weight | 6.4 g | | Headshell | Model: AT-HS10
Weight: 10 g Excluding Lead Wires
Overhang Adjustment: ±5 mm | | Stylus | Type: 0.3 x 0.7 Mil Elliptical Bonded
Replacement Model: VMN20EB | | | | Construction Material | Platter: Polyoxymethylene
Plinth: MDF
Tonearm: Carbon-Fiber | | Turntable Platter | Thickness: 0.79" / 20 mm | | Chassis | Thickness: 1.58" / 40 mm | | Power Requirements | 100 to 240 VAC, 50/60 Hz, 0.6 A Max | | AC Adapter | 12 V, 2 A | | Power Consumption | 5.5 W | | Dimensions (W x H x D) | 17.72 x 6.18 x 13.86" / 450 x 157 x 352 mm | | Weight | 18.3 lb / 8.3 kg Without Dust Cover | | | | Package Weight | 25.37 lb | | Box Dimensions (LxWxH) | 21.7 x 19.2 x 11.5" |
