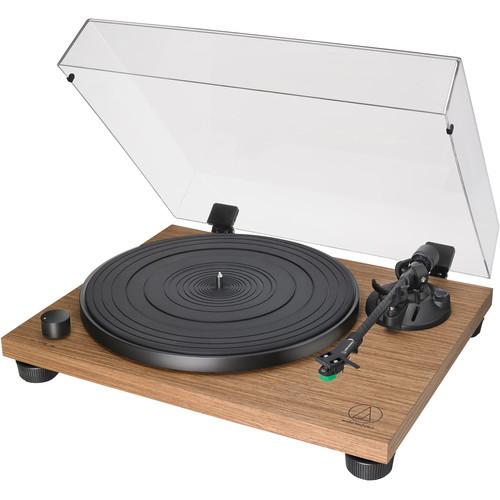

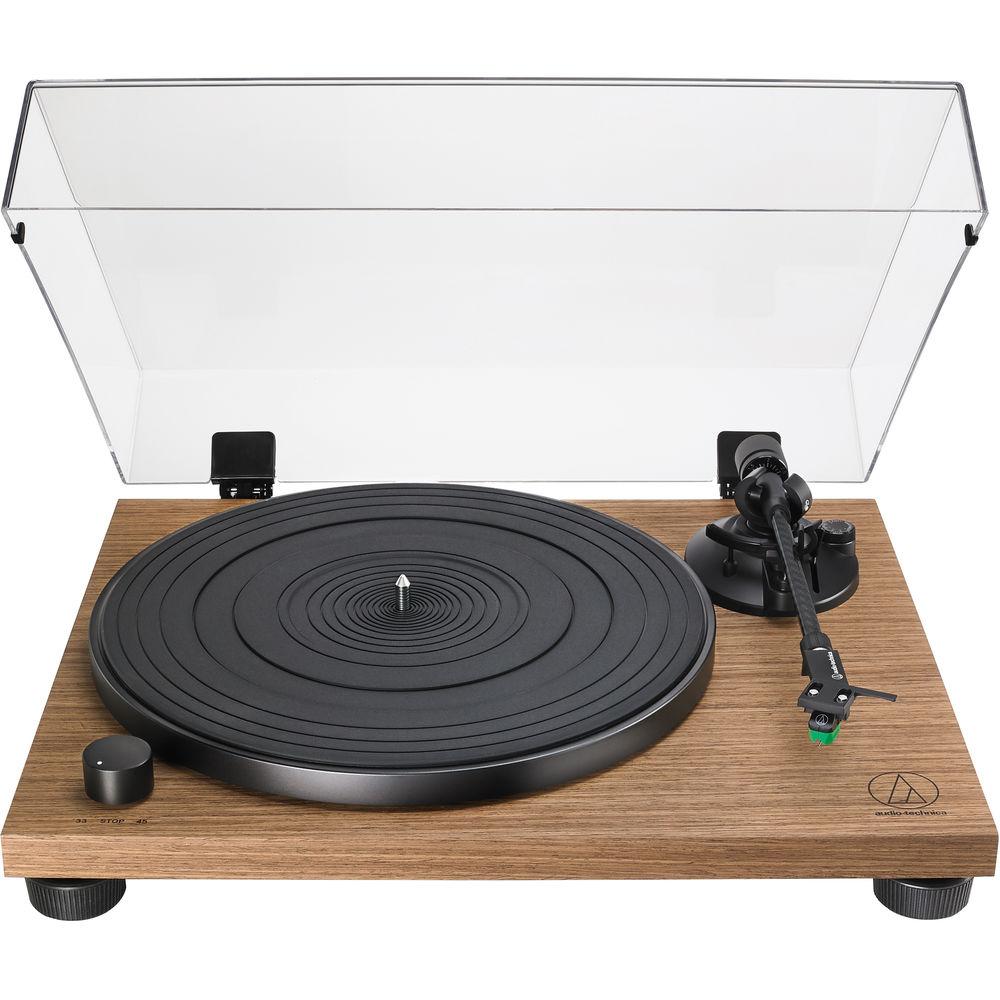

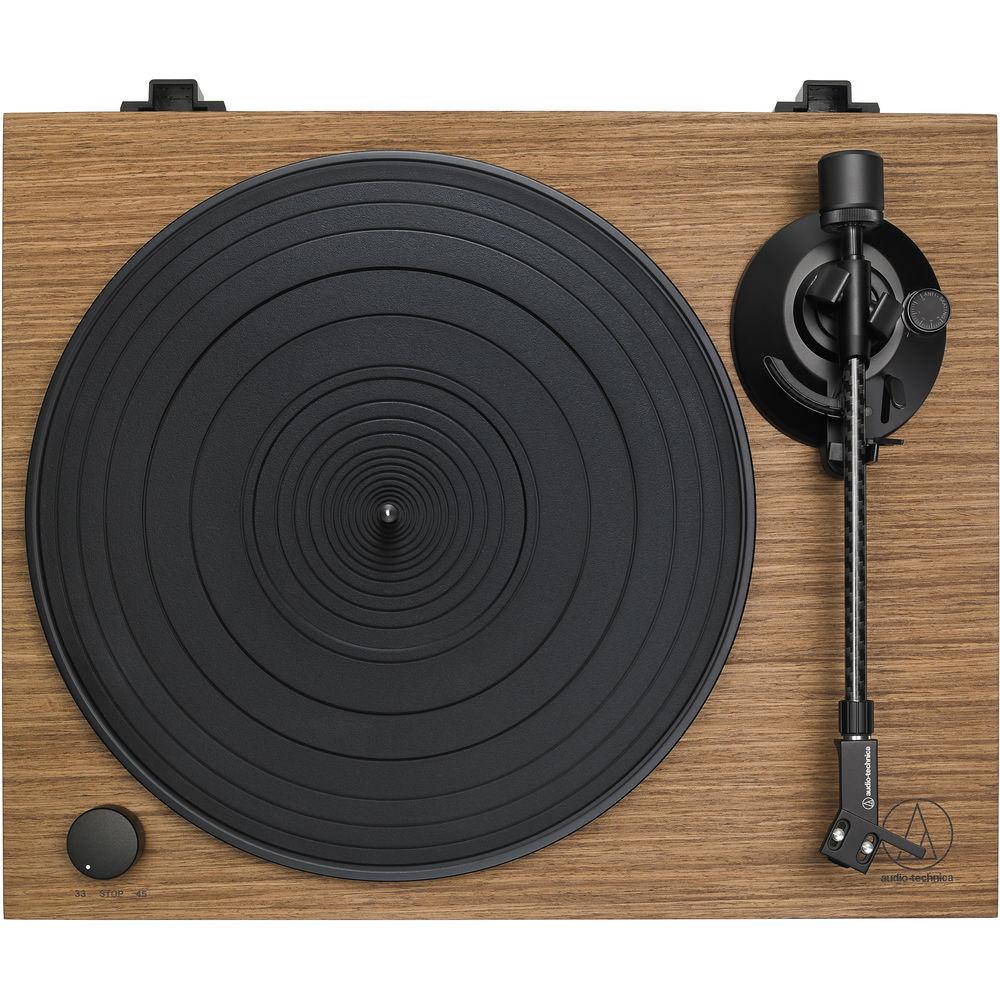

User Manual for Audio-Technica Consumer AT-LPW40WN Stereo Turntable Click to enlarge the picture
Contents of the user manual for the Audio-Technica Consumer AT-LPW40WN Stereo Turntable
- Product category: Turntables Audio-Technica Consumer
- Brand: Audio-Technica Consumer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Consumer Turntables
 |
User manual for the Audio-Technica Consumer AT-LPW40WN Stereo Turntable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica Consumer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica Consumer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica Consumer product will considerably shorten its lifespan!
|
Product description Enjoy your favorite 33 1/3 and 45 rpm vinyl records with your stereo system and the walnut Audio-Technica AT-LPW40WN Stereo Turntable. It has a built-in switchable preamplifier, allowing you to connect directly to your stereo system or speakers of choice via RCA cables. A removable dust cover, RCA audio cable with a ground wire, and 45 rpm adapter are included. - Fully manual belt-drive operation with 33 1/3 and 45 rpm speeds
- Motor features a speed sensor system to help maintain accurate platter rotation speed
- Adjustable dynamic anti-skate control
- Anti-resonance, die-cast aluminum platter with rubber mat
- AT-HS4 universal 1/2" mount headshell and AT-VM95E Dual Moving Magnet phono cartridge with elliptical stylus
- Included cartridge is compatible with nearly any VM95 series replacement stylus
- Straight carbon-fiber tonearm with hydraulically damped lift control and lockable rest
- Anti-resonance plinth with walnut simulated wood veneer
- Switchable built-in preamplifier for phono- or line-level output
- AC adapter handles AC/DC conversion outside the chassis, helping to reduce noise in the signal chain
In the Box Audio-Technica Consumer AT-LPW40WN Stereo Turntable (Walnut) 45 rpm Adapter Stereo RCA Cable with Ground Wire Counterweight Rubber Mat Hinged Dust Cover AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer AT-LPW40WN Stereo Turntable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Consumer AT-LPW40WN Specs | Motor | DC Servo | | Drive Method | Belt Drive | | Speeds | 33 1/3, 45 rpm | | Tonearm Type | Straight | | Effective Arm Length | Tonearm: 8.8" / 223.6 mm | | Overhang | 18.6 mm | | Tracking Error Angle | <2° | | Cartridge Weight | Applicable: 12 to 17 g | | Anti-Skating Range | 0 to 3 g | | Signal to Noise Ratio | >60 dB | | Wow and Flutter | 0.15% (WTD) @ 3 kHz (JIS) | | Headshell | 1/2" Mount | | Stylus | Type: 0.3 x 0.7 Mil Elliptical
Replacement: AT-VMN95E | | Connectors | 1 x Stereo RCA Phono / Line Pair (Switchable Preamplifier) | | Gain | Phono Preamp: 35 dB Nominal, RIAA Equalized | | Output Level | Phono: 4 mV Nominal at 1 kHz, 5 cm/sec
Line: 200 mV Nominal at 1 kHz, 5 cm/sec | | Turntable Platter | Die-Cast Aluminum | | Construction Material | Plinth: MDF
Tonearm: Carbon-Fiber | | Power Requirements | 100 to 240 VAC, 60 Hz | | Power Consumption | 1 W | | Dimensions (W x H x D) | 17.13 x 5.04 x 13.9" / 420 x 116.9 x 340 mm | | Weight | 10.4 lb / 4.7 kg |
