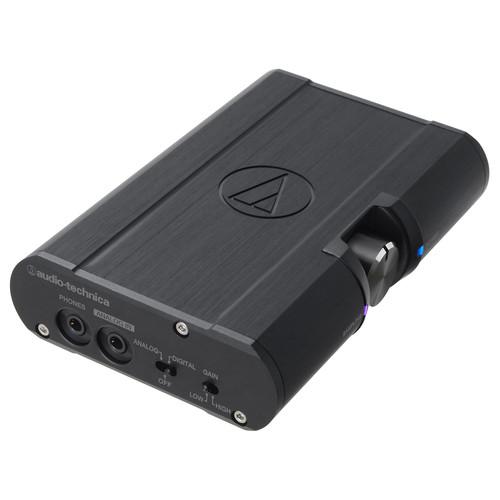

User Manual for Audio-Technica Consumer AT-PHA100 Portable Headphone Amplifier Click to enlarge the picture
Contents of the user manual for the Audio-Technica Consumer AT-PHA100 Portable Headphone Amplifier
- Product category: Headphone Amplifiers Audio-Technica Consumer
- Brand: Audio-Technica Consumer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Consumer Headphone Amplifiers
|
User manual for the Audio-Technica Consumer AT-PHA100 Portable Headphone Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica Consumer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica Consumer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica Consumer product will considerably shorten its lifespan!
|
Product description The AT-PHA100 Portable Headphone Amplifier from Audio-Technica is enclosed in all-aluminum casing to protect the circuitry and is designed to give headphones a rich, detailed boost throughout the sonic range with ultra-low distortion. It is equipped with both analog and digital inputs (1/8" and USB micro-B) and can be connected to several sources to provide better headphone quality for laptops, smartphones, recorders, and more. Featuring a high-/low-gain switch, a machined-aluminum volume knob, and a five-stage sampling indicator for digital input, the headphone amp is compatible with USB 2.0 and uses an internal lithium polymer rechargeable battery for power. It lasts up to 14 hours when amplifying an analog signal and up to 6 hours when amplifying a digital signal. Additionally, it comes with two rubber bands and a rubber mat for strapping the unit to a smartphone or other portable device. Also included are a 3.3' USB to micro-B (2.0) cable and a 3.9" audio cable terminating in a 1/8" gold-plated stereo mini jack on each end. - Specially selected, discrete circuitry enhances the resolution throughout the frequency range
- NJR MUSES 8832 pre-amp delivers rich, powerful sound from low to high frequencies
- DAC ESS ES9018K2M circuit samples 384 kHz / 32-bit PCM, and DSD audio sources at 2.8 / 5.6 MHz
- Texas Instruments LME49720 op-amp suppresses distortion for crystal clear mid to high frequencies
- Internal rechargeable lithium polymer battery lasts up to 14 hours
In the Box Audio-Technica Consumer AT-PHA100 Portable Headphone Amplifier 2 x Rubber Bands Rubber Mat 3.3' USB to Micro-B (2.0) Cable 3.9" 1/8" to 1/8" Audio Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer AT-PHA100 Portable Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Consumer AT-PHA100 Specs | Computer Requirements | PC with built-in USB port corresponding to USB 2.0 | | CPU | Intel Core2 CPU 2.2 GHz or equivalent | | RAM | 32-bit OS 2 GB or more, 64-bit OS 4 GB or more | | Supported Operating Systems | Windows XP (32-bit)*, Windows 7, Windows 8, Windows 8.1
Mac OSX Mavericks (10.9)
* Technical support by Microsoft is no longer available. | | Headphone Impedance | 10 to 300 Ohms | | Maximum Output Level | 100 mW + 100 mW (10% during 16 Ohms, THD)
80 mW + 80 mW (10% during 32 Ohms, THD)
10 mW + 10 mW (10% during 300 Ohms, THD) | | Frequency Characteristics | 10 Hz to 100 kHz (-1 dB) | | Signal to Noise Ratio | 110 dB (A-weighted) | | Total Harmonic Distortion | <=0.001% (32 Ohms 10 mW output) | | Input Connector | Analog: 1/8" (3.5 mm) gold-plated stereo mini-jack | | Digital | USB (micro-B) / asynchronous mode
DSD128 (DoP), DSD 64 (Native / DoP): 24 to 32 bit / PCM 384 kHz, 352.8 kHz, 192 kHz, 176.4 kHz, 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz, 32 kHz: 16 to 32 bit | | Output Connector | 1/8" (3.5 mm) gold-plated stereo mini-jack | | Power Supply | 5 VDC, 500 mA bus power system (PC) / rechargeable lithium polymer battery | | Charging Time | Up to 10 hours (5 VDC, 500 mA) | | Battery Life | Digital about 6 hours (JEITA) / analog about 14 hours (JEITA) | | Operating Temperature | 5 to 40°C (41 to 104°F) | | Dimensions (H x W x D) | 1.1 x 3.0 x 4.6" (27 x 77 x 116 mm) | | Weight | 8.5 oz (240 g) | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 5.7 x 4.5 x 3.1" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 84 owners. Add your rating and experience with the product.
