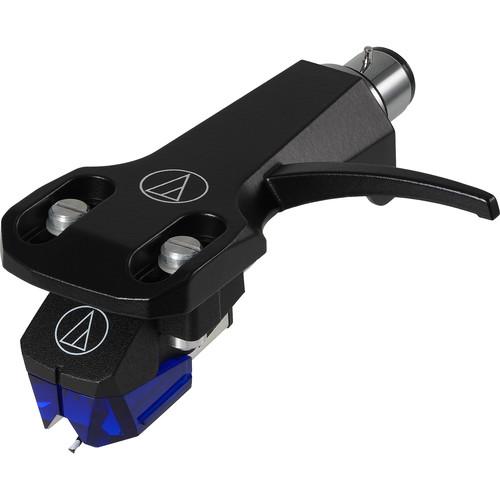

Audio-Technica Consumer AT-VM95C H Headshell and

User Manual for Audio-Technica Consumer AT-VM95C H Headshell and Cartridge Combo Kit

• Product category: Turntable Accessories Audio-Technica Consumer
• Brand: Audio-Technica Consumer
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Audio-Technica Consumer Turntable Accessories

Product description

• AT-XP3 DJ Cartridge The Audio-Technica Consumer AT-XP3 is specially designed for the needs of professional DJs and features a highly rigid polyphenylene sulfide (PPS) / glass fiber body with a tracking force of 2 to 4 grams. The AT-XP3 offers an output level of 5.5mV, while the 0.6mm conical bonded stylus tracks the center of the record groove for reliable performance and high-quality audio reproduction. Additionally, the cartridge is specifically designed to provide maximum visibility of the stylus tip.
  • • 0.6 mil conical bonded stylus tip
    • Highly rigid polyphenylene sulfide (PPS)/glass fiber body
    • 5.5mV high-level output
    • Tracking force of 2 to 4g (3g standard)
    • Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
    • Design offers maximum visibility of the stylus tip
    • Great tracking and channel separation for high-fidelity sound
    • AT-XP3 cartridge is compatible with any XP or VM95 series replacement stylus, offering a wide choice of options for every budget and application
• AT-HS6 9g Headshell Aluminum Die Cast Body (Black) The black Audio-Technica Consumer AT-HS6 is a lightweight (9g) headshell mount. Featuring an aluminum die-cast body, it is designed to keep vibration to the bare minimum. The finger lift is positioned near the front of the headshell to enable precise placement of the stylus onto the record. The headshell is equipped with quad wire terminals and comes with mounting hardware.

• Install Hardware (Four Screws, Two Washers, and Two Nuts)

• Non-Magnetic Screwdriver

• Limited 1-Year Warranty against Defects and Workmanship

• Mounting Hardware

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• AT-XP3 DJ Cartridge

  Frequency Response	20 Hz to 18 kHz
  Channel Separation	20 dB (at 1 kHz)
  Tracking Force	2 to 4 g (3 g Standard)
  Stylus	Stylus Construction: Bonded Round Shank Stylus Shape: 0.6 mm Conical
  Recommended Load Impedance	47 kOhms
  Output	5.5 mV (1 kHz, 5 cm/s)
  Channel Balance	2.0 dB (1 kHz)
  Stylus Cantilever	Carbon Fiber-Reinforced ABS
  Mount	0.5" / 12.7 mm
  Replacement Stylus	ATN-XP3
  Coil Resistance	Coil Impedance: 6.7 kOhms (1 kHz)
  Recommended Load Capacitance	100 to 200 pF
  Vertical Tracking Angle	20°
  Dimensions (H x W x D)	0.7 x 0.7 x 1.1" / 17.2 x 17.8 x 28.3 mm
  Weight	0.2 oz / 6.2 g

  Box Dimensions (LxWxH)	3.2 x 2.9 x 1.2"

• AT-HS6 9g Headshell Aluminum Die Cast Body (Black)

  Material of Construction	Headshell and Connector: Aluminum
  Dimensions (HxWxD)	Not Specified by Manufacturer
  Weight	0.3 oz / 9.0 g

  Box Dimensions (LxWxH)	3.15 x 2.5 x 1.8"
