User Manual for Audio-Technica Consumer AT-VM95E Dual Moving Magnet Cartridge Click to enlarge the picture
Contents of the user manual for the Audio-Technica Consumer AT-VM95E Dual Moving Magnet
- Product category: Turntable Accessories Audio-Technica Consumer
- Brand: Audio-Technica Consumer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Consumer Turntable Accessories
 |
User manual for the Audio-Technica Consumer AT-VM95E Dual Moving Magnet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica Consumer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica Consumer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica Consumer product will considerably shorten its lifespan!
|

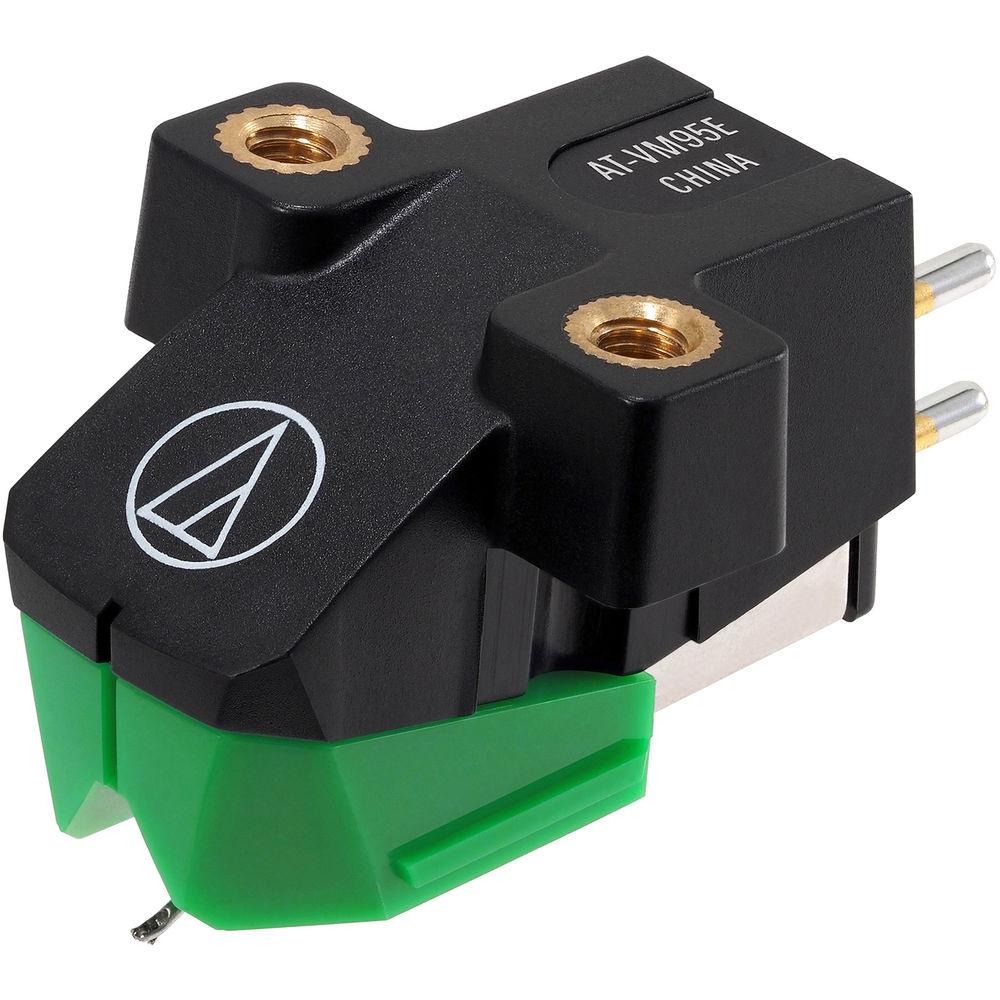

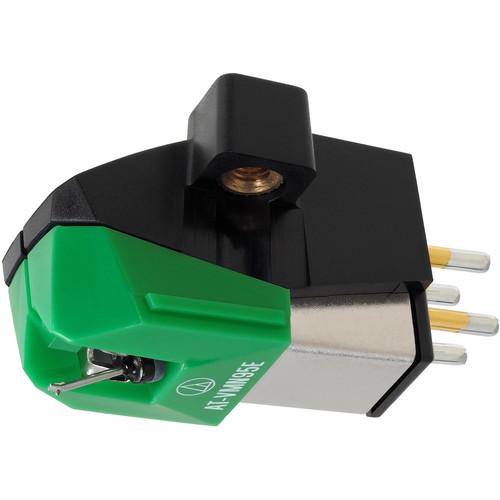

Product description The Audio-Technica Consumer AT-VM95E Dual Moving Magnet Cartridge features a special coil design, which delivers a powerful output level (4.0 mV) with high channel separation and low distortion for remarkable tonal quality. The cartridge can be mounted to a standard 1/2" mount and features integrated threaded inserts, allowing it to be mounted with just two screws (no nuts required). All VM95 Series share the same body, allowing the stylus to be replaced with any of the six interchangeable AT-VMN95 replacement styli. -

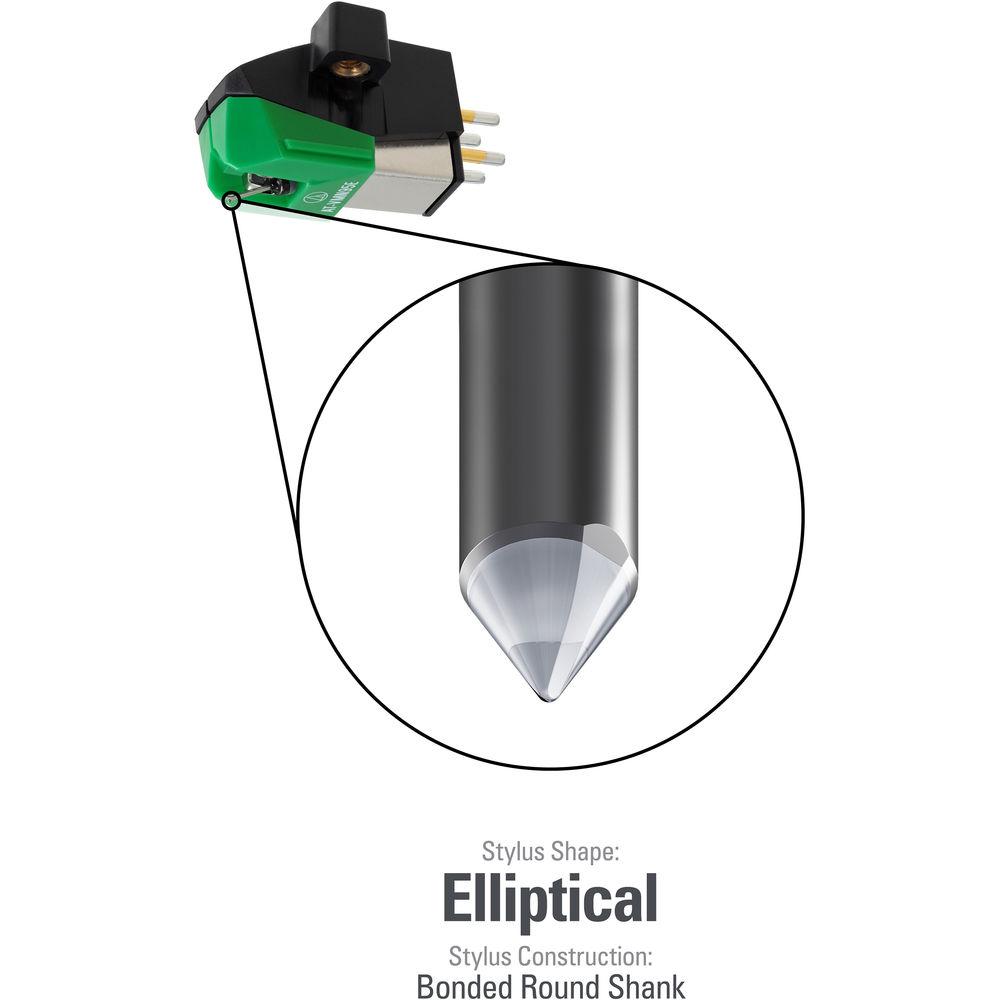

- VM95 Series dual magnet cartridge with 0.3 x 0.7 mil elliptical stylus
- Aluminum cantilever
- Specially wound coils increase output voltage
- Durable low-resonance polymer housing
- Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts required
- Compatible with any AT-VMN95 replacement stylus

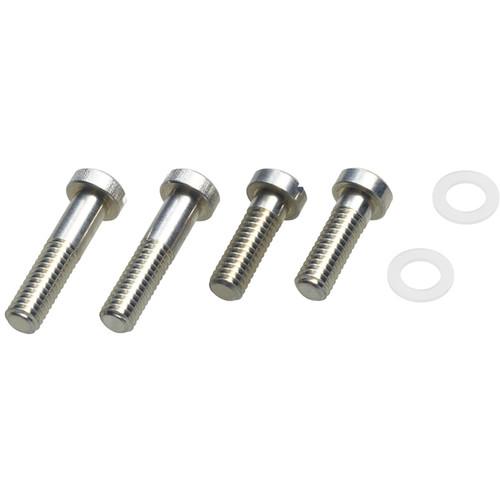

In the Box Audio-Technica Consumer AT-VM95E Dual Moving Magnet Cartridge Set of Mounting Hardware (4 x Screws and 2 x Washers) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer AT-VM95E Dual Moving Magnet Cartridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Consumer AT-VM95E Specs | Frequency Response | 20 Hz to 22 kHz | | Channel Separation | 20 (dB at 1 kHz) | | Tracking Force | 1.8 to 2.2 g (2.0 g Standard) | | Recommended Load Impedance | 47 kOhms | | Output | 4.0 mV (1 kHz, 5 cm/sec.) | | Channel Balance | 2.0 dB (1 kHz) | | Stylus Type | Bonded Round Shank | | Stylus Cantilever | Aluminum Pipe | | Mount | 0.5" / 1.27 cm | | Replacement Stylus | AT-VMN95C | | Impedance | Coil Impedance: 3.3 kOhms (1 kHz) | | DC Resistance | 485 Ohms | | Load Capacitance | 100 to 200 pF | | Coil Inductance (Le) | 550 mH (1 kHz) | | Vertical Tracking Angle | 23° | | Dimensions | 0.7 x 0.7 x 1.1" / 17.2 x 18.9 x 28.3 mm | | Weight | 0.2 oz / 6.1 g | | | | Package Weight | 0.085 lb | | Box Dimensions (LxWxH) | 3.0 x 2.9 x 1.2" |
