Product description

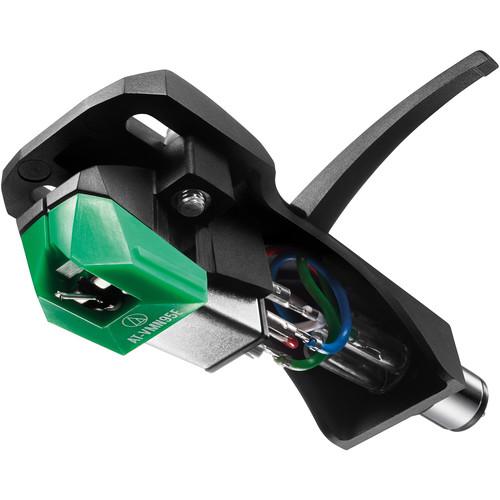

• AT-VM95E Dual Moving Magnet Cartridge The Audio-Technica Consumer AT-VM95E Dual Moving Magnet Cartridge features a special coil design, which delivers a powerful output level (4.0 mV) with high channel separation and low distortion for remarkable tonal quality. The cartridge can be mounted to a standard 1/2" mount and features integrated threaded inserts, allowing it to be mounted with just two screws (no nuts required). All VM95 Series share the same body, allowing the stylus to be replaced with any of the six interchangeable AT-VMN95 replacement styli.
  • • VM95 Series dual magnet cartridge with 0.3 x 0.7 mil elliptical stylus
    • Aluminum cantilever
    • Specially wound coils increase output voltage
    • Durable low-resonance polymer housing
    • Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts required
    • Compatible with any AT-VMN95 replacement stylus
• AT-HS6 9g Headshell Aluminum Die Cast Body (Black) The black Audio-Technica Consumer AT-HS6 is a lightweight (9g) headshell mount. Featuring an aluminum die-cast body, it is designed to keep vibration to the bare minimum. The finger lift is positioned near the front of the headshell to enable precise placement of the stylus onto the record. The headshell is equipped with quad wire terminals and comes with mounting hardware.

• Set of Mounting Hardware (4 x Screws and 2 x Washers)

• Limited 1-Year Warranty

• Mounting Hardware

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: User manual for Audio-Technica Consumer AT-VM95E H Cartridge and Headshell Combo Kit can be downloaded below, so the upload option is not active. OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0% User manual for Audio-Technica Consumer AT-VM95E H Cartridge and Headshell Combo Kit can be downloaded below, so the upload option is not active.

Download User Manual

Download PDF User Manual - https://www.search-manual.com/ upload/ audio-technica-consumer-at-vm95e-h-cartridge-and-headshell-combo-kit-359501-user-manual.pdf (PDF file, 3.28 MB)

Technical parameters

• AT-VM95E Dual Moving Magnet Cartridge

  Frequency Response	20 Hz to 22 kHz
  Channel Separation	20 (dB at 1 kHz)
  Tracking Force	1.8 to 2.2 g (2.0 g Standard)
  Recommended Load Impedance	47 kOhms
  Output	4.0 mV (1 kHz, 5 cm/sec.)
  Channel Balance	2.0 dB (1 kHz)
  Stylus Type	Bonded Round Shank
  Stylus Cantilever	Aluminum Pipe
  Mount	0.5" / 1.27 cm
  Replacement Stylus	AT-VMN95C
  Impedance	Coil Impedance: 3.3 kOhms (1 kHz)
  DC Resistance	485 Ohms
  Load Capacitance	100 to 200 pF
  Coil Inductance (Le)	550 mH (1 kHz)
  Vertical Tracking Angle	23°
  Dimensions	0.7 x 0.7 x 1.1" / 17.2 x 18.9 x 28.3 mm
  Weight	0.2 oz / 6.1 g

  Box Dimensions (LxWxH)	3.0 x 2.9 x 1.2"

• AT-HS6 9g Headshell Aluminum Die Cast Body (Black)

  Material of Construction	Headshell and Connector: Aluminum
  Dimensions (HxWxD)	Not Specified by Manufacturer
  Weight	0.3 oz / 9.0 g

  Box Dimensions (LxWxH)	3.15 x 2.5 x 1.8"
