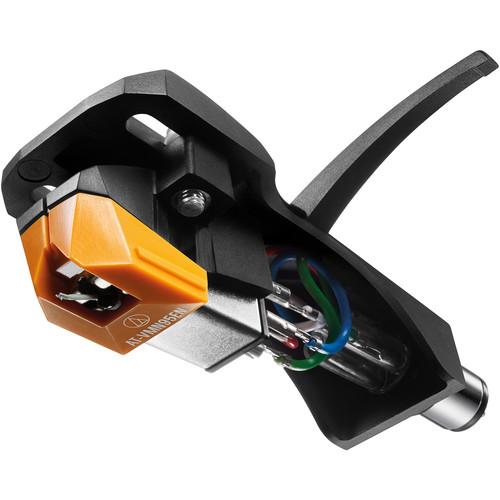

User Manual for Audio-Technica Consumer AT-VM95EN H Headshell and Cartridge Combo Kit Click to enlarge the picture
Contents of the user manual for the Audio-Technica Consumer AT-VM95EN H Headshell and
- Product category: Turntable Accessories Audio-Technica Consumer
- Brand: Audio-Technica Consumer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Consumer Turntable Accessories
|
User manual for the Audio-Technica Consumer AT-VM95EN H Headshell and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica Consumer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica Consumer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica Consumer product will considerably shorten its lifespan!
|
Product description The Audio Technica Consumer AT-VM95EN/H is a kit that pre-mounts the AT-VM95EN dual moving magnet cartridge on to the AT-HS6BK headshell. - AT-VM95EN Dual Moving Magnet Cartridge The Audio-Technica Consumer AT-VM95EN Dual Moving Magnet Cartridge offers high channel separation and low distortion for remarkable tonal quality. The cartridge can be mounted to a standard 1/2" mount and features integrated threaded inserts, allowing it to be mounted with just two screws (no nuts required). All VM95 Series share the same body, allowing the stylus to be replaced with any of the six interchangeable AT-VMN95 replacement styli.
-
- VM95 Series dual magnet cartridge with 0.3 x 0.7 mil elliptical nude stylus
- Aluminum cantilever
- Durable low-resonance polymer housing
- Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws—no nuts required
- Compatible with any AT-VMN95 replacement stylus
- AT-HS6 9g Headshell Aluminum Die Cast Body (Black) The black Audio-Technica Consumer AT-HS6 is a lightweight (9g) headshell mount. Featuring an aluminum die-cast body, it is designed to keep vibration to the bare minimum. The finger lift is positioned near the front of the headshell to enable precise placement of the stylus onto the record. The headshell is equipped with quad wire terminals and comes with mounting hardware.
In the Box Bundle Items AT-VM95EN Dual Moving Magnet Cartridge xdfyudyyrevtxeabbzwqsytewb - Set of Mounting Hardware (4 x Screws and 2 x Washers)
AT-HS6 9g Headshell Aluminum Die Cast Body (Black) Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer AT-VM95EN H Headshell and Cartridge Combo Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - AT-VM95EN Dual Moving Magnet Cartridge
| Frequency Response | 20 Hz to 23 kHz | | Channel Separation | 22 (dB at 1 kHz) | | Tracking Force | 1.8 to 2.2 g (2.0 g Standard) | | Recommended Load Impedance | 47 kOhms | | Output | 3.5 mV (1 kHz, 5 cm/sec.) | | Channel Balance | 2.0 dB (1 kHz) | | Stylus Type | 0.3 x 0.7 mm Elliptical | | Stylus Cantilever | Aluminum Pipe | | Mount | 0.5" / 1.27 cm | | Replacement Stylus | AT-VMN95EN | | Impedance | Coil Impedance: 3.3 kOhms (1 kHz) | | DC Resistance | 485 Ohms | | Load Capacitance | 100 to 200 pF | | Coil Inductance (Le) | 550 mH (1 kHz) | | Vertical Tracking Angle | 23° | | Dimensions | 0.7 x 0.7 x 1.1" / 17.2 x 18.9 x 28.3 mm | | Weight | 0.2 oz / 6.1 g | | | | Box Dimensions (LxWxH) | 3.9 x 2.8 x 1.2" | - AT-HS6 9g Headshell Aluminum Die Cast Body (Black)
| Material of Construction | Headshell and Connector: Aluminum | | Dimensions (HxWxD) | Not Specified by Manufacturer | | Weight | 0.3 oz / 9.0 g | | | | Box Dimensions (LxWxH) | 3.15 x 2.5 x 1.8" |
