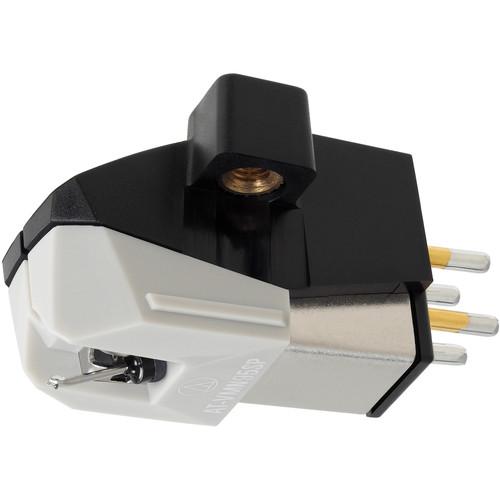

Product description The Audio-Technica Consumer AT-VM95SP Dual Moving Magnet Cartridge is specifically designed to play 78 RPM mono records with remarkable tonal quality. The cartridge can be mounted to a standard 1/2" mount and features integrated threaded inserts, allowing it to be mounted with just two screws (no nuts required).

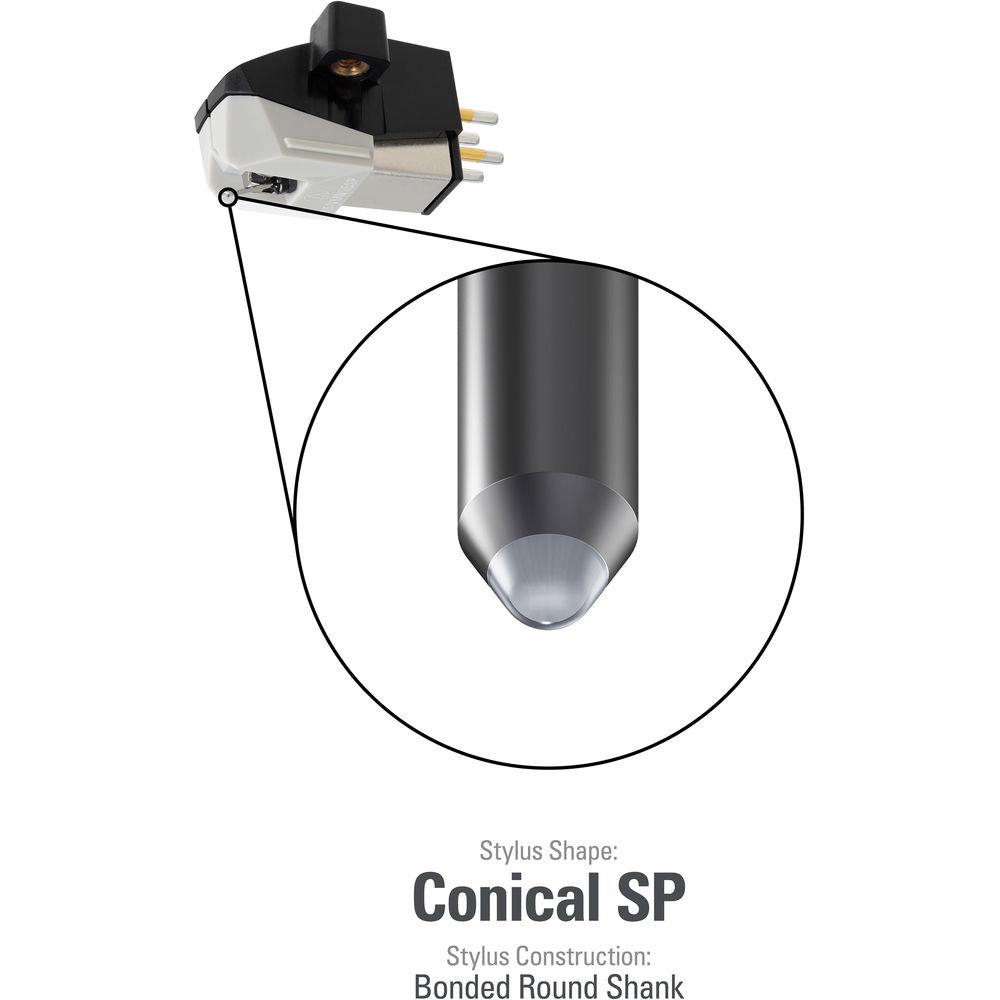

The conical stylus has a spherical tip, which normally touches the center of the record groove walls. This design is well suited for older players with higher tonearm tracking forces. The cartridge is stereo, allowing users to choose between the left and right channels, which can be especially helpful in archiving applications to minimize noise and distortion. All VM95 Series share the same body, allowing the stylus to be replaced with any of the six interchangeable AT-VMN95 replacement styli. The Audio-Technica Consumer AT-VM95SP ships with mounting hardware. -
- VM95 Series dual-magnet cartridge with 3.0 mil conical stylus for 78 RPM records
- Aluminum cantilever
- Durable low-resonance polymer housing

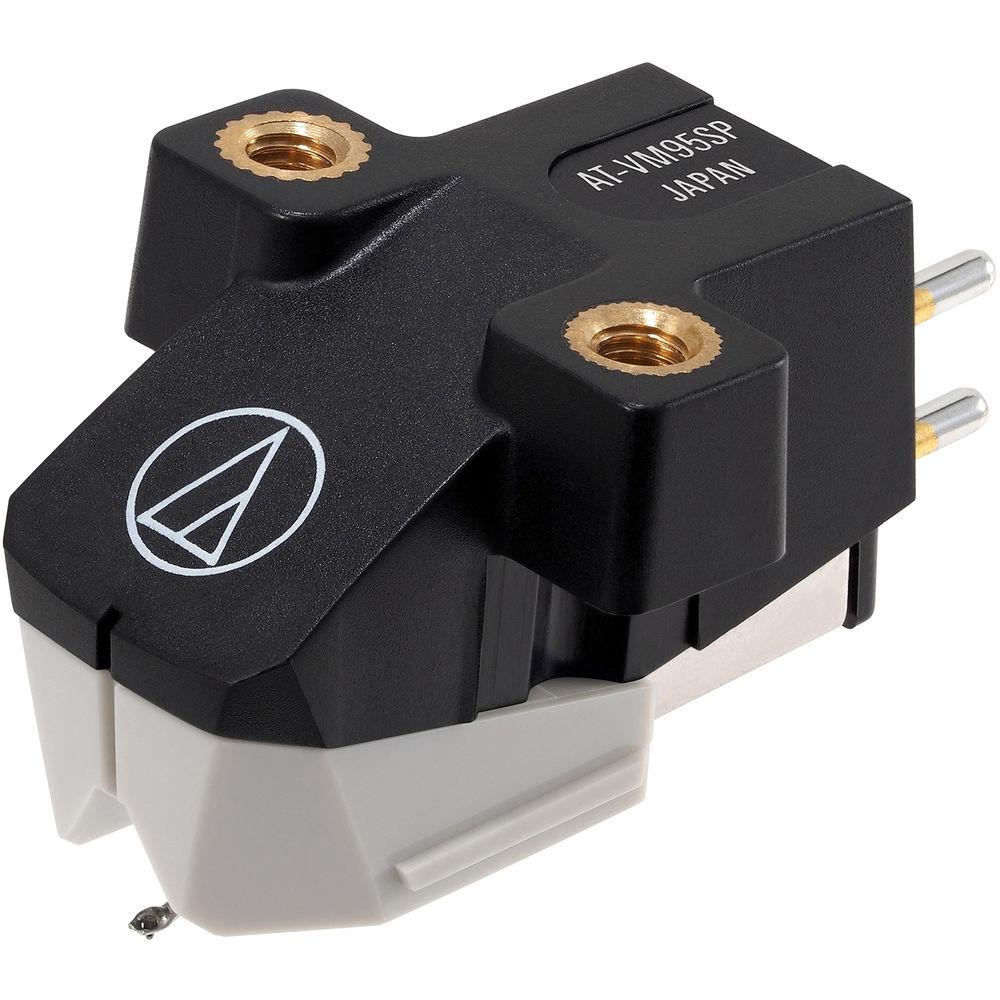

- Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws—no nuts or washers required
- Compatible with any AT-VMN95 replacement stylus

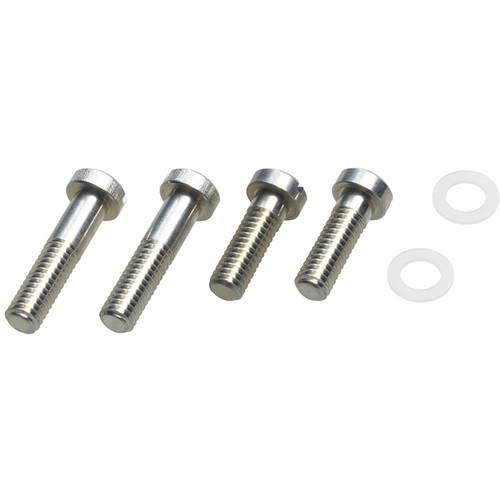

In the Box Audio-Technica Consumer AT-VM95SP Dual Moving Magnet Cartridge Set of Mounting Hardware (4 x Screws and 2 x Washers) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer AT-VM95SP Dual Moving Magnet Cartridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Consumer AT-VM95SP Specs | Frequency Response | 20 Hz to 20 kHz | | Tracking Force | 4.5 to 5.5 g (2.0 g Standard) | | Recommended Load Impedance | 47 kOhms | | Output | 2.7 mV (1 kHz, 5 cm/Sec.) | | Channel Balance | 1.5 dB (1 kHz) | | Stylus Shape | 3.0 mm Conical | | Stylus Construction | Bonded Round Shank | | Stylus Cantilever | Aluminum Pipe | | Mount | 0.5" / 1.27 cm | | Replacement Stylus | AT-VMN95SP | | Impedance | Coil Impedance: 3.3 kOhms (1 kHz) | | DC Resistance | 485 Ohms | | Load Capacitance | 100 to 200 pF | | Coil Inductance (Le) | 550 mH (1 kHz) | | Static Compliance | 12 x 10-6 cm/Dyne | | Dynamic Compliance | 2 x 10-6 cm/Dyne (100 Hz) | | Vertical Tracking Angle | 23° | | Dimensions | 0.7 x 0.7 x 1.1" / 17.2 x 18.9 x 28.3 mm | | Weight | 0.2 oz / 6.1 g | | | | Package Weight | 0.08 lb | | Box Dimensions (LxWxH) | 4.05 x 2.8 x 1.2" |
