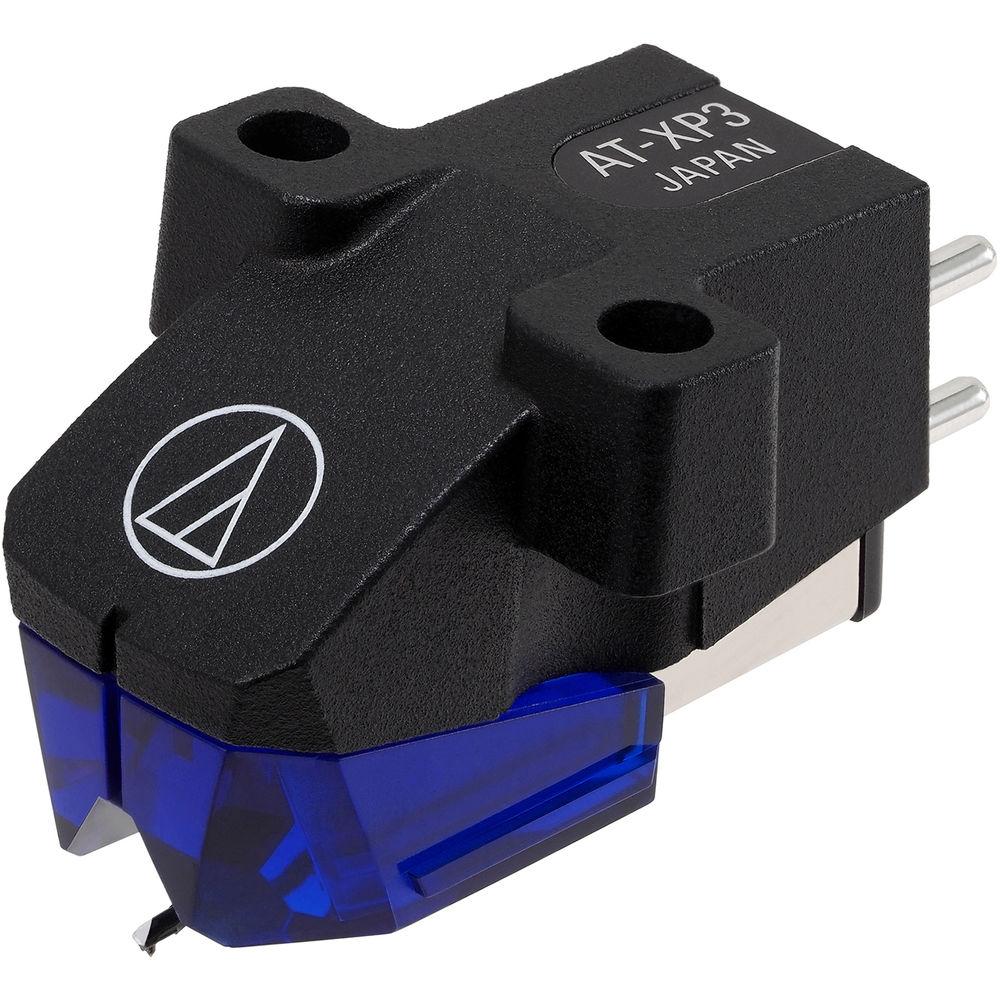

Product description The Audio-Technica Consumer AT-XP3 is specially designed for the needs of professional DJs and features a highly rigid polyphenylene sulfide (PPS) / glass fiber body with a tracking force of 2 to 4 grams. The AT-XP3 offers an output level of 5.5mV, while the 0.6mm conical bonded stylus tracks the center of the record groove for reliable performance and high-quality audio reproduction. Additionally, the cartridge is specifically designed to provide maximum visibility of the stylus tip. -
- 0.6 mil conical bonded stylus tip
- Highly rigid polyphenylene sulfide (PPS)/glass fiber body
- 5.5mV high-level output
- Tracking force of 2 to 4g (3g standard)
- Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
- Design offers maximum visibility of the stylus tip
- Great tracking and channel separation for high-fidelity sound
- AT-XP3 cartridge is compatible with any XP or VM95 series replacement stylus, offering a wide choice of options for every budget and application

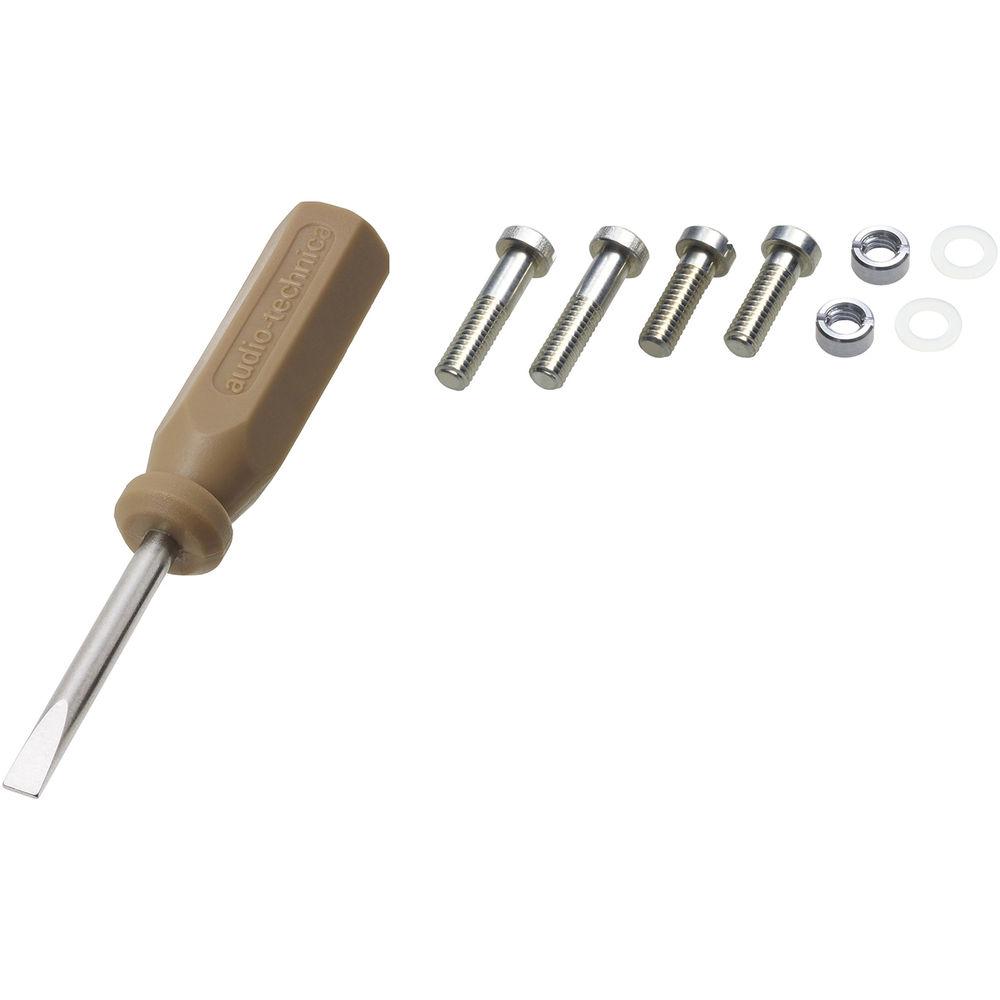

In the Box Audio-Technica Consumer AT-XP3 DJ Cartridge Install Hardware (Four Screws, Two Washers, and Two Nuts) Non-Magnetic Screwdriver Limited 1-Year Warranty against Defects and Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer AT-XP3 DJ Cartridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

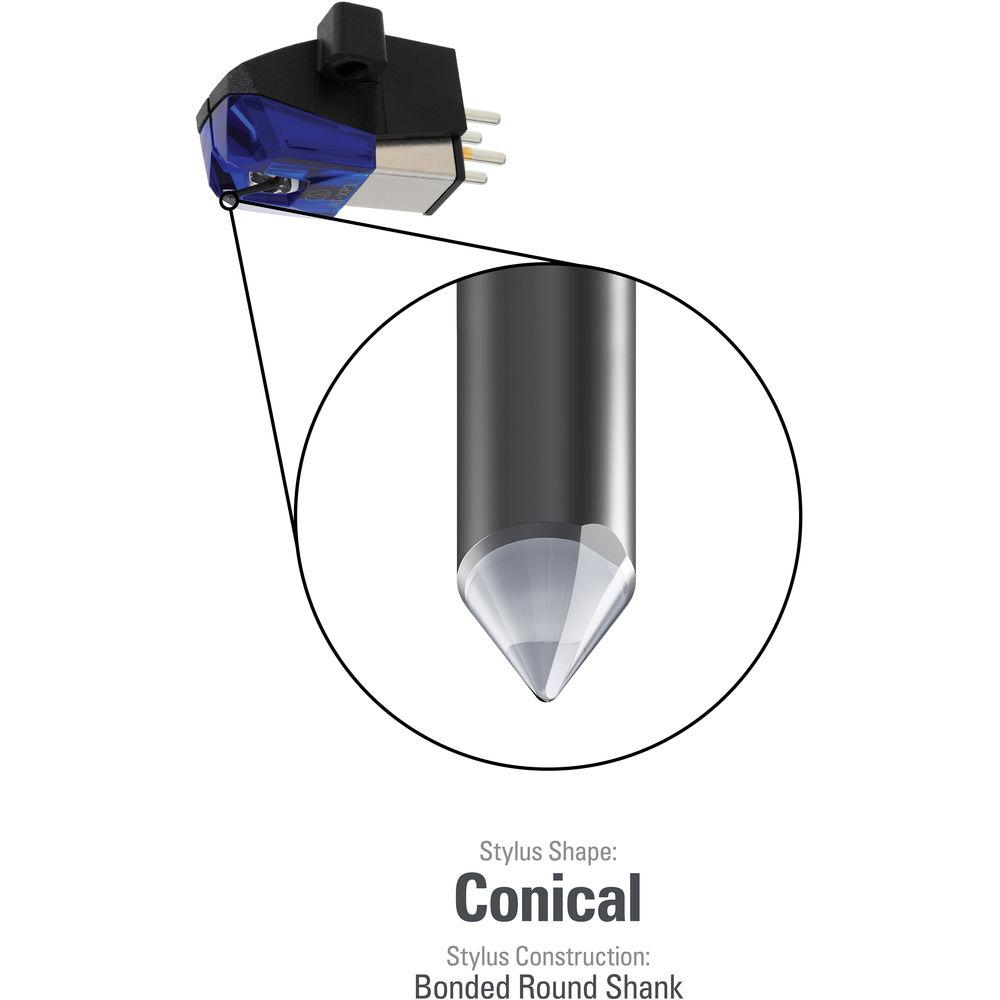

Technical parametersAudio-Technica Consumer AT-XP3 Specs | Frequency Response | 20 Hz to 18 kHz | | Channel Separation | 20 dB (at 1 kHz) | | Tracking Force | 2 to 4 g (3 g Standard) | | Stylus | Stylus Construction: Bonded Round Shank
Stylus Shape: 0.6 mm Conical | | Recommended Load Impedance | 47 kOhms | | Output | 5.5 mV (1 kHz, 5 cm/s) | | Channel Balance | 2.0 dB (1 kHz) | | Stylus Cantilever | Carbon Fiber-Reinforced ABS | | Mount | 0.5" / 12.7 mm | | Replacement Stylus | ATN-XP3 | | Coil Resistance | Coil Impedance: 6.7 kOhms (1 kHz) | | Recommended Load Capacitance | 100 to 200 pF | | Vertical Tracking Angle | 20° | | Dimensions (H x W x D) | 0.7 x 0.7 x 1.1" / 17.2 x 17.8 x 28.3 mm | | Weight | 0.2 oz / 6.2 g | | | | Package Weight | 0.08 lb | | Box Dimensions (LxWxH) | 3.2 x 2.9 x 1.2" |
