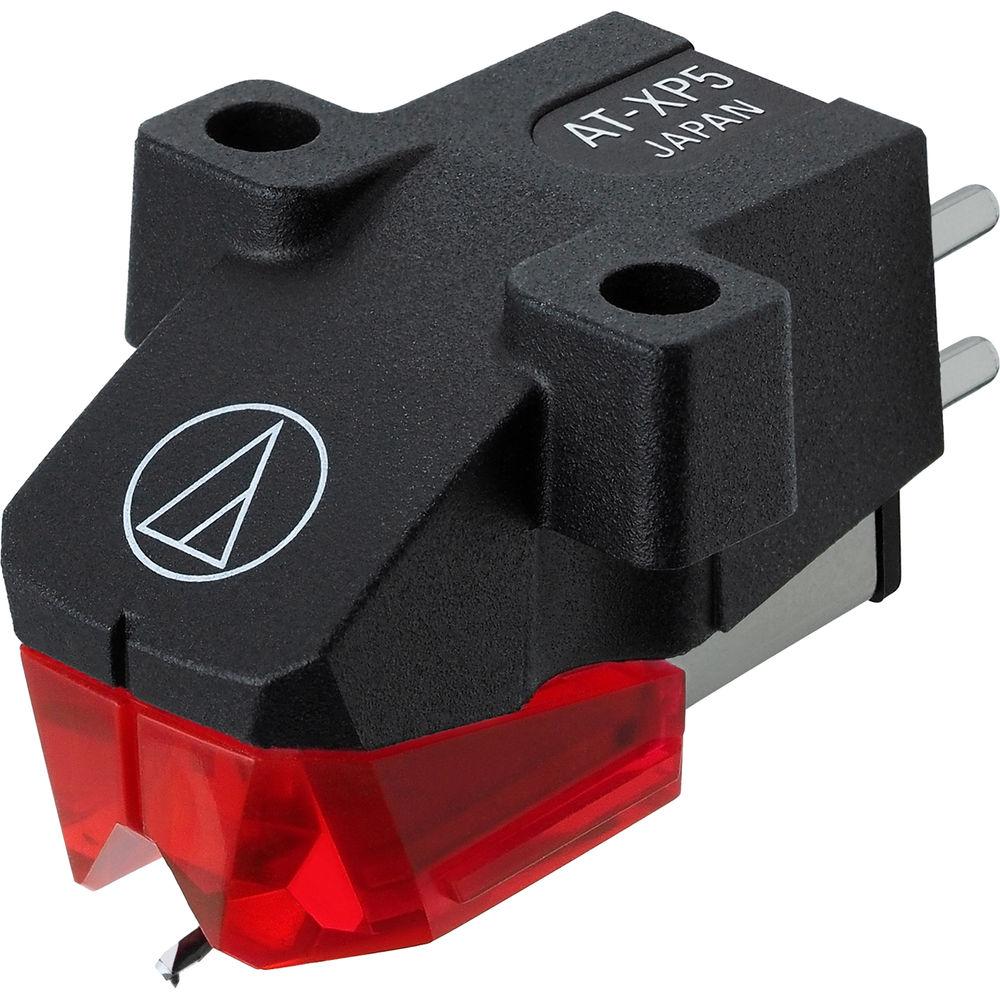

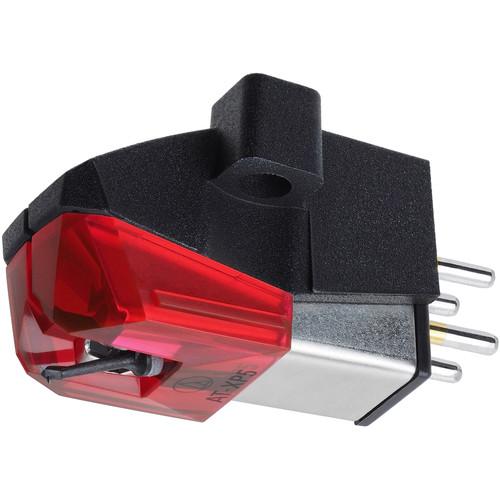

Product description The Audio-Technica Consumer AT-XP5 is a specially designed for the needs of professional DJs and features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body with a tracking force of 2 to 4 grams. The AT-XP5 offers an output level of 5.5mV, while the 0.3 x 0.7 elliptical bonded stylus tracks the record groove with high accuracy for high-quality audio reproduction. Additionally, the cartridge is specifically designed to provide maximum visibility of the stylus tip. -

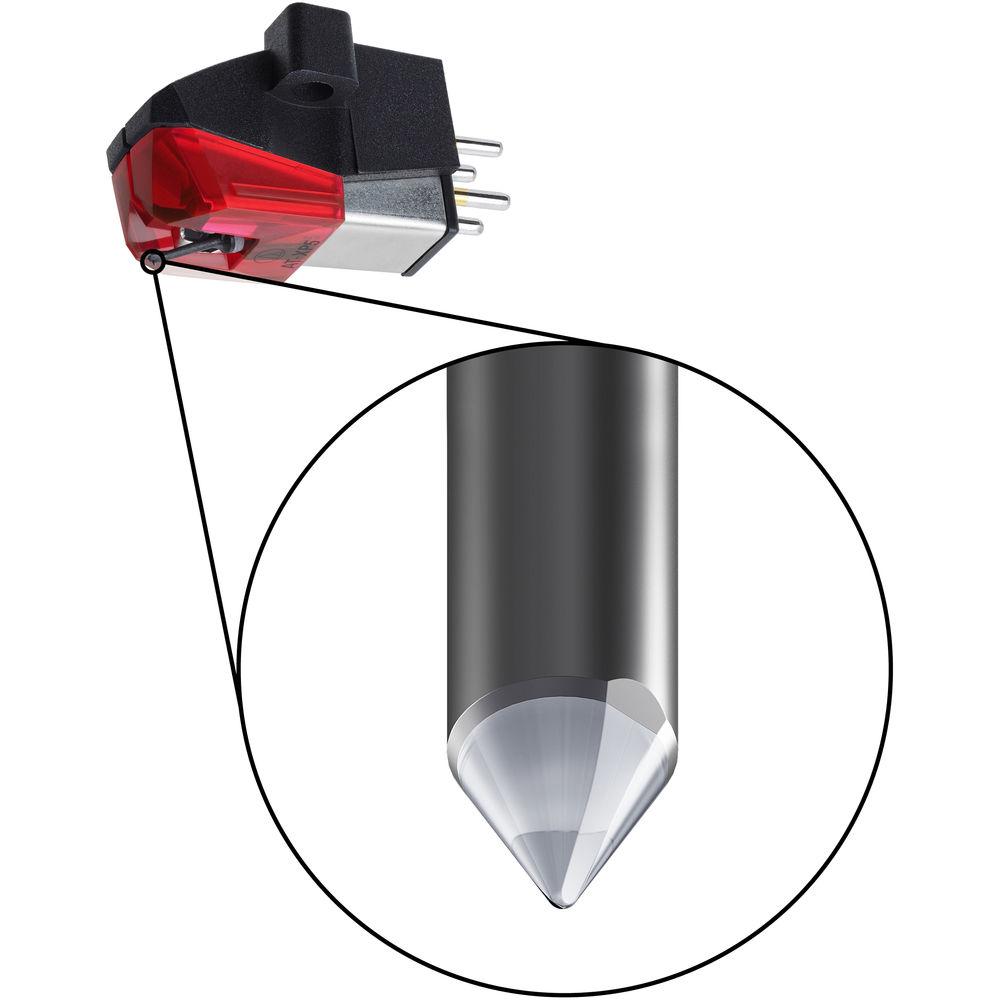

- 0.3 x 0.7 mil elliptical bonded stylus tip
- Highly-rigid polyphenylene sulfide (PPS) / glass fiber body
- 5.5mV high-level output
- Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
- Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
- Design offers maximum visibility of the stylus tip
- Great tracking and channel separation for high-fidelity sound
In the Box Audio-Technica Consumer AT-XP5 DJ Cartridge Limited 1-Year Warranty Against Defects and Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer AT-XP5 DJ Cartridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Consumer AT-XP5 Specs | Frequency Response | 20 Hz to 18 kHz | | Channel Separation | 20 dB (at 1 kHz) | | Tracking Force | 2.0 - 4.0 g (3.0 g standard) | | Stylus | Stylus Construction: Bonded round shank
Stylus Shape: 0.3 x 0.7 mil elliptical | | Recommended Load Impedance | 47 kOhms | | Output | 5.5 mV (1 kHz, 5 cm/sec.) | | Channel Balance | 2.0 dB (1 kHz) | | Stylus Cantilever | Carbon fiber reinforced ABS | | Mount | 0.5" / 12.7 mm | | Replacement Stylus | ATN-XP5 | | Coil Resistance | Coil Impedance: 6.7 kOhms (1 kHz) | | DC Resistance | 990 Ohms | | Recommended Load Capacitance | 100 to 200 pF | | Coil Inductance (Le) | 1.0 h (1 kHz) | | Vertical Tracking Angle | 20° | | Dimensions (H x W x D) | 0.7 x 0.7 x 1.1" / 17.2 x 17.8 x 28.3 mm | | Weight | 0.2 oz / 6.2 g | | | | Package Weight | 0.05 lb | | Box Dimensions (LxWxH) | 4.0 x 2.9 x 1.2" |
