User Manual for Audio-Technica Consumer AT-XP7 DJ Cartridge Click to enlarge the picture
Contents of the user manual for the Audio-Technica Consumer AT-XP7 DJ Cartridge
- Product category: Cartridges & Stylus Audio-Technica Consumer
- Brand: Audio-Technica Consumer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Consumer Cartridges & Stylus
 |
User manual for the Audio-Technica Consumer AT-XP7 DJ Cartridge contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica Consumer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica Consumer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica Consumer product will considerably shorten its lifespan!
|

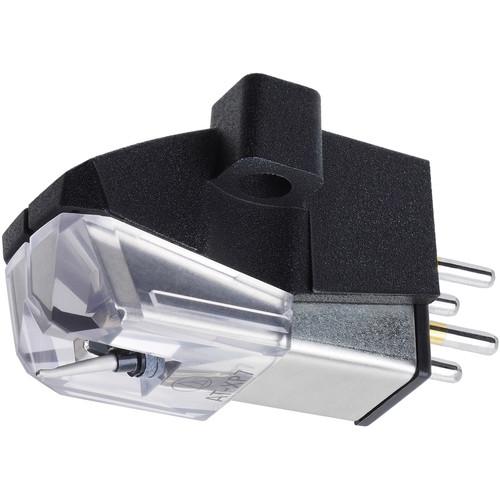

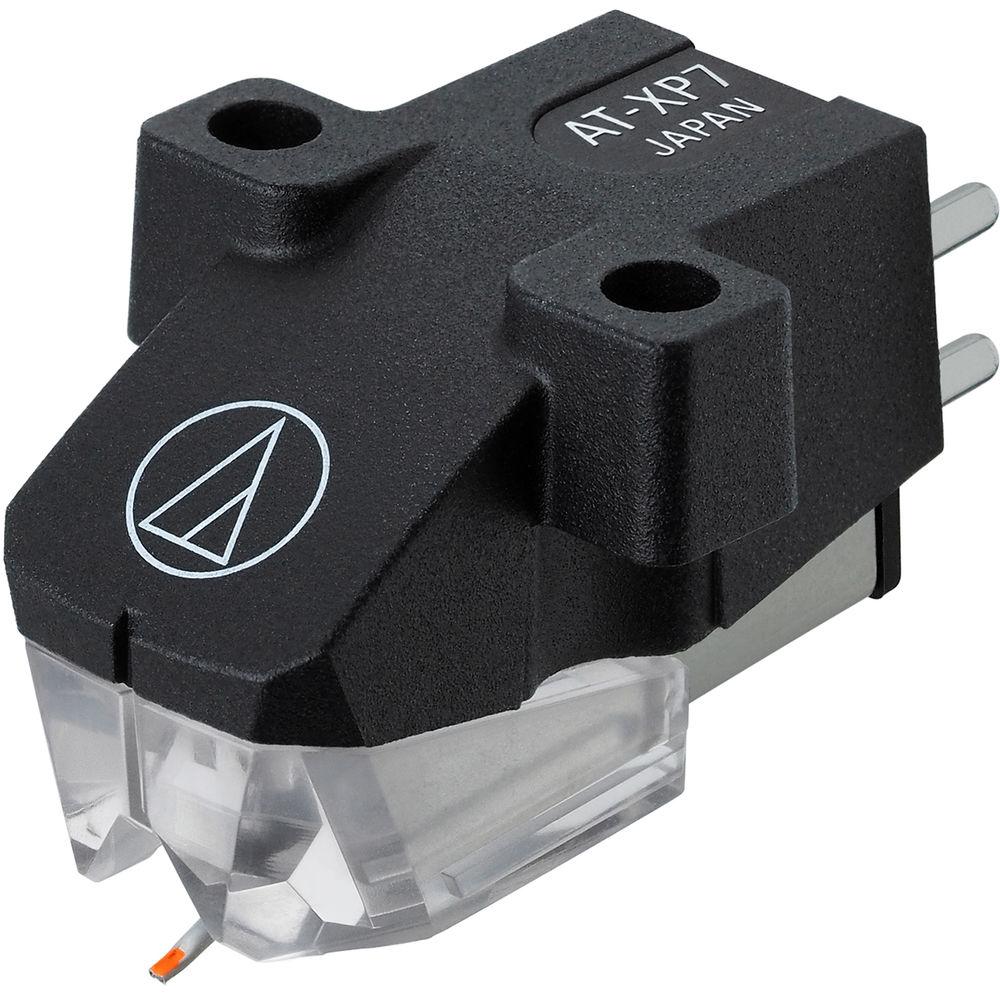

Product description The Audio-Technica Consumer AT-XP7 is specially designed for the needs of professional DJs and features a highly rigid polyphenylene sulfide (PPS) / glass fiber body with a tracking force of 2 to 4 grams. The AT-XP5 offers an output level of 6.0mV, while the 0.3 x 0.7 elliptical bonded stylus tracks the record groove with high accuracy for high-quality audio reproduction. Additionally, the cartridge is specifically designed to provide maximum visibility of the stylus tip. -
- 0.3 x 0.7 mil elliptical bonded stylus tip
- Highly-rigid polyphenylene sulfide (PPS) / glass fiber body
- 5.5mV high-level output
- Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
- Stainless wire suspension, double-layered rubber damper, and tapered aluminum cantilever ensure precise tracking

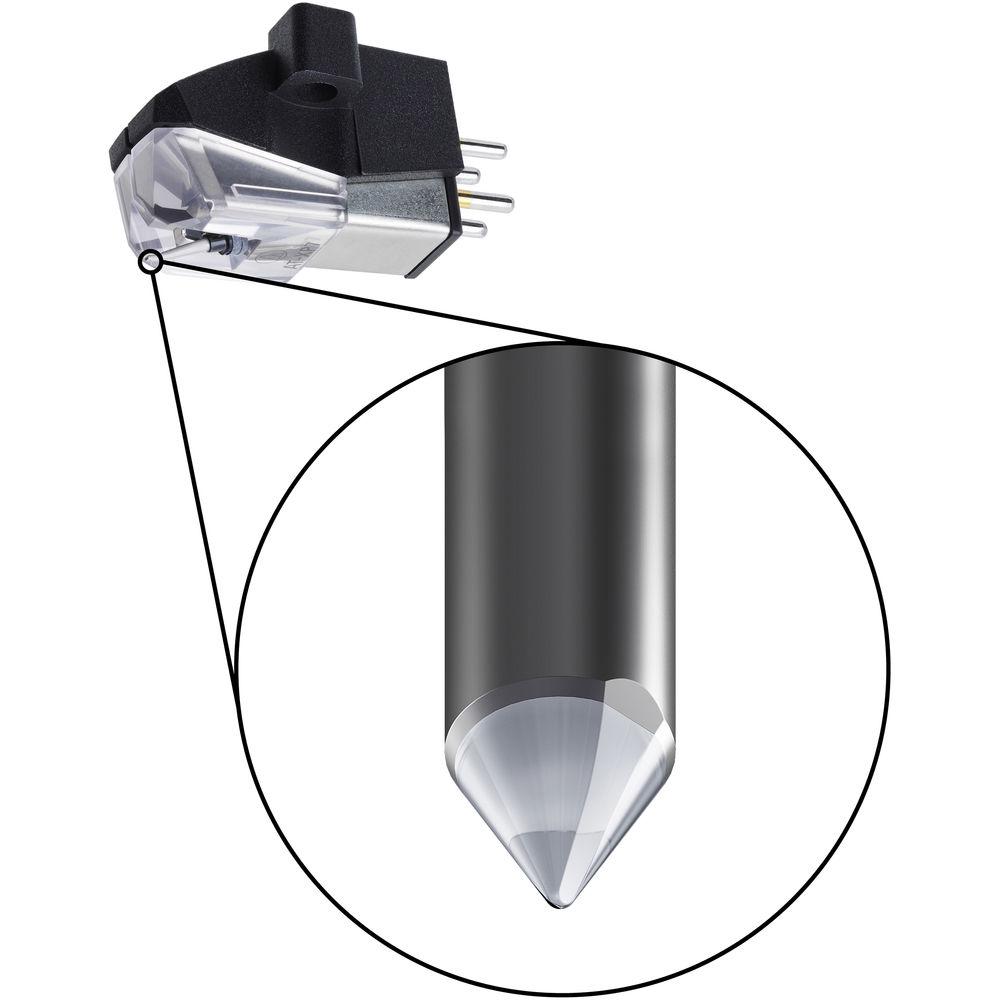

- Design offers maximum visibility of the stylus tip
- Great tracking and channel separation for high-fidelity sound
In the Box Audio-Technica Consumer AT-XP7 DJ Cartridge Limited 1-Year Warranty Against Defects and Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer AT-XP7 DJ Cartridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Consumer AT-XP7 Specs | Frequency Response | 20 Hz to 20 kHz | | Channel Separation | 22 dB (at 1 kHz) | | Tracking Force | 2.0 - 4.0 g (3.0 g standard) | | Stylus | Stylus Construction: Bonded round shank
Stylus Shape: 0.3 x 0.7 mil elliptical | | Recommended Load Impedance | 47 kOhms | | Output | 6.0 mV (1 kHz, 5 cm/s) | | Channel Balance | 2.0 dB (1 kHz) | | Stylus Cantilever | Aluminum tapered pipe | | Mount | 0.5" / 12.7 mm | | Replacement Stylus | ATN-XP7 | | Coil Resistance | Coil Impedance: 6.7 kOhms (1 kHz) | | DC Resistance | 990 Ohms | | Recommended Load Capacitance | 100 to 200 pF | | Coil Inductance (Le) | 1.0 h (1 kHz) | | Vertical Tracking Angle | 20° | | Dimensions (H x W x D) | 0.7 x 0.7 x 1.1" / 17.2 x 17.8 x 28.3 mm | | Weight | 0.2 oz / 6.2 g | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 4.3 x 2.9 x 2.0" |
