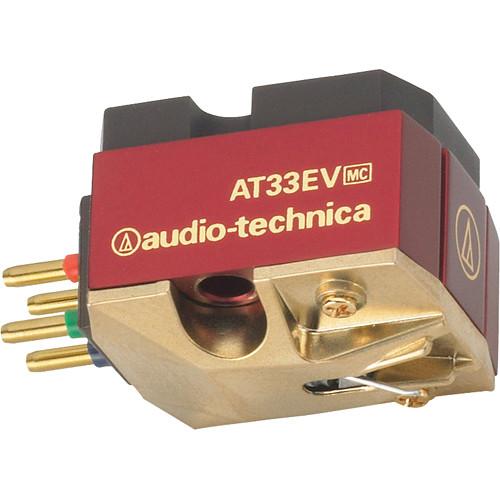

User Manual for Audio-Technica Consumer AT33EV Dual Moving Coil Cartridge Click to enlarge the picture
Contents of the user manual for the Audio-Technica Consumer AT33EV Dual Moving Coil
- Product category: Cartridges & Stylus Audio-Technica Consumer
- Brand: Audio-Technica Consumer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Consumer Cartridges & Stylus
|
User manual for the Audio-Technica Consumer AT33EV Dual Moving Coil contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica Consumer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica Consumer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica Consumer product will considerably shorten its lifespan!
|
Product description The AT33EV Dual Moving Coil Cartridge from Audio Technica is a 0.3 x 0.7mil elliptical cartridge with a dual moving coil design that increases channel separation and extends the frequency response range for high audio quality. It incorporates an internal neodymium magnet for enhanced magnetic energy and PCOCC wire for pure audio transmission. This half-inch mount cartridge features a tapered duralumin cantilever along with four large pin-terminals at the back that connect to four individual wires at the end of the tone arm. The cartridge is secured to the tone arm's headshell with two screws (included), spaced half an inch apart. In the Box Audio-Technica Consumer AT33EV Dual Moving Coil Cartridge 2 x 5mm Non-Magnetic Mounting Screws 2 x 9mm Non-Magnetic Mounting Screws Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer AT33EV Dual Moving Coil Cartridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Consumer AT33EV Specs | Frequency Response | 15 Hz - 50 kHz | | Channel Separation | 30 dB (1 kHz) | | Tracking Force | Vertical: 1.8 - 2.2 g (2.0 g standard) | | Recommended Load Impedance | 100 Ω (when head amplifier is connected) | | Output | Voltage: 0.3 mV @ 1 kHz, 1.4" (3.5 cm) per sec | | Channel Balance | 0.5 dB (1 kHz) | | Stylus Type | Nude elliptical, 0.3 x 0.7 mil | | Stylus Cantilever | Duralumin tapered pipe | | Mount | 0.5" (12.7 mm) | | Screw Type | Non-magnetic | | Dimensions | 0.63 x 0.67 x 1.06" (1.6 x 1.7 x 2.7 cm) | | Weight | 0.24 oz (6.9 g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 4.0 x 4.0 x 2.0" |
