User Manual for Audio-Technica Consumer AT85EP Elliptical Phonograph Cartridge for P-Mount Turntables Click to enlarge the picture
Contents of the user manual for the Audio-Technica Consumer AT85EP Elliptical Phonograph Cartridge
- Product category: Cartridges & Stylus Audio-Technica Consumer
- Brand: Audio-Technica Consumer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Consumer Cartridges & Stylus
 |
User manual for the Audio-Technica Consumer AT85EP Elliptical Phonograph Cartridge contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica Consumer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica Consumer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica Consumer product will considerably shorten its lifespan!
|

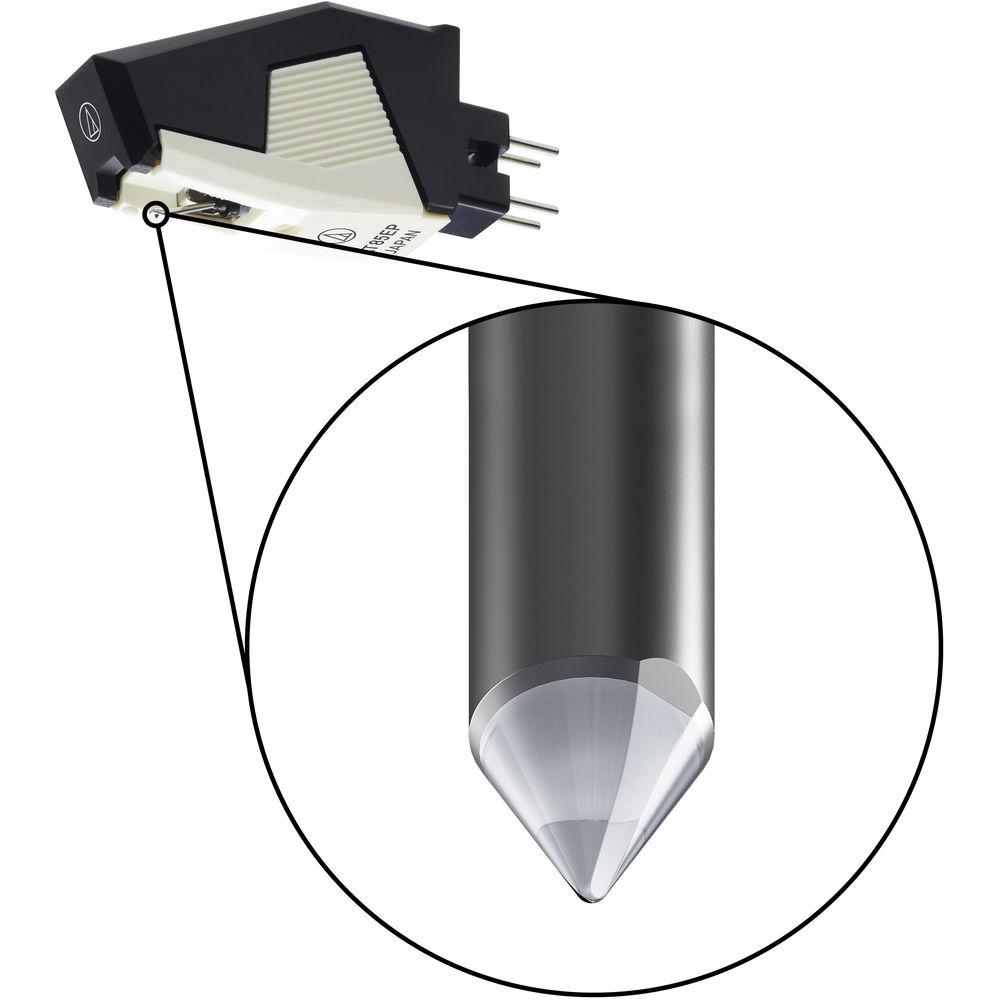

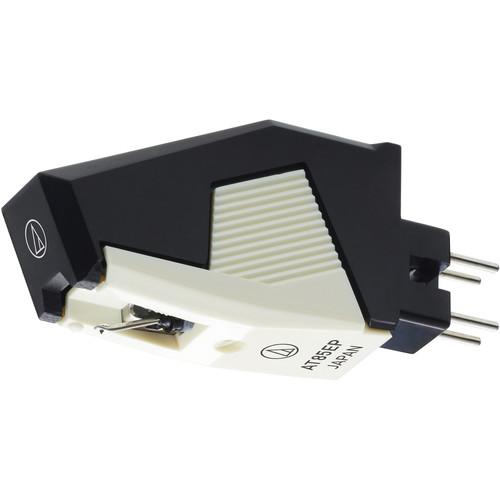

Product description The Audio-Technica Consumer AT85EP is a 0.3 x 0.7 mil elliptical phonograph cartridge designed for DJs, turntablists, and music aficionados using P-mount turntables in clubs, live sets, and home stereo setups. It features a bonded round stylus shank with an aluminum pipe cantilever. The 20 dB of channel separation and a frequency response of 20 Hz to 20 kHz ensure accurate and detailed audio reproduction. - 0.3 x 0.7 mil cartridge fits P-Mount turntables
- Bonded round shank stylus with aluminum pipe cantilever
- 20 dB of channel separation and 20 Hz to 20 kHz frequency response for accurate audio reproduction
In the Box Audio-Technica Consumer AT85EP Elliptical Phonograph Cartridge for P-Mount Turntables Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer AT85EP Elliptical Phonograph Cartridge for P-Mount Turntables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Consumer AT85EP Specs | Type | P-mount | | Stylus | Construction: Bonded round shank
Shape: 0.3 x 0.7 mil elliptical
Cantilever: Aluminum pipe | | Frequency Response | 20 Hz to 20 kHz | | Output | 3.5 mV (1 kHz, 5 cm/second) | | Channel Separation | 20 dB at 1 kHz | | Channel Balance | 2 dB (1 kHz) | | Tracking Force | 1 to 1.5 g (1.25 g standard) | | Recommended Load Impedance | 47 kOhms | | Recommended Load Capacitance | 100 to 200 pF | | Impedance | Coil: 2.8 kOhms (1 kHz) | | Inductance | Coil: 400 mH (1 kHz) | | DC Resistance | 410 Ohms | | Vertical Tracking Angle | 20° | | Lifetime | Approximately 300 hours | | Replacement Stylus | ATN85EP | | Replacement | Replaces AT301EP, AT311EP, AT316EP, and AT92ECD cartridges | | Dimensions (H x W x D) | 0.6 x 0.4 x 1.4" / 15.3 x 10.0 x 35.1 mm | | Weight | 0.2 oz / 6 g | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 4.1 x 2.9 x 1.2" |
