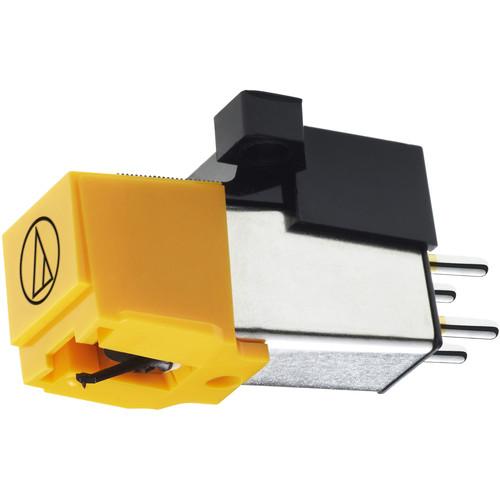

Product description The Audio-Technica Consumer AT91 is a 0.6 mil conical phonograph cartridge designed for DJs, turntablists, and music aficionados using 1/2" mount turntables in clubs, live sets, and home stereo setups. It features a dual-magnet design and bonded round stylus shank with a carbon fiber reinforced ABS cantilever. The 18 dB of channel separation and a frequency response of 20 Hz to 20 kHz ensure accurate and detailed audio reproduction. - 0.6 mil cartridge fits P-Mount turntables

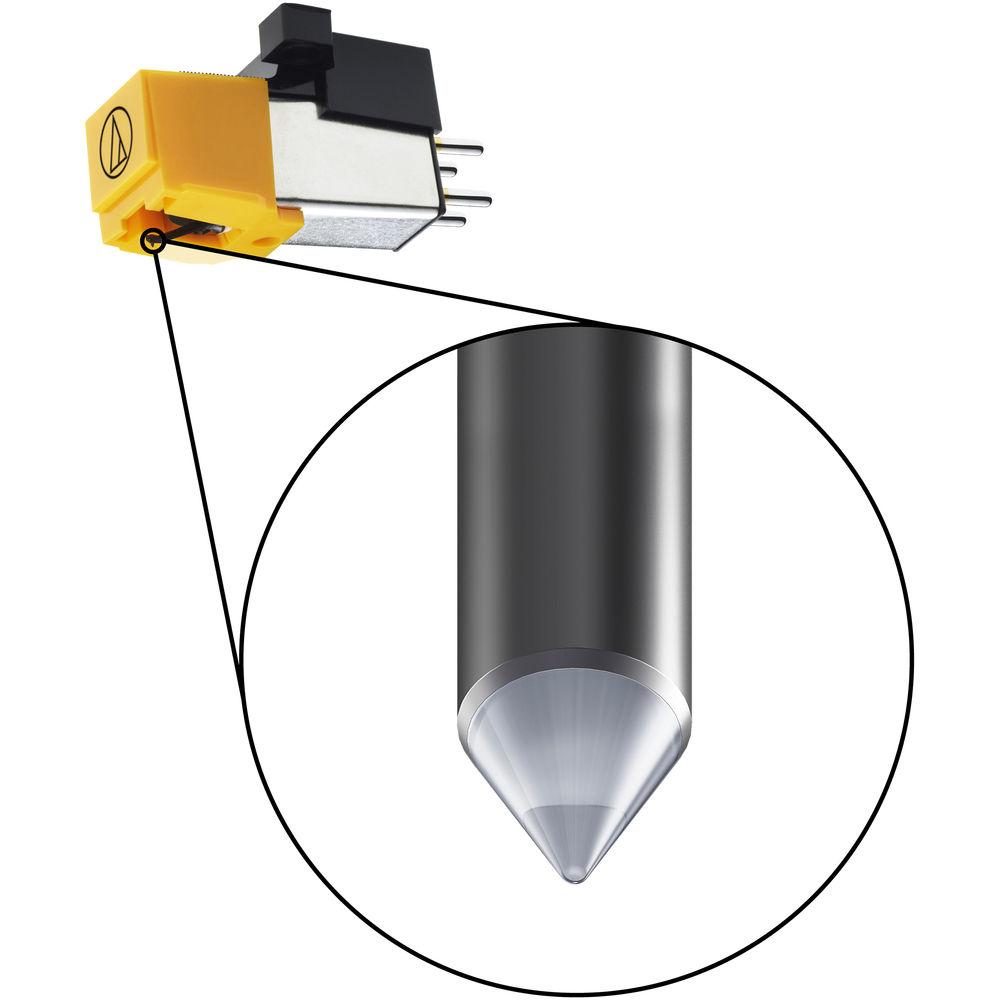

- Bonded round shank stylus with carbon fiber–reinforced ABS cantilever
- 18 dB of channel separation and 20 Hz to 20 kHz frequency response for accurate audio reproduction
In the Box Audio-Technica Consumer AT91 Conical Phonograph Cartridge for 1/2" Mount Turntables (Reinforced ABS Cantilever) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer AT91 Conical Phonograph Cartridge for 1 2" Mount Turntables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Consumer AT91 Specs | Type | 1/2" | | Stylus | Construction: Bonded round shank
Shape: 0.6 mil conical
Cantilever: Carbon fiber reinforced ABS | | Frequency Response | 20 Hz to 20 kHz | | Output | 3.5 mV (1 kHz, 5 cm/second) | | Channel Separation | 18 dB at 1 kHz | | Channel Balance | 2.5 dB (1 kHz) | | Tracking Force | 1.5 to 2.5 g (2 g standard) | | Recommended Load Impedance | 47 kOhms | | Recommended Load Capacitance | 100 to 200 pF | | Impedance | Coil: 2.8 kOhms (1 kHz) | | Inductance | Coil: 400 mH (1 kHz) | | DC Resistance | 410 Ohms | | Vertical Tracking Angle | 20° | | Lifetime | Approximately 300 to 500 hours | | Replacement Stylus | ATN91 | | Replacement | Replaces AT3600 cartridge | | Dimensions (H x W x D) | 0.7 x 0.7 x 1.2" / 17.0 x 16.8 x 31.0 mm | | Weight | 0.2 oz / 5 g | | | | Package Weight | 0.05 lb | | Box Dimensions (LxWxH) | 4.0 x 2.9 x 1.3" |
