User Manual for Audio-Technica Consumer ATH-ANC700BT QuietPoint Active Noise-Canceling Headphones Click to enlarge the picture
Contents of the user manual for the Audio-Technica Consumer ATH-ANC700BT QuietPoint Active Noise-Canceling
- Product category: Bluetooth Headphones Audio-Technica Consumer
- Brand: Audio-Technica Consumer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Consumer Bluetooth Headphones
 |
User manual for the Audio-Technica Consumer ATH-ANC700BT QuietPoint Active Noise-Canceling contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica Consumer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica Consumer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica Consumer product will considerably shorten its lifespan!
|

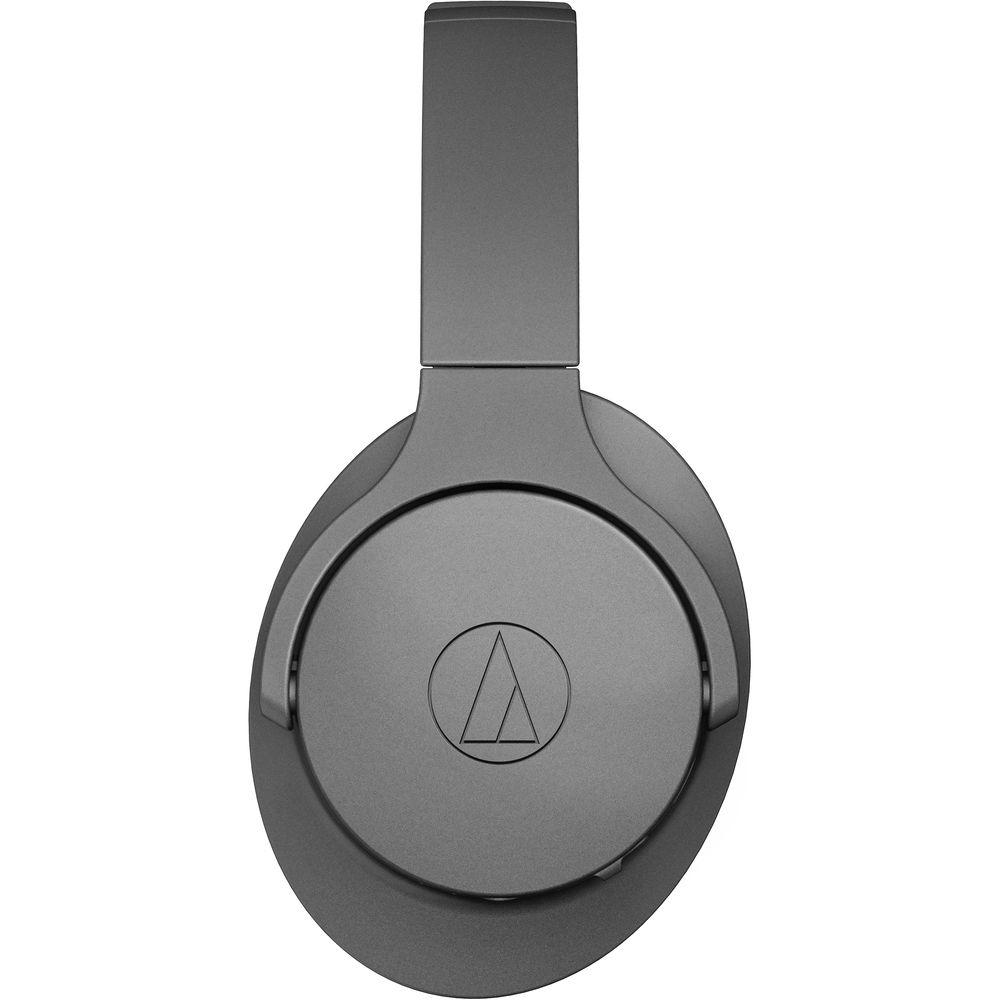

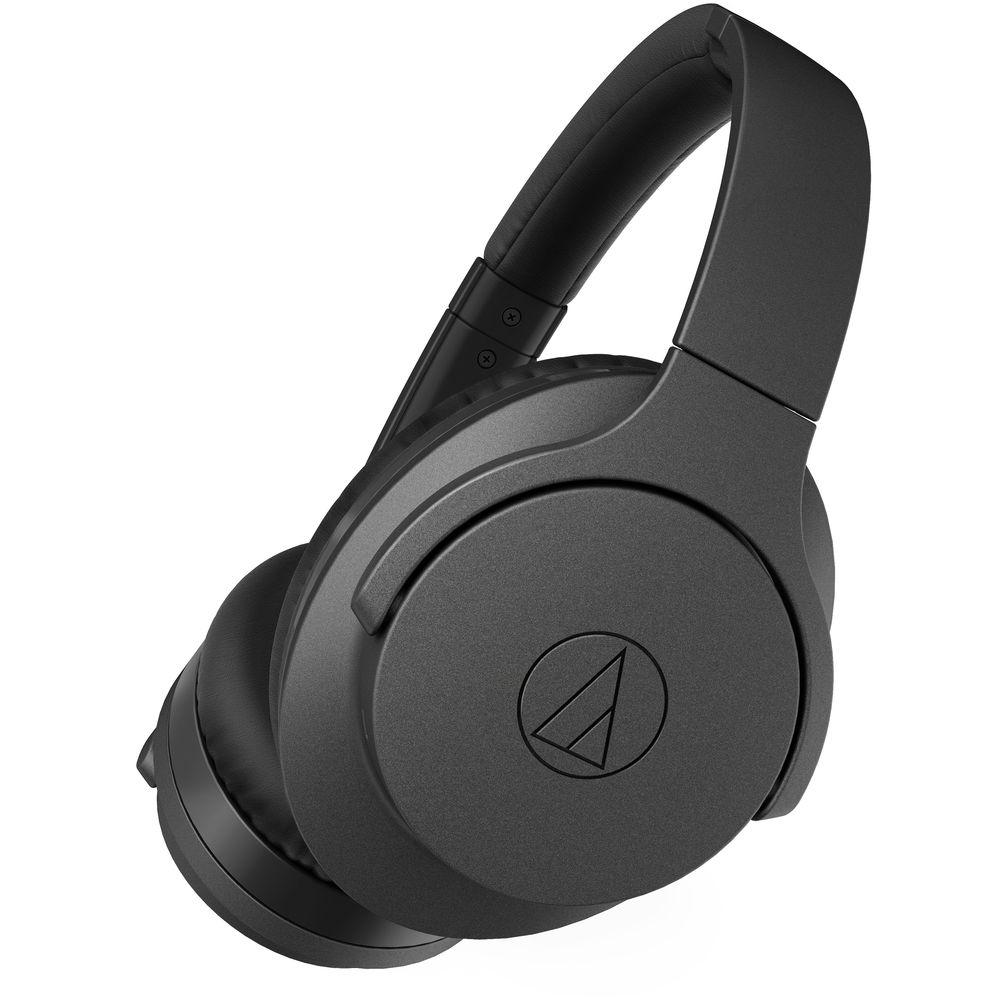

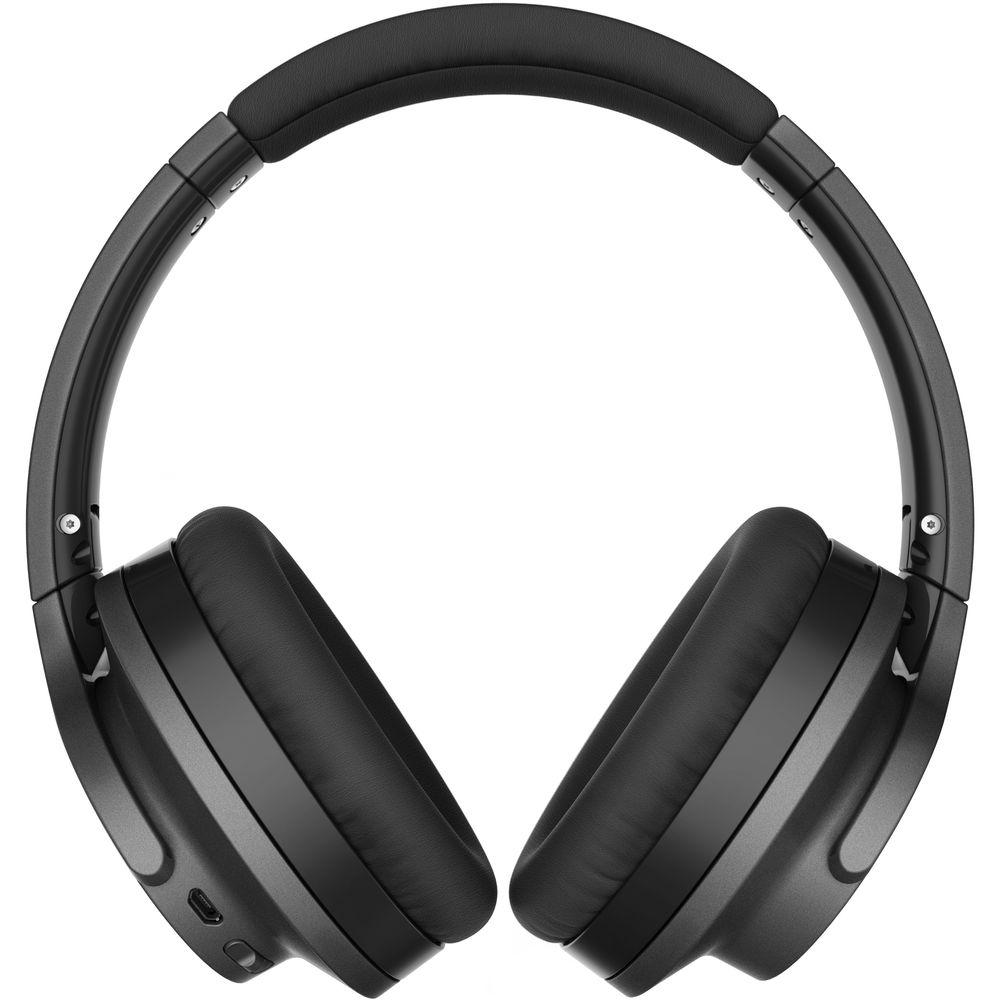

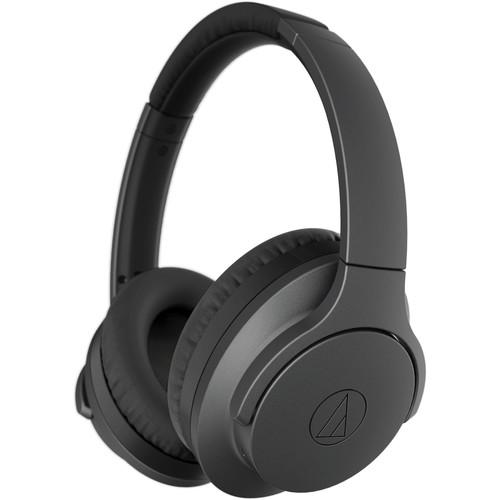

Product description Enjoy your audio in peace with the ATH-ANC700BT QuietPoint Active Noise-Cancelling Headphones from Audio-Technica. Active noise cancellation is designed to greatly block out distracting ambient noise, giving you the ability to better enjoy your audio regardless of where you might be. The memory foam earpads are designed to fit over your ears, providing a certain degree of additional passive noise reduction.
The QuietPoint headphones connect to any Bluetooth-equipped device, such as a smartphone or smart TV, to wirelessly stream your favorite audio. If paired with a smartphone, you can utilize the integrated microphone to use the ATH-ANC700BT headphones to conduct phone calls or give voice commands to a digital assistant. Built-in controls on the earcup let you manage calls and audio playback with a touch. When you're finished using them, just fold the earcups in to make them more compact and easier to transport in the included pouch. - Active Noise Cancellation
- Two microphones in each earcup are designed to pick up the ambient noise around you, and built-in electronics effectively "erase" it before it has the chance to reach your ears.
- Built-In Tap & Swipe Controls
- Built-in controls on the left earcup let you tap and swipe to manage your listening experience. Tap the earcup to answer calls, play/pause music, and increase/decrease volume. Swipe to skip to the next track or go back to the previous one.
- High-Resolution Audio
- Audio is reproduced in the headphones using 40mm drivers, and the QuietPoints are capable of 5 to 40,000 Hz of high-resolution frequency response when used with the included 3.5mm audio cable.
- All-Day Use
- The built-in lithium-ion polymer battery can provide up to 25 hours of continuous Bluetooth and ANC (active noise cancellation) use, and up to 1000 hours on standby. The QuietPoint headphones can be conveniently recharged using the included 1' USB charging cable.
- Wired Operation
- If your ATH-ANC700BT headphone battery happens to run out of power during use, you can continue to use them like a regular pair of wired headphones with the included 3.5mm audio cable.
In the Box Audio-Technica Consumer ATH-ANC700BT QuietPoint Active Noise-Canceling Headphones (Black) 3.5mm Audio Cable (3.9') USB Charging Cable (1') Protective Pouch Limited 1-Year Warranty User Manual PDF 1.6mberxsbudvwvearvxbrzbc Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer ATH-ANC700BT QuietPoint Active Noise-Canceling Headphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Consumer QuietPoint Specs | | | Driver Size | 1.57" / 40 mm | | Active Noise Cancellation | Yes | | Design | Over-Ear (Circumaural), Over-the-Head | | | | Frequency Response | 5 Hz to 40 Hz (Wired) | | Sensitivity | 95 dB at 1 mW (Passive)
98 dB at 1 mW (Active) | | Impedance | 35 Ohms (Passive)
150 Ohms (Active) | | Maximum Power Handling | 1000 mW | | Controls/Microphone Location | Earpiece | | Foldable | Yes | | | | Number of Mics | 1 | | Type | Condenser | | Pickup Pattern | Omni-Directional | | Frequency Response | 50 Hz to 4 kHz | | Sensitivity | -44 dB at 1 kHz / 1 V | | | | Supported Audio Codecs | AAC, SBC, aptX | | Bluetooth Profiles | A2DP
AVRCP
HFP
HSP | | Bluetooth Version | 4.1 | | Bluetooth Power Class | 2 | | Wireless Range | 33' / 10.1 m | | Frequency | 2.4 GHz (2402 to 2480 MHz) | | Multipoint Support | No | | Maximum Paired Devices | 8 | | NFC | No | | | | Audio Connector | 1/8" / 3.5 mm Straight | | Cable Length | 3.9' / 1.19 m | | Headphone Charging Port | Micro-USB | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Runtime | 25 Hours (BT+ANC)
30 Hours (BT)
45 Hours (ANC)
1000 Hours (Standby) | | Recharge Time | 5 Hours | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 9.0 x 8.9 x 4.0" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
