User Manual for Audio-Technica Consumer ATH-CKR7TW True Wireless In-Ear Headphones Click to enlarge the picture
Contents of the user manual for the Audio-Technica Consumer ATH-CKR7TW True Wireless In-Ear
- Product category: Bluetooth Headphones Audio-Technica Consumer
- Brand: Audio-Technica Consumer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Consumer Bluetooth Headphones
|
User manual for the Audio-Technica Consumer ATH-CKR7TW True Wireless In-Ear contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica Consumer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica Consumer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica Consumer product will considerably shorten its lifespan!
|

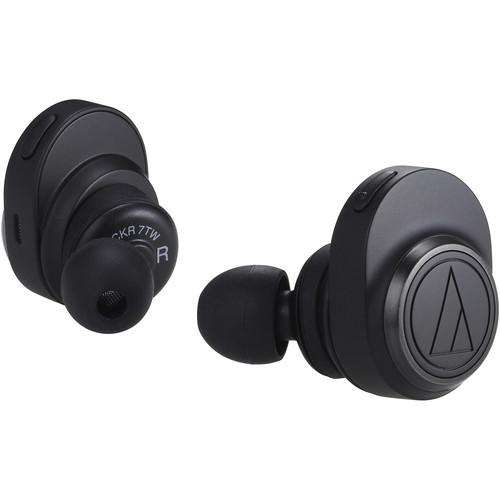

Product description The ATH-CKR7TW True Wireless In-Ear Headphones from Audio-Technica provide you with wireless audio entertainment without any cables, not even between each earbud. Even though they are extremely compact, Audio-Technica has managed to engineer a host of technological capabilities inside, designed to deliver clear, high-fidelity sound with deep, rich bass. They also include the AKM AK4375 DAC and headphone amplifier to help ensure clean sound reproduction via a wireless Bluetooth signal.
To further help with audio quality via Bluetooth, these earbuds support the AAC and aptX codecs. They also incorporate a built-in microphone and button control for managing audio playback and hands-free calls. Designed for comfortable extended use, these True Wireless earbuds give you up to 6 hours of continuous playback and included four different sized pairs of eartips. - High-Fidelity Audio Technology
- The engineers at Audio-Technica have incorporated a host of components and technologies that are designed to provide exceptional audio quality in a compact form factor.
- 11mm drivers and a diamond-like carbon-coated diaphragm is joined by pure iron yokes to help give accurate hi-fi audio playback
- Dual-layer isolation structures separate the electronics from the acoustic space, which is meant to give optimized phase and transient response
- Brass stabilizers are designed to reduce resonance and provide for linear diaphragm movement
- Stainless steel acoustic mesh resistors work to help further improve overall audio quality
- Button Control
- Built-in button control gives you hands-free call, music, and volume adjustment on your Bluetooth-compatible mobile device.
- Charging Case
- The True Wireless earbuds come with their own charging case for up to 15 total hours of continuous playback before any charging cables need to be plugged in. When the earbuds need to be recharged, simply place them in the case.
The earbuds deliver up to 6 hours on a full charge, and the built-in battery inside the case provides up to 9 more hours of power on a full charge. The earbuds and charging case itself can be recharged within approximately 2 hours. In the Box Audio-Technica Consumer ATH-CKR7TW True Wireless In-Ear Headphones (Black) Charging Case Micro-USB Type-B Charging Cable (1') Pair of Extra Small Eartips Pair of Small Eartips Pair of Medium Eartips Pair of Large Eartips Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer ATH-CKR7TW True Wireless In-Ear Headphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Consumer ATH-CKR7TW Specs | | | Driver Size | 0.43" / 11 mm | | Diaphragm | Carbon-Coated | | Active Noise Cancellation | No | | Design | In-Ear (Intra-aural) | | | | Frequency Response | 5 Hz to 45 kHz (Wireless) | | Sensitivity | 100 dB at 100 mW | | Impedance | 16 Ohms | | Noise Attenuation | None | | Controls/Microphone Location | Earpiece | | Storage Capacity | None | | | | Number of Mics | 1 | | Type | Condenser | | Pickup Pattern | Omni-Directional | | Frequency Response | 100 Hz to 10 kHz | | Sensitivity | -38 dB at 1 kHz / 1 V | | | | Supported Audio Codecs | AAC, SBC, aptX | | Bluetooth Profiles | A2DP
AVRCP
HFP
HSP | | Bluetooth Version | 5.0 | | Wireless Range | 33' / 10.1 m | | Bluetooth Transmitter Power | 3.2 mW | | NFC | No | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Runtime | 6 Hours (BT) | | Recharge Time | 2 Hours | | DC Input Power | 3.7 VDC | | | | Additional Runtime | 9 Hours | | Charging Port | Micro-USB | | Weight | 2.6 oz / 74 g | | | | Package Weight | 0.615 lb | | Box Dimensions (LxWxH) | 5.8 x 4.8 x 2.8" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 23 owners. Add your rating and experience with the product.
