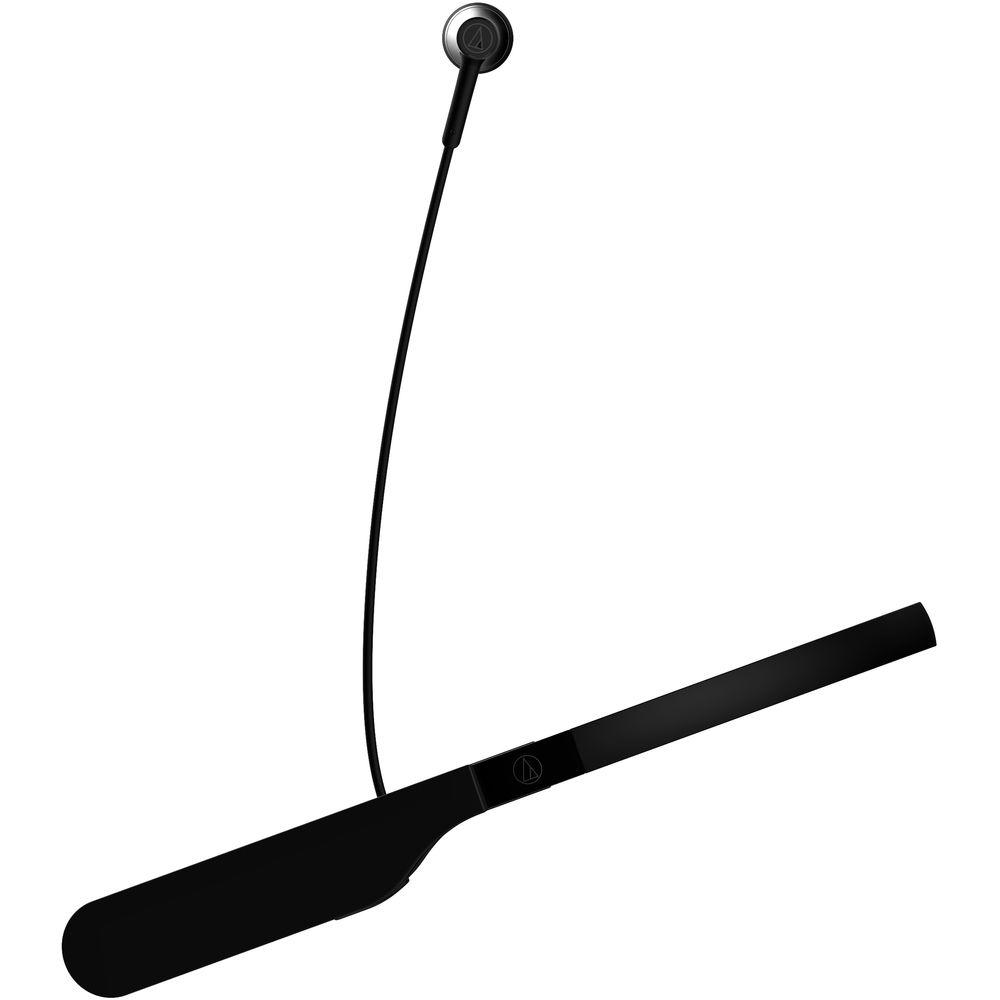

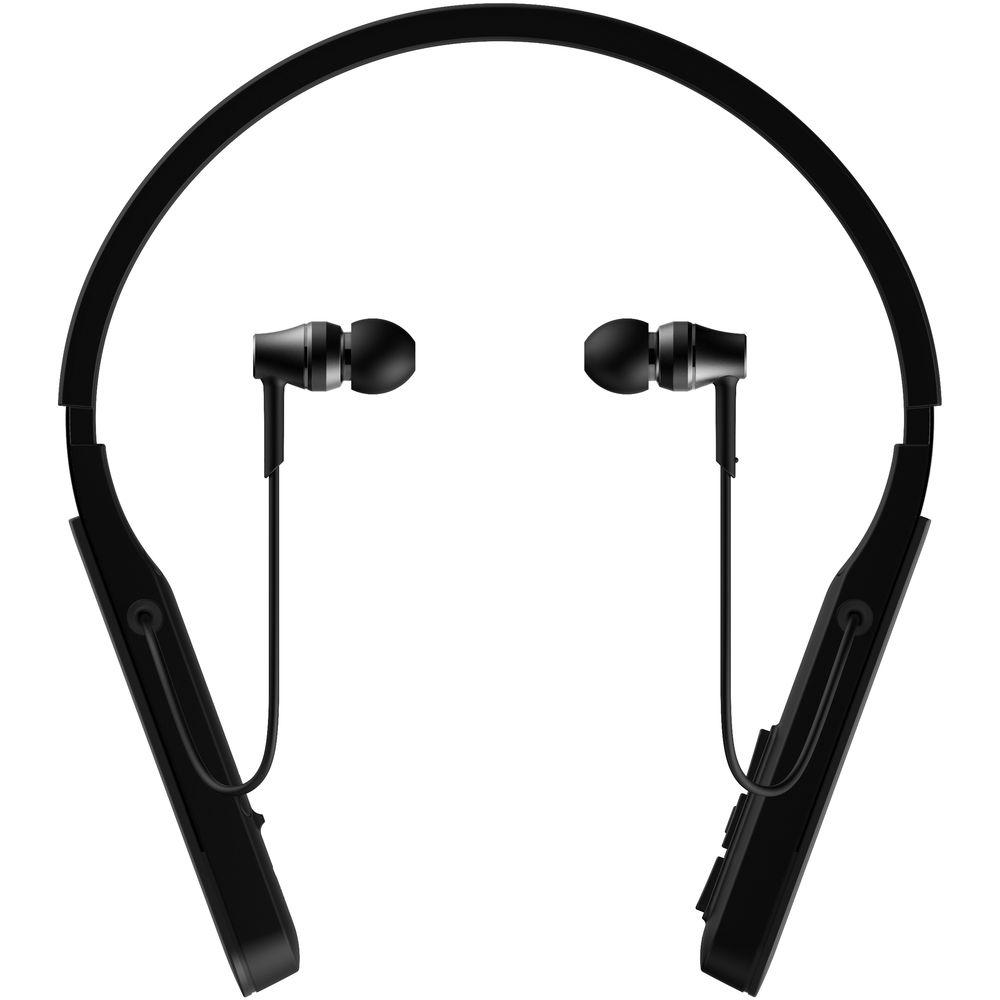

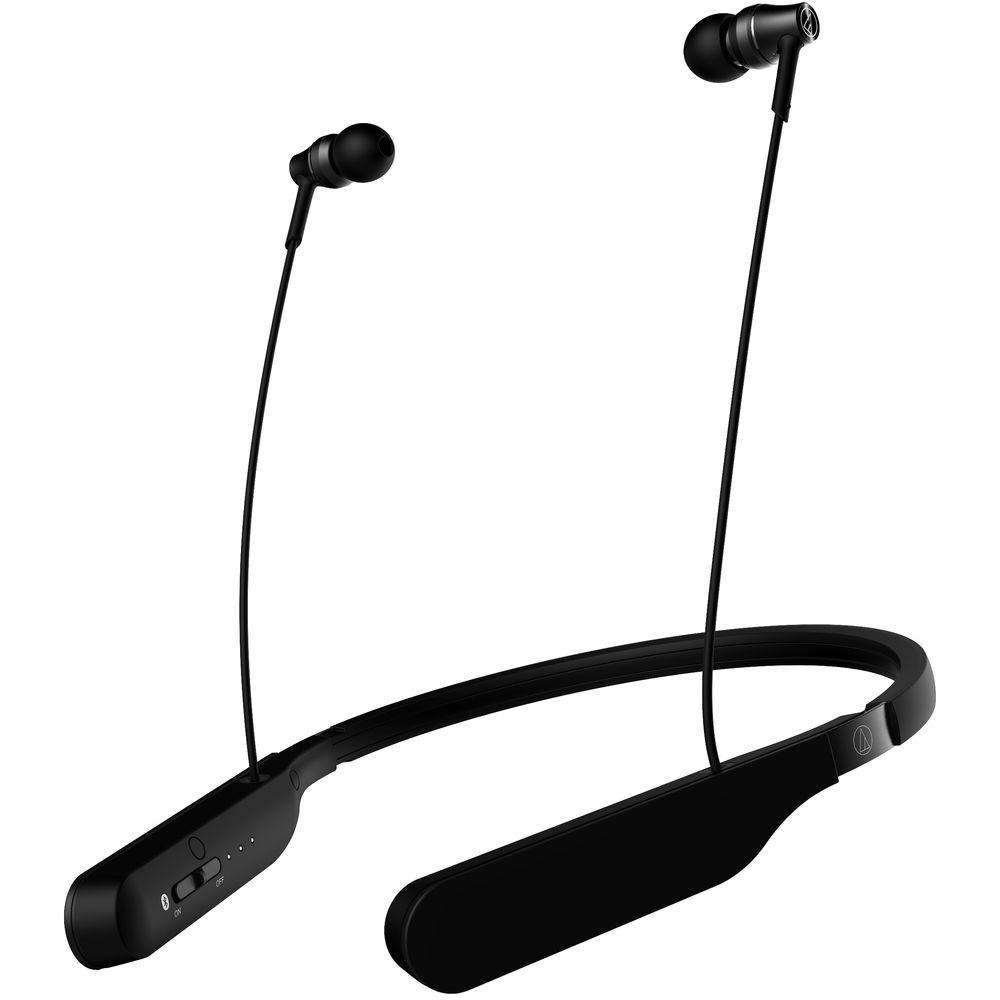

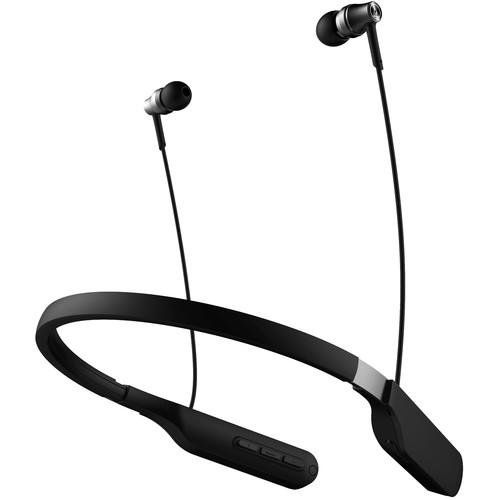

User Manual for Audio-Technica Consumer ATH-DSR5BT Wireless In-Ear Headphones Click to enlarge the picture
Contents of the user manual for the Audio-Technica Consumer ATH-DSR5BT Wireless In-Ear Headphones
- Product category: Bluetooth Headphones Audio-Technica Consumer
- Brand: Audio-Technica Consumer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Consumer Bluetooth Headphones
 |
User manual for the Audio-Technica Consumer ATH-DSR5BT Wireless In-Ear Headphones contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica Consumer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica Consumer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica Consumer product will considerably shorten its lifespan!
|
Product description Experience high-fidelity audio with the ATH-DSR5BT Wireless In-Ear Headphones from Audio-Technica. The engineers at Audio-Technica have utilized multiple technologies to help provide crystal-clear and accurate audio reproduction. They've incorporated their Pure Digital Drive system, which eliminates digital-to-audio conversion, keeping the digital signal from source to driver. Dual 9.8mm and 8.8mm dual phase push-pull drivers in each ear are designed to minimize distortion, increase power, and provide clear sound reproduction. These in-ear headphones also support Qualcomm's aptX HD codec for high bitrate audio files. - Dual Phase Push-Pull Drivers
- These wireless headphones feature 9.8mm and 8.8mm drivers facing each other. They are given different phased signals that make them move simultaneously, but in different directions, which is meant to provide a host of audio improvements. This technology is designed to lower harmonic distortion and increase power output and handling. This yields music with controlled bass, clear mid-range vocals, and accurate highs.
- Qualcomm aptX HD
- With support for the aptX HD codec, these headphones are capable of receiving 24-bit/48 kHz high resolution audio signals.
- Wireless Bluetooth Technology
- These headphones are designed to wirelessly transmit your favorite audio from Bluetooth-compatible mobile devices. When paired with a Bluetooth-compatible smartphone, you can also utilize the built-in microphone to wirelessly make and take phone calls.
- Ergonomic Design
- While the ATH-DSR5BT are in-ear headphones, they are connected to an ergonomically designed neckband that is meant to rest comfortably on the back of your neck. The microphone and all controls are at the front of the neckband for convenient operation and audio management. The controls allow you to manage audio playback, volume, and hands-free calling.
- All Day Battery Life
- Thanks to the built-in LiPo battery, these wireless in-ear headphones can provide up to 8 hours of playback throughout your day. When it's time to recharge, simply connect the included micro-USB cable to a computer or (optional) USB power adapter. Charging them back to 100% takes approximately 3 hours.
In the Box Audio-Technica Consumer ATH-DSR5BT Wireless In-Ear Headphones Pair of Extra Small Silicone Eartips Pair of Small Silicone Eartips Pair of Medium Silicone Eartips Pair of Large Silicone Eartips Micro-USB Type-B Charging Cable (1') Protective Storage Pouch Limited 1-Year Warranty User Manual PDF 1.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer ATH-DSR5BT Wireless In-Ear Headphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Consumer ATH-DSR5BT Specs | | | Driver Size | 0.39" / 9.8 mm
0.35" / 8.8 mm | | Active Noise Cancellation | No | | Design | In-Ear (Intra-aural), Behind-the-Neck | | | | Frequency Response | 5 Hz to 45 kHz (Wireless) | | Sensitivity | 102 dB at 102 mW | | Impedance | 10 Ohms | | Noise Attenuation | None | | Controls/Microphone Location | Neckband | | Foldable | No | | Storage Capacity | None | | | | Number of Mics | 1 | | Type | Condenser | | Pickup Pattern | Omni-Directional | | Frequency Response | 100 Hz to 10 kHz | | Sensitivity | -42 dB at 1 kHz / 1 V | | | | Supported Audio Codecs | AAC, SBC, aptX, aptX HD | | Bluetooth Profiles | A2DP
AVRCP
HFP
HSP | | Bluetooth Version | 4.2 | | Bluetooth Power Class | 2 | | Wireless Range | 33' / 10.1 m | | NFC | None | | | | Headphone Charging Port | Micro-USB | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Runtime | 8 Hours (BT)
500 Hours (Standby) | | Recharge Time | 3 Hours | | DC Input Power | 3.7 VDC | | | | Package Weight | 0.995 lb | | Box Dimensions (LxWxH) | 9.3 x 7.2 x 2.1" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
