User Manual for Audio-Technica Consumer ATH-WS990BT Solid Bass Wireless Over-Ear Noise Canceling Headphones Click to enlarge the picture
Contents of the user manual for the Audio-Technica Consumer ATH-WS990BT Solid Bass Wireless
- Product category: Bluetooth Headphones Audio-Technica Consumer
- Brand: Audio-Technica Consumer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Consumer Bluetooth Headphones
|
User manual for the Audio-Technica Consumer ATH-WS990BT Solid Bass Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica Consumer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica Consumer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica Consumer product will considerably shorten its lifespan!
|

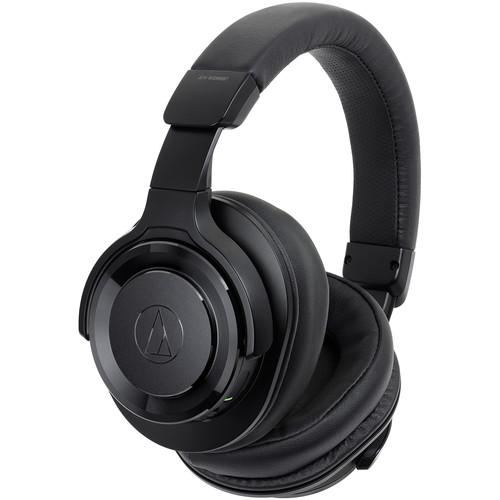

Product description Block out the world around you and enjoy your favorite audio with the ATH-WS990BT Solid Bass Wireless Over-Ear Noise Canceling Headphones from Audio-Technica. With active noise-canceling technology, these headphones electronically dampen ambient noise, leaving you with a quiet and more enjoyable listening experience. An experience that is designed to deliver clear full-range audio and deep bass, thanks to 53mm Deep Motion drivers and large, high-flux magnetic circuitry.
Everything is received wirelessly from Bluetooth-compatible devices, such as a smartphone or tablet. When paired with a smartphone, the built-in mic lets you use the Solid Bass headphones to make and take hands-free calls. - Hear-Through Feature
- Noise cancellation can be a peaceful experience in crowded and noisy environments, but sometimes it's important to hear what's happening around you. This is why Audio-Technica provides a Hear-Through feature that, when activated, allows voices and ambient noise to come through into the headphones. This gives you a convenient option for listening to announcements or having a quick chat without having to remove your headphones.
- Comfort & Sound Isolation
- Each earpad has been constructed from dual-layer memory foam, with a firm internal layer and a soft outer layer. This design is meant to help with passive sound isolation, while still remaining comfortable during hours of enjoyment.
- Go Wired for Hi-Res Audio
- The Solid Bass wireless headphones come with a 3.9' audio cable that you can use to connect to wired devices or when your battery is running low. In addition to this added convenience, going wired allows the headphones to support audio files formatted for Hi-Res Audio, which has a minimum quality of 96 kHz/24-bit.
- Built-In Controls
- Take control of your wireless audio while leaving your mobile device in your bag, purse, or backpack. Built-in earcup controls gives you the ability to manage audio and video playback, volume, and phone calls.
- Additional Features
- Up to 30 hours of playback per charge
Supports aptX for high-quality audio performance
Aluminum housings to help reduce unwanted resonance
Convenient fold-flat design for easy storage In the Box Audio-Technica Consumer ATH-WS990BT Solid Bass Wireless Over-Ear Noise Canceling Headphones 3.5mm (1/8") Stereo Mini-Plug Audio Cable with L-Type Connector (3.9') USB Charging Cable (1') Storage Pouch Limited 2-Year Warranty User Manual PDF 3.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer ATH-WS990BT Solid Bass Wireless Over-Ear Noise Canceling Headphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Consumer ATH-WS990BT Specs | | | Driver Size | 2.09" / 53 mm | | Active Noise Cancellation | Yes | | Design | Over-Ear (Circumaural), Over-the-Head | | | | Frequency Response | 5 Hz to 40 kHz | | Sensitivity | 107 dB at 107 mW (Active)
101 dB at 101 mW (Passive) | | Impedance | 150 Ohms (Active)
30 Ohms (Passive) | | Noise Attenuation | Active | | Controls/Microphone Location | Earpiece | | Foldable | Yes | | Storage Capacity | None | | | | Number of Mics | 1 | | Type | Condenser | | Pickup Pattern | Omni-Directional | | Frequency Response | 50 Hz to 4 kHz | | Sensitivity | -44 dB at 1 kHz / 1 V | | | | Supported Audio Codecs | AAC, SBC, aptX | | Bluetooth Profiles | A2DP
AVRCP
HFP
HSP | | Bluetooth Version | 4.1 | | Bluetooth Power Class | 2 | | Wireless Range | 33' / 10.1 m | | NFC | None | | | | Audio Connector | 1/8" / 3.5 mm | | Cable Length | 3.9' / 1.19 m | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Runtime | 25 Hours (BT+ANC)
30 Hours (BT)
35 Hours (ANC)
1000 Hours (Standby) | | Recharge Time | 5 Hours | | DC Input Power | 3.7 VDC | | | | Package Weight | 1.83 lb | | Box Dimensions (LxWxH) | 9.2 x 8.8 x 4.0" |
