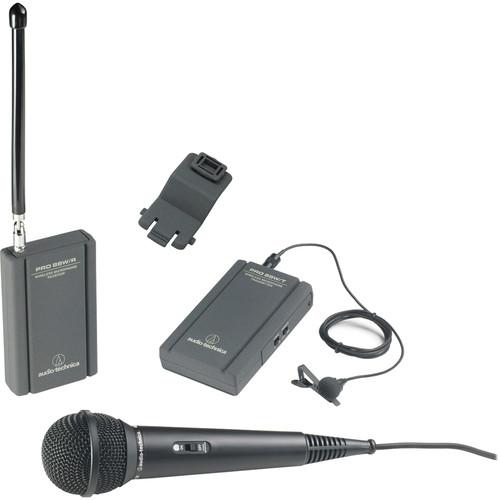

User Manual for Audio-Technica Consumer ATR288W VHF TwinMic System Click to enlarge the picture
Contents of the user manual for the Audio-Technica Consumer ATR288W VHF TwinMic System
- Product category: Wireless Systems Audio-Technica Consumer
- Brand: Audio-Technica Consumer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Consumer Wireless Systems
|
User manual for the Audio-Technica Consumer ATR288W VHF TwinMic System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica Consumer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica Consumer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica Consumer product will considerably shorten its lifespan!
|
Product description The Audio-Technica ATR288W VHF TwinMic System is a portable, versatile VHF wireless microphone system ideal for video applications, general PA applications, aerobics and fitness instruction, worship and more. The TwinMic system consists of a camera-mountable VHF receiver, bodypack transmitter, ATR35 miniature lavalier and ATR20 dynamic handheld microphone.Both included microphones are wired, and connect to the bodypack for wireless operation. Connect the ATR35 lavalier for completely hands-free speech, and the ATR20 handheld for applications that require a handheld microphone. A 9V battery (each) keeps the transmitter and receiver powered for up to 8 hours. - Includes ATR35 miniature lavalier condenser microphone for "hands-free" uses such as aerobics, dance, theater, lectures and "newscaster-style" videos
- Includes ATR20 dynamic microphone for handheld uses such as singing, talking, recording and videos
- Compact, ultra-lightweight transmitter and receiver are each powered by a single 9V battery
- Normal operating range 100'; up to 300' under optimum conditions
- Two user-switchable frequencies for interference-free operation
- Includes earphone for real-time monitoring capability
- Durable, rubber-coated, flexible receiver antenna can be positioned for best reception
- Includes belt-clip and quick, reliable camera mount adapter for easy positioning and use
UPC: 042005400607 In the Box Audio-Technica Consumer ATR288W VHF TwinMic System VHF Portable Beltpack Transmitter VHF Portable Receiver Belt Clip Camera Shoe-Mount Adapter Monitor Earphone Audio Output Cable Hook-and-Loop Tape Self-Adhesive Foam Flexible Antenna Mini-Plug to 1/4" Adapter Lifetime Limited End-User Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer ATR288W VHF TwinMic System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Consumer ATR288W Specs | | | Operating Frequency | T24 (169.505MHz & 170.305MHz) | | Channels | 2 | | Modulation Mode | FM | | | | Receiving Mode | FM Superheterodyne | | Receiving Sensitivity | 2 µV for 30dB S/N | | DC Input | 9V DC (center-positive) | | Battery | 9V alkaline (not included)
8 hours nominal | | Consumption | 50mA | | Dimensions (HxWxD) | 4.09 x 2.44 x 0.94" (104.0 x 62.0 x 24.0mm) | | Weight | 3.5 oz (100 g) | | | | Modulation | FM
6 mV for full deviation | | Battery | 9V alkaline (not included)
8 hours nominal | | Current Consumption | 50 mA | | Dimensions (HxWxD) | 4.09 x 2.44 x 0.94" (104.0 x 62.0 x 24.0mm) | | Weight | 2.8 oz (80 g) | | | | Package Weight | 1.305 lb | | Box Dimensions (LxWxH) | 10.55 x 8.55 x 2.4" |
Rating78% users recommend this product to others. And what about you?
This product has already been rated by 82 owners. Add your rating and experience with the product.
