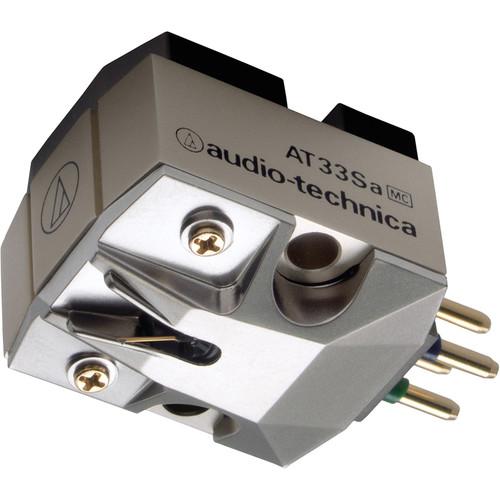

User Manual for Audio-Technica Consumer Dual Moving Coil Cartridge with Shibata Stylus Click to enlarge the picture
Contents of the user manual for the Audio-Technica Consumer Dual Moving Coil Cartridge
- Product category: Cartridges & Stylus Audio-Technica Consumer
- Brand: Audio-Technica Consumer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Consumer Cartridges & Stylus
|
User manual for the Audio-Technica Consumer Dual Moving Coil Cartridge contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica Consumer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica Consumer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica Consumer product will considerably shorten its lifespan!
|
Product description The AT33Sa Dual Moving Coil Cartridge from Audio-Technica features a Shibata line-contact stylus, known for its superior high-range performance and strong mid and bass sound. The stylus is mounted on a tapered boron cantilever with a double damper for reduced weight and better audio quality. The cartridge’s dual moving coils provide better channel separation and are affixed within a strong but lightweight VC mold to reduce unwanted vibration. The cartridge uses a neodymium magnet and a permendur yoke for enhanced magnetic energy. The PCOCC (Pure Copper by Ohno Continuous Casting) coils ensure pure audio transmission. Note: Moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable. - Delivers full-range audio reproduction
- Advanced tapered boron cantilever and reduced coil weight improve the audio quality, particularly in the higher frequencies
- Neodymium magnet and permendur yoke enhance the magnetic energy
- PCOCC (Pure Copper by Ohno Continuous Casting) coil enables pure signal transfer
- High-separation, wide response dual moving coil
- VC mold limits unnecessary vibration
- Precision-cast hard aluminum alloy body enhances rigidity and the signal-to-noise ratio
In the Box Audio-Technica Consumer Dual Moving Coil Cartridge with Shibata Stylus Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer Dual Moving Coil Cartridge with Shibata Stylus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Consumer AT33SA Specs | Frequency Response | 15 to 50,000 Hz | | Channel Separation | 30 dB (1 kHz) | | Tracking Force | Vertical: 1.8 to 2.2 g (2.0 g standard) | | Recommended Load Impedance | More than 100 Ohms (when head amplifier is connected) | | Output | 0.4 mV (at 1 kHz, 5 cm/sec) | | Channel Balance | 0.5 dB (1 kHz) | | Replacement Stylus | Shibata (line contact) | | Stylus Cantilever | Solid, tapered boron | | Mount | 0.5" (1.3 cm) | | Dimensions (L x W x H) | Unit: 0.7 x 0.6 x 1.0" (16.6 x 16.0 x 26.5 mm) | | Weight | Unit: 0.24 oz (6.9 g) |
