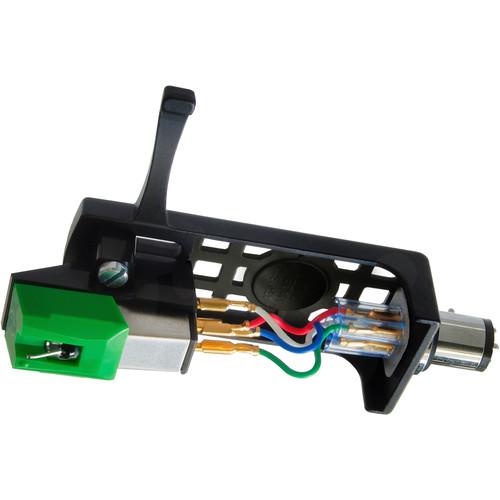

User Manual for Audio-Technica Consumer Headshell Cartridge Combo Kit Click to enlarge the picture
Contents of the user manual for the Audio-Technica Consumer Headshell Cartridge Combo Kit
- Product category: Cartridges & Stylus Audio-Technica Consumer
- Brand: Audio-Technica Consumer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Consumer Cartridges & Stylus
|
User manual for the Audio-Technica Consumer Headshell Cartridge Combo Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica Consumer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica Consumer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica Consumer product will considerably shorten its lifespan!
|
Product description The Headshell/Cartridge Combo Kit from Audio-Technica includes the AT95E Phonograph Cartridge and AT-HS10BK Headshell. The 1/2” standard mount cartridge offers clarity & detail, and is assembled with tight tolerances. The elliptical diamond stylus is designed to track record grooves with high accuracy for outstanding audio reproduction.The lightweight aluminum headshell is a universal 1/2” mount headshell for 4-pin turntable cartridges. Featuring an aluminum die-cast body, this headshell is designed to keep vibration to the bare minimum. The finger lift is positioned near the front of headshell to enable precise placement of the stylus onto the record. The headshell is equipped with gold-plated lead wires for lossless signal transmission and comes with mounting screws. - AT95E Dual Magnet Phonograph Cartridge with 1/2" Standard Mount The Audio-Technica AT95E Dual Magnet Phonograph Cartridge is designed to offer superior clarity and detail and features a standard 1/2" mount. This cartridge is meticulously assembled with notably tight tolerances. The elliptical diamond stylus is designed to track record grooves with high accuracy for superior audio reproduction. This cartridge comes with mounting hardware and a stylus guard. UPC: 042005164509
- Universal Headshell for 4-Pin Turntable Cartridge (Black) The black Universal Headshell for 4-Pin Turntable Cartridge from Audio-Technica is a lightweight universal 1/2"-mount. Featuring an aluminum die-cast body, it is designed to keep vibration to the bare minimum. The finger lift is positioned near the front of headshell to enable precise placement of the stylus onto the record. The headshell is equipped with gold-plated lead wires for lossless signal transmission and comes with mounting screws.
-
- Fits the AT-LP120-USB and AT-LP1240-USB direct-drive turntables
- Universal 1/2"-mount headshell for 4-pin turntable cartridges
- Ultra-lightweight aluminum die-cast body keeps vibration to the bare minimum
- Finger lift is positioned near the front of headshell to enable precise placement of the stylus onto the record
- Gold-plated lead wires for lossless signal transmission
- Includes mounting screws
In the Box Bundle Items AT95E Dual Magnet Phonograph Cartridge with 1/2" Standard Mount Universal Headshell for 4-Pin Turntable Cartridge (Black) Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer Headshell Cartridge Combo Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - AT95E Dual Magnet Phonograph Cartridge with 1/2" Standard Mount
| Frequency Response | 20 Hz to 20 kHz | | Channel Separation | >20 dB at 1 kHz | | Tracking Force | Range: 1.5 to 2.5 g
2 g (20 mN) recommended tracking force | | Recommended Load Impedance | 47 kOhms | | Output | 3.5 mV (1 kHz, 5 cm/sec) | | Channel Balance | Within 2 dB | | Stylus Type | 0.4 x 0.7 mil elliptical diamond stylus | | Stylus Cantilever | Alloy tube | | Mount | 0.5" (1.27 cm) | | Replacement Stylus | ATN95E | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 2.1 x 2.0 x 1.5" | - Universal Headshell for 4-Pin Turntable Cartridge (Black)
| Material of Construction | Headshell and Connector: Aluminum | | Dimensions (HxWxD) | 0.5 x 0.8 x 2.0" (14 x 21 x 52 mm) | | Weight | Excluding Lead Wire: 0.4 oz (10 g) | | | | Box Dimensions (LxWxH) | 3.6 x 2.8 x 1.6" |
