User Manual for Audio-Technica Consumer SonicFuel Wireless On-Ear Headphones Click to enlarge the picture
Contents of the user manual for the Audio-Technica Consumer SonicFuel Wireless On-Ear Headphones
- Product category: Bluetooth Headphones Audio-Technica Consumer
- Brand: Audio-Technica Consumer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Consumer Bluetooth Headphones
 |
User manual for the Audio-Technica Consumer SonicFuel Wireless On-Ear Headphones contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica Consumer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica Consumer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica Consumer product will considerably shorten its lifespan!
|

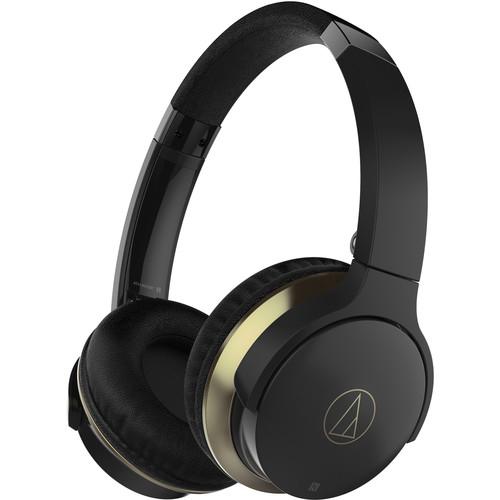

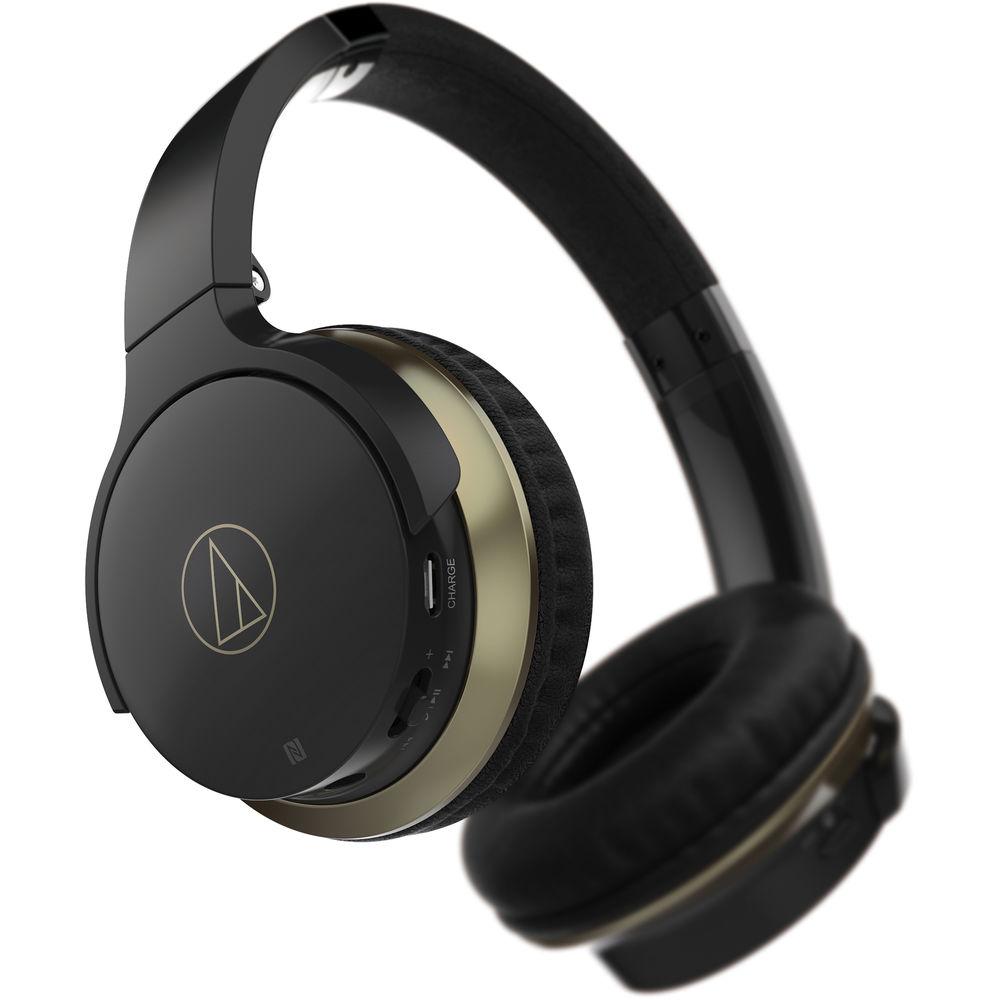

Product description Go wireless with the Audio-Technica SonicFuel Wireless On-Ear Headphones in black. These headphones have 40mm drivers that deliver frequencies from 5 Hz to 35 kHz, with top-mounted PCB assisting airflow for reduced distortion. They connect to your device via Bluetooth 4.1 and can remember up to eight devices, connecting automatically to the last-used one. NFC is on-board for easy pairing, and LED indicators display connection and battery status.

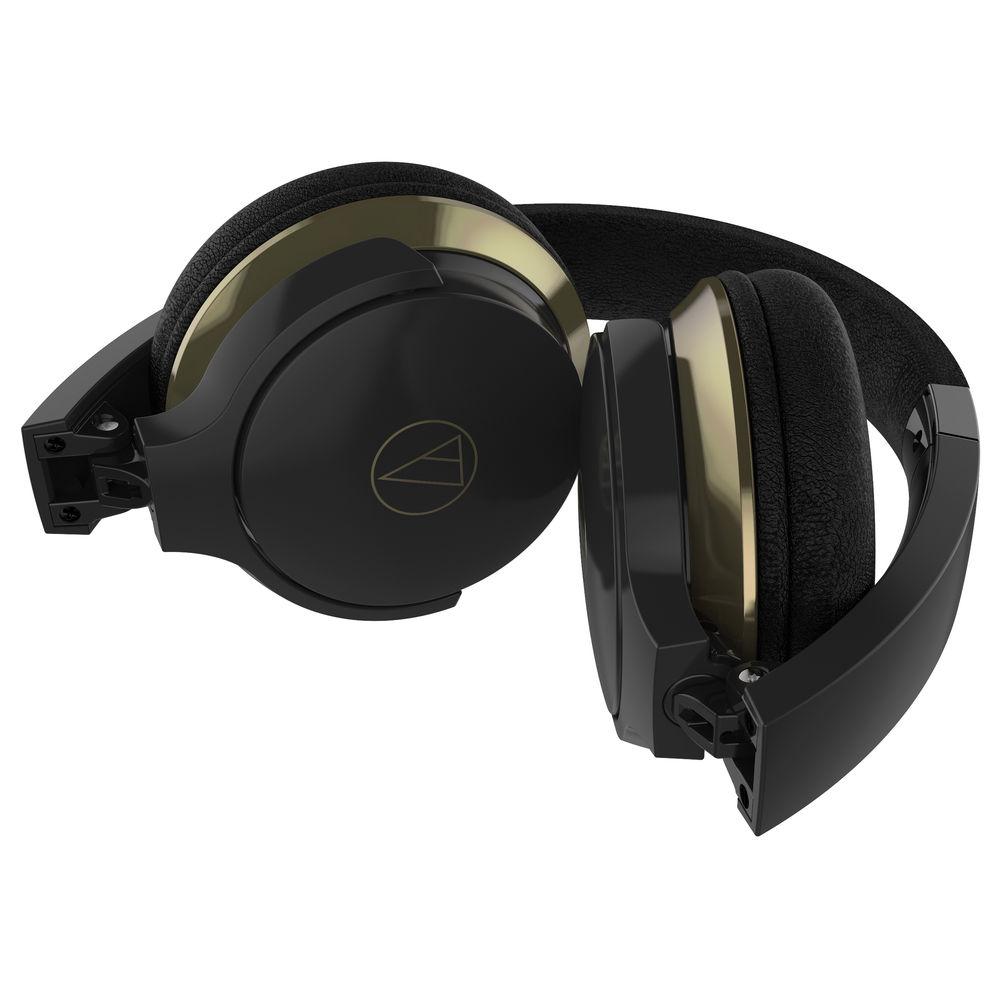

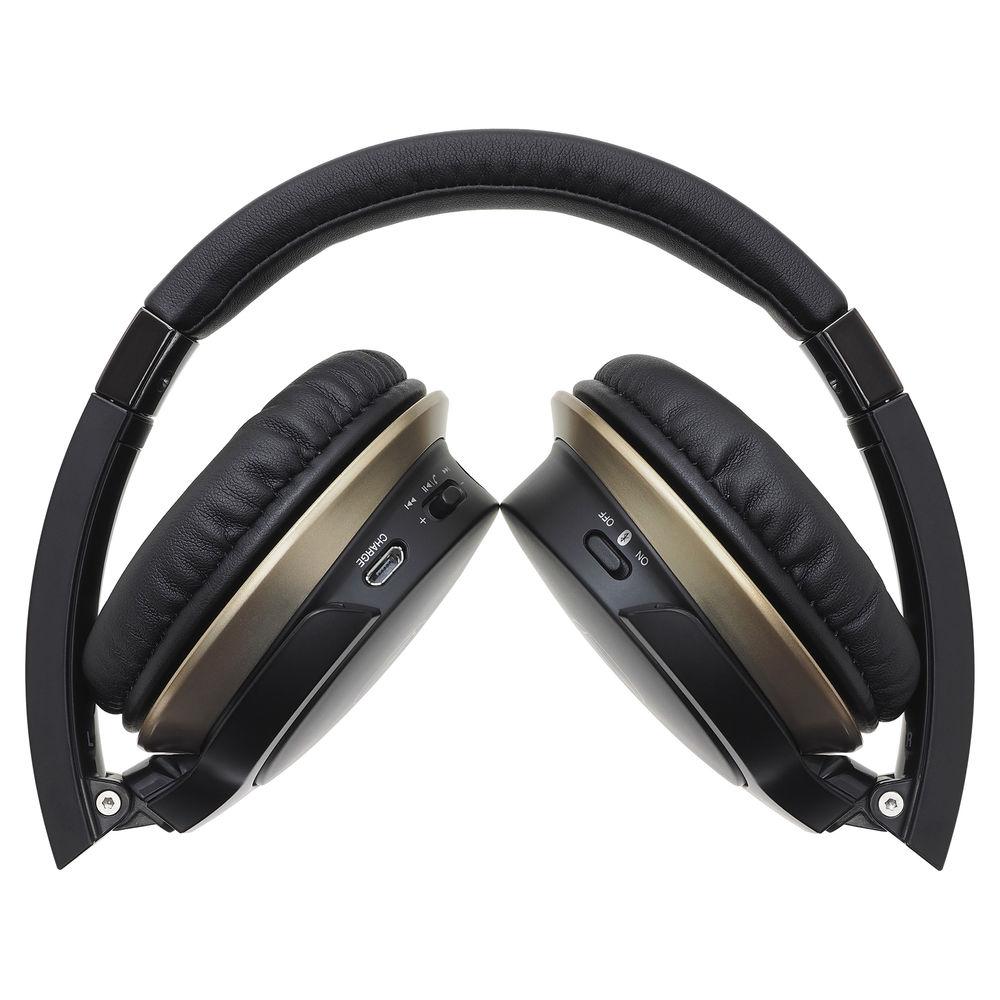

The left earcup has a microphone for calls as well as volume and playback controls. The SonicFuel has an adjustable, padded headband and folds down to a compact size for travel. A detachable cable is included with its own built-in mic and controls. The lithium-ion polymer battery lasts for up to 30 hours or up to 1000 hours on standby and takes approximately five hours to recharge with the included cable. In the Box Audio-Technica Consumer SonicFuel Wireless On-Ear Headphones (Black) 3.5mm Audio Cable Micro-USB to USB Charging Cable Limited 2-Year Warranty User Manual PDF 8.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer SonicFuel Wireless On-Ear Headphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Consumer ATH-AR3BTBK Specs | | | Driver Size | 1.57" / 40 mm | | Design | On-Ear (Supra-aural) | | | | Frequency Response | 5 Hz to 35 kHz | | Sensitivity | 97 dB | | Impedance | 41 Ohms | | Controls/Microphone Location | Cable | | | | Type | Condenser | | Pickup Pattern | Omni-Directional | | Frequency Response | 50 Hz to 4 kHz | | Sensitivity | -44 dB at 1 kHz / 1 V | | | | Supported Audio Codecs | AAC, SBC, aptX | | Bluetooth Profiles | A2DP
AVRCP
HFP
HSP | | Bluetooth Version | 4.1 | | Bluetooth Power Class | 2 | | Wireless Range | 32.8' / 10 m | | Frequency | 2.4 GHz (2402 to 2480 MHz) | | Maximum Paired Devices | 8 | | NFC | Yes | | | | Audio Connector | 1/8" / 3.5 mm Right-Angled | | Cable Length | 3.9' / 1.2 m | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Runtime | 30 Hours
1000 Hours (Standby) | | Recharge Time | 5 Hours | | DC Input Power | 5 VDC at 200 mA | | | | Operating Temperature | 41 to 104°F / 5 to 40°C | | | | LED Indicator | Yes | | Weight | 6.7 oz / 190 g | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 9.4 x 7.1 x 3.6" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 55 owners. Add your rating and experience with the product.
