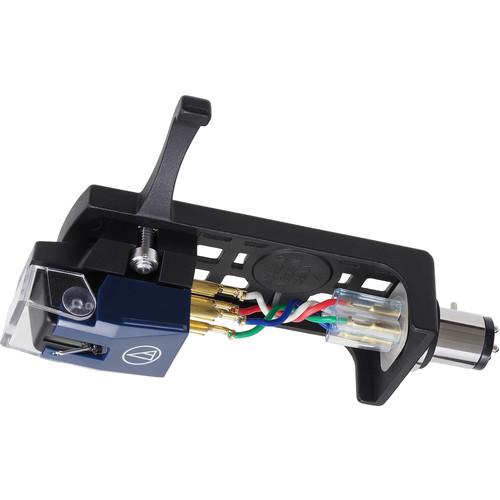

Product description The VM520EB/H Headshell and Cartridge Combo Kit from Audio-Technica includes the VM520EB elliptical bonded dual moving magnet cartridge pre-mounted on the AT-HS10BK universal 1/2"-mount headshell. The VM520EB features dual magnets that are positioned to match left and right channels in the stereo record groove and provide an increase in channel separation and an extended frequency response. Additionally, the cartridge employs an elliptical bonded stylus to track the record groove with high accuracy for high-quality audio reproduction.
The lightweight AT-HS10BK is a universal 1/2"-mount headshell designed for 4-pin turntable cartridges. The die-cast aluminum body is designed to minimize vibration and provides a finger-lift at the front position to enable precise placement of the stylus onto the record. The gold-plated lead wires offer lossless signal transmission. The headshell ships with mounting hardware. -
- VM dual-magnet cartridge with 0.3 x 0.7 mm elliptical stylus
- Aluminum cantilever
- Paratoroidal coils improve generating efficiency
- Center shield plate between the left and right channels reduces crosstalk
- Durable low-resonance polymer cartridge housing
- Universal 1/2"-mount headshell for 4-pin turntable cartridges
In the Box Audio-Technica Consumer VM520EB/H Headshell and Cartridge Combo Kit with VM520EB and AT-HS10BK 4 x Installation Screws 2 x Washers 2 x Hexagon Nuts Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer VM520EB H Headshell and Cartridge Combo Kit with VM520EB and AT-HS10BK in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Consumer VM520EB/H Specs | Frequency Response | 20 Hz to 23 kHz | | Channel Separation | 27 dB (1 kHz) | | Tracking Force | Vertical Tracking Force: 1.8 - 2.2 g (2.0 g standard) | | Stylus | Stylus Construction: Bonded round shank
Stylus Shape: 0.3 x 0.7 mil elliptical
Replacement Stylus: VMN20EB | | Recommended Load Impedance | 47 kOhms | | Output | 4.5 mV (at 1 kHz, 5 cm/sec) | | Channel Balance | 1.5 dB (1 kHz) | | Stylus Cantilever | Aluminum pipe | | Mount | 0.5" / 12.7 mm | | Coil | Coil Impedance: 2700 Ohms
Coil Inductance: 460 mH (1 kHz) | | DC Resistance | 800 Ohms | | Load Capacitance | 100 to 200 pF | | Static Compliance | 35 x 10-6 cm/dyne | | Dynamic Compliance | 8 x 10-6 cm/dyne (100 Hz) | | Vertical Tracking Angle | 23° | | Dimensions (L x W x D) | Cartridge: 0.7 x 0.7 x 1.1" / 17.3 x 17.0 x 28.2 mm
Cartridge and Headshell: 0.8 x 0.8 x 2.4" / 21.3 x 21.0 x 60.4 mm | | Weight | Cartridge: 0.2 oz / 6.4 g
Cartridge and Headshell: 0.6 oz / 16.8 g | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 4.3 x 2.9 x 2.0" |
