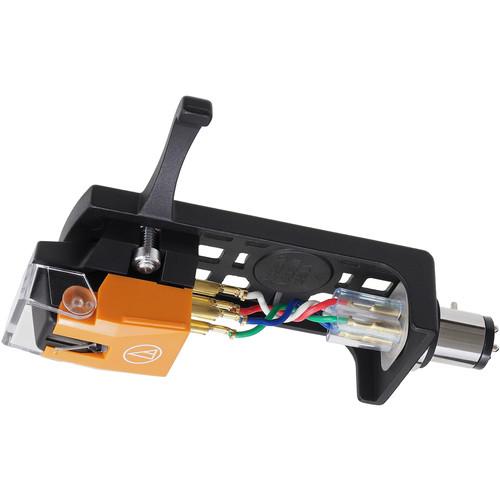

Product description The VM530EN/H Headshell and Cartridge Combo Kit from Audio-Technica includes the VM530EN elliptical nude dual moving magnet cartridge pre-mounted on the AT-HS10BK universal 1/2"-mount headshell. The VM530EN features dual magnets that are positioned to match left and right channels in the stereo record groove and improve channel separation, as well as extending the frequency response. Additionally, the cartridge employs an elliptical nude stylus that reduces the execution mass of the vibration system, enabling fuller frequency reproduction and less tracking distortion than a bonded stylus.
The lightweight AT-HS10BK is a universal 1/2"-mount headshell designed for 4-pin turntable cartridges. The die-cast aluminum body is designed to minimize vibration and provides a finger-lift at the front position to enable precise placement of the stylus onto the record. The gold-plated lead wires offer lossless signal transmission. The headshell ships with mounting hardware. -
- VM dual magnet cartridge with 0.3 x 0.7 mil elliptical nude stylus
- Aluminum cantilever
- Paratoroidal coils improve generating efficiency
- Center shield plate between the left and right channels reduces crosstalk
- Durable low-resonance polymer cartridge housing
- Universal 1/2"-mount headshell for 4-pin turntable cartridges
In the Box Audio-Technica Consumer VM530EN/H Headshell and Cartridge Combo Kit with VM530EN and AT-HS10BK 4 x Installation Screws 2 x Washers 2 x Hexagon Nuts Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer VM530EN H Headshell and Cartridge Combo Kit with VM530EN and AT-HS10BK in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Consumer VM530EN/H Specs | Frequency Response | 20 Hz to 25 kHz | | Channel Separation | 27 dB (1 kHz) | | Tracking Force | Vertical Tracking Force: 1.8 - 2.2 g (2.0 g standard) | | Stylus | Stylus Construction: Nude round shank
Stylus Shape: 0.3 x 0.7 mm elliptical
Replacement Stylus: VMN30EN | | Recommended Load Impedance | 47 kOhms | | Output | 4.5 mV (at 1 kHz, 5 cm/sec) | | Channel Balance | 1.5 dB (1 kHz) | | Stylus Cantilever | Aluminum pipe | | Mount | 0.5" / 12.7 mm | | Coil | Coil Impedance: 2700 Ohms
Coil Inductance: 460 mH (1 kHz) | | DC Resistance | 800 Ohms | | Load Capacitance | 100 to 200 pF | | Static Compliance | 35 x 10-6 cm/dyne | | Dynamic Compliance | 8 x 10-6 cm/dyne (100 Hz) | | Vertical Tracking Angle | 23° | | Dimensions (L x W x D) | Cartridge: 0.7 x 0.7 x 1.1" / 17.3 x 17.0 x 28.2 mm
Cartridge and Headshell: 0.8 x 0.8 x 2.4" / 21.3 x 21.0 x 60.4 mm | | Weight | Cartridge: 0.2 oz / 6.4 g
Cartridge and Headshell: 0.6 oz / 16.8 g | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 4.2 x 2.9 x 2.0" |
