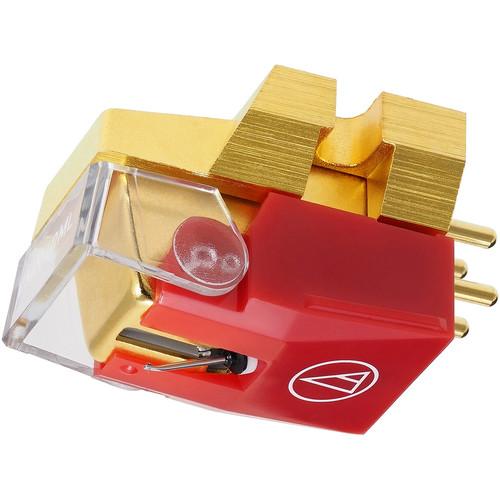

User Manual for Audio-Technica Consumer VM740ML Dual Moving Magnet MicroLine Stylus Cartridge Click to enlarge the picture
Contents of the user manual for the Audio-Technica Consumer VM740ML Dual Moving Magnet
- Product category: Cartridges & Stylus Audio-Technica Consumer
- Brand: Audio-Technica Consumer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Consumer Cartridges & Stylus
|
User manual for the Audio-Technica Consumer VM740ML Dual Moving Magnet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica Consumer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica Consumer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica Consumer product will considerably shorten its lifespan!
|
Product description The VM740ML Dual Moving Magnet MicroLine Stylus Cartridge from Audio-Technica is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for better channel separation and extended frequency response. The cartridge's MicroLine stylus allows it to trace the record groove with high accuracy, resulting in nuanced audio reproduction. The stylus also features a multilevel shape. -
- VM dual magnet cartridge with MicroLine stylus
- Aluminum tapered cantilever
- Paratoroidal coils improve generating efficiency
- Center shield plate between the left and right channels reduces crosstalk
- Die-cast aluminum alloy housing reduces vibration and adds a natural electrical shield
In the Box Audio-Technica Consumer VM740ML Dual Moving Magnet MicroLine Stylus Cartridge 4 x Cartridge Installation Screw (2 x 5mm and 2 x 10mm) 2 x Washer 2 x Hexagon Nut Non-Magnetic Screwdriver Brush Lead Wire Set Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer VM740ML Dual Moving Magnet MicroLine Stylus Cartridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Consumer VM740ML Specs | Frequency Response | 20 Hz to 27 kHz | | Channel Separation | 28 dB (1 kHz) | | Tracking Force | Vertical: 1.8 to 2.2 g (2.0 g standard) | | Stylus | Nude square shank | | Recommended Load Impedance | 47 kOhms | | Output | 4.0 mV (at 1 kHz, 5 cm/sec) | | Channel Balance | 1.0 dB (1 kHz) | | Stylus Type | 2.2 x 0.12 mil MicroLine | | Stylus Cantilever | Aluminum tapered pipe | | Mount | 1/2" | | Replacement Stylus | VMN40ML | | Impedance | 2.7 kOhms (1 kHz) | | DC Resistance | 800 Ohms | | Load Capacitance | 100 to 200 pF | | Coil Inductance (Le) | 460 mH (1 kHz) | | Static Compliance | 40 x 10-6 cm/dyne | | Dynamic Compliance | 10 x 10-6 cm/dyne (100 Hz) | | Vertical Tracking Angle | 23° | | Dimensions | 0.7 x 0.7 x 1.1" (17.3 x 17.0 x 28.2 mm) | | Weight | 0.3 oz (8.0 g) |
