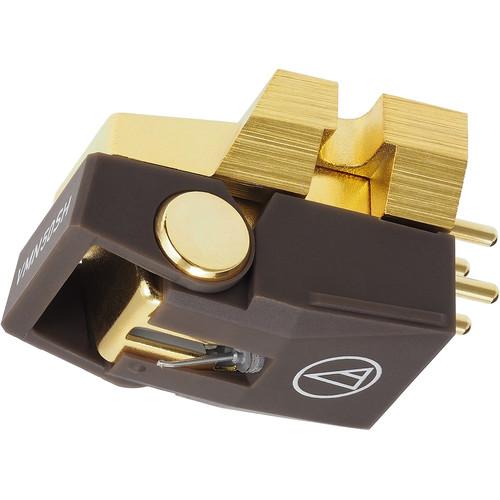

User Manual for Audio-Technica Consumer VM750SH Dual Moving Magnet Shibata Stylus Cartridge Click to enlarge the picture
Contents of the user manual for the Audio-Technica Consumer VM750SH Dual Moving Magnet
- Product category: Cartridges & Stylus Audio-Technica Consumer
- Brand: Audio-Technica Consumer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Consumer Cartridges & Stylus
|
User manual for the Audio-Technica Consumer VM750SH Dual Moving Magnet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica Consumer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica Consumer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica Consumer product will considerably shorten its lifespan!
|
Product description The VM750SH Dual Moving Magnet Shibata Stylus Cartridge from Audio-Technica is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for enhanced channel separation and extended frequency response. The cartridge's Shibata stylus provides greater surface contact with the record groove than an elliptical stylus does, resulting in the pickup of ultra-high frequencies with less groove stress and distortion. -
- VM dual magnet cartridge with Shibata stylus
- Aluminum tapered cantilever
- Paratoroidal coils improve generating efficiency
- Center shield plate between the left and right channels reduces crosstalk
- Die-cast aluminum alloy housing reduces vibration and adds a natural electrical shield
In the Box Audio-Technica Consumer VM750SH Dual Moving Magnet Shibata Stylus Cartridge 4 x Cartridge Installation Screw (2 x 5mm and 2 x 10mm) 2 x Washer 2 x Hexagon Nut Non-Magnetic Screwdriver Brush Lead Wire Set Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer VM750SH Dual Moving Magnet Shibata Stylus Cartridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Consumer VM750SH Specs | Frequency Response | 20 Hz to 27 kHz | | Channel Separation | 30 dB (1 kHz) | | Tracking | Vertical Tracking Force: 1.8 to 2.2 g (2.0 g standard) | | Stylus | Nude square shank | | Recommended Load Impedance | 47 kOhms | | Output | 4.0 mV (at 1 kHz, 5 cm/sec) | | Channel Balance | 1.0 dB (1 kHz) | | Stylus Type | 2.7 x 0.26 mil Shibata | | Stylus Cantilever | Aluminum tapered pipe | | Mount | 1/2" | | Replacement Stylus | VMN50SH | | Impedance | Coil: 2.7 kOhms (1 kHz) | | DC Resistance | 800 Ohms | | Load Capacitance | 100 to 200 pF | | Coil Inductance (Le) | 460 mH (1 kHz) | | Static Compliance | 40 x 10-6 cm/dyne | | Dynamic Compliance | 10 x 10-6 cm/dyne (100 Hz) | | Vertical Tracking Angle | 23° | | Dimensions | 0.7 x 0.7 x 1.1" (17.3 x 17.0 x 28.2 mm) | | Weight | 0.3 oz (8.0 g) | | | | Box Dimensions (LxWxH) | 4.09 x 4.09 x 1.89" |
