User Manual for Audio-Technica Consumer Wireless Over-Ear Headphones with Pure Digital Drive Click to enlarge the picture
Contents of the user manual for the Audio-Technica Consumer Wireless Over-Ear Headphones with
- Product category: Bluetooth Headphones Audio-Technica Consumer
- Brand: Audio-Technica Consumer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Consumer Bluetooth Headphones
 |
User manual for the Audio-Technica Consumer Wireless Over-Ear Headphones with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica Consumer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica Consumer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica Consumer product will considerably shorten its lifespan!
|

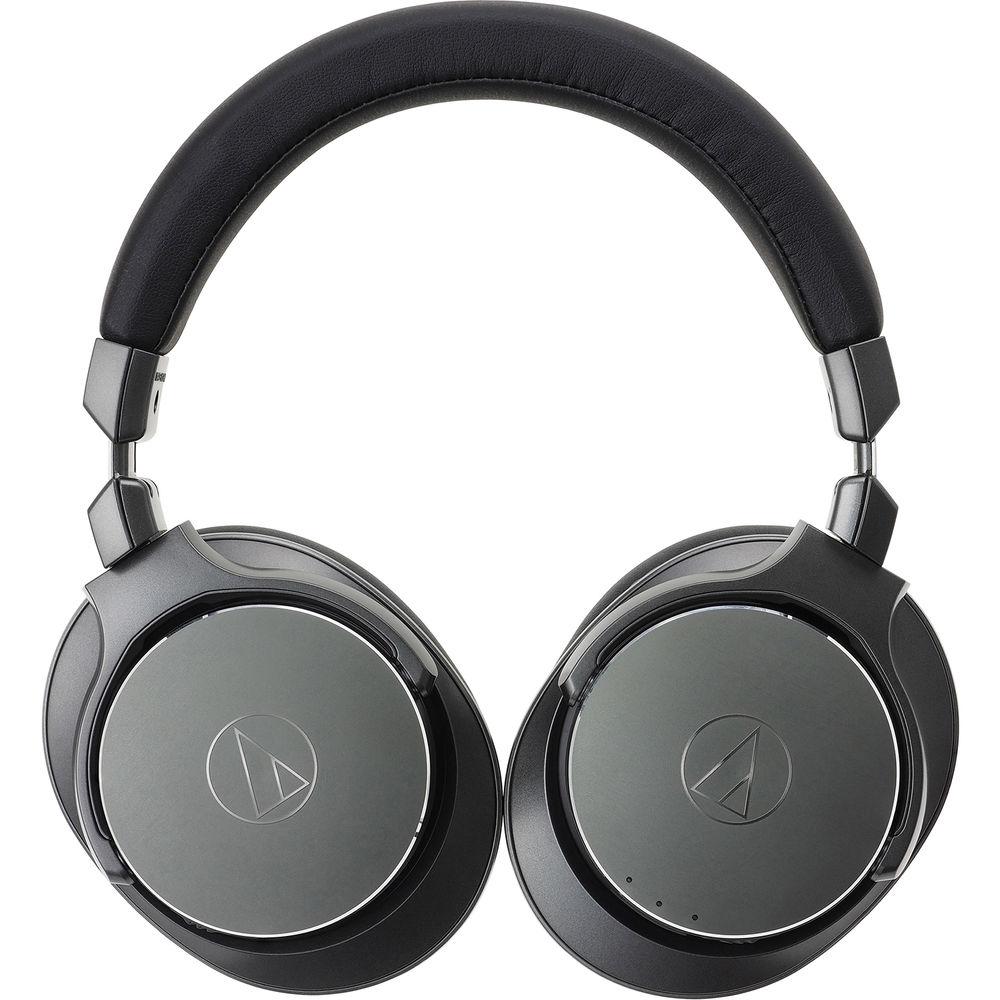

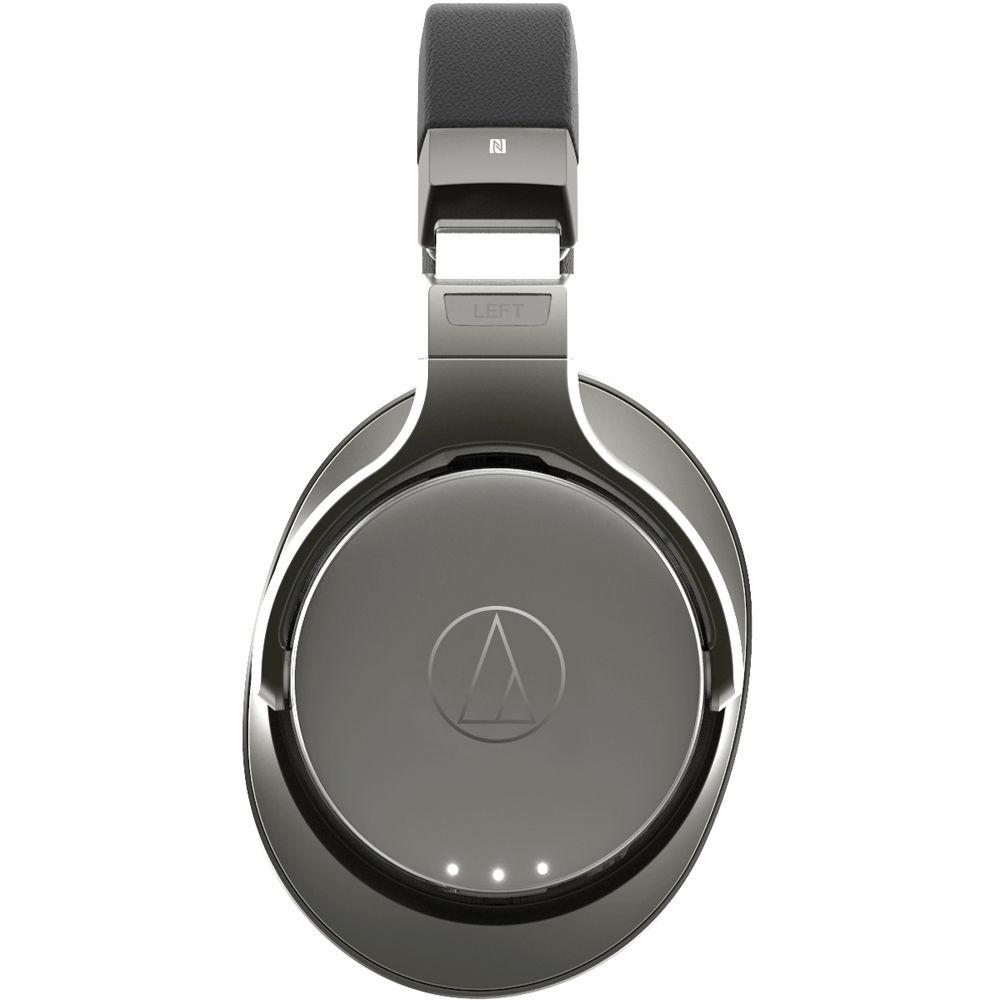

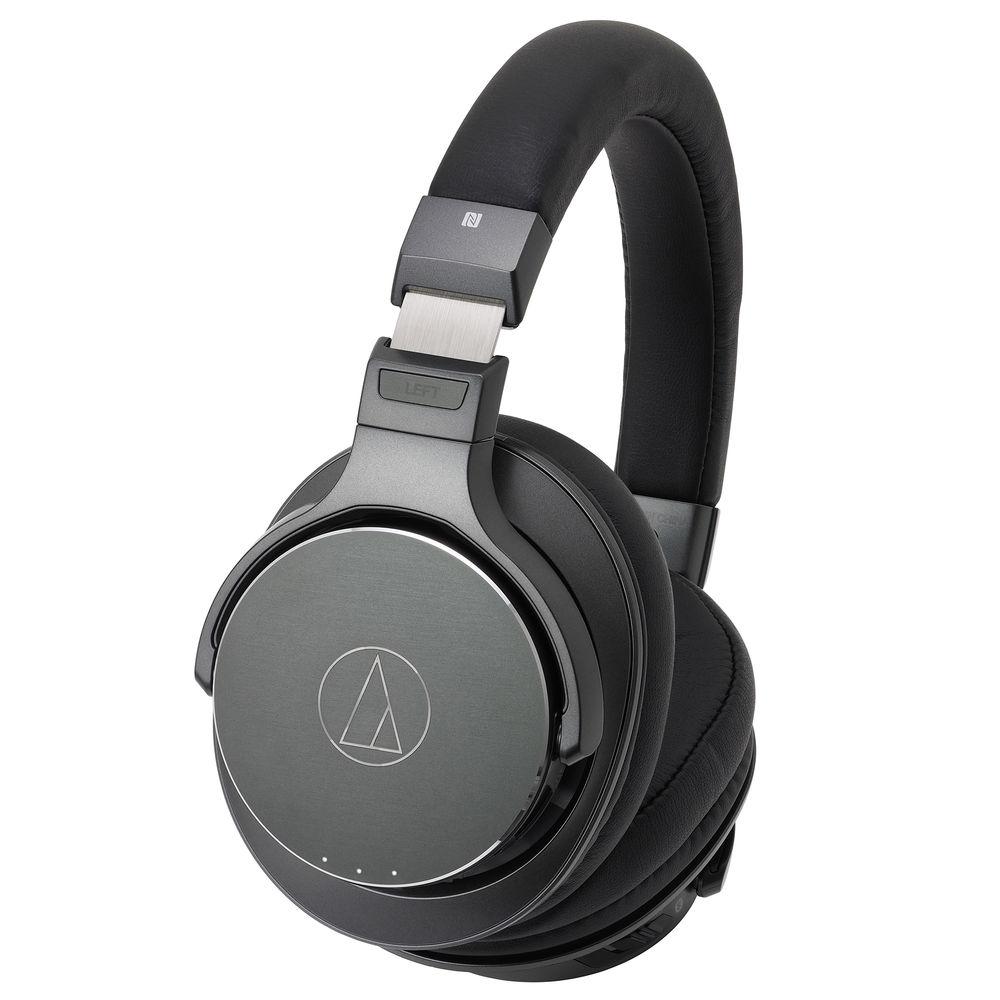

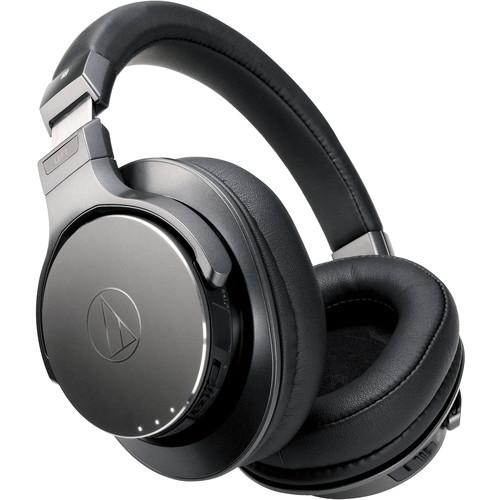

Product description Go wireless with the Audio-Technica Wireless Over-Ear Headphones with Pure Digital Drive. These on-ear headphones have 45mm drivers that deliver frequencies from 5 Hz to 40 kHz. They connect to your device via Bluetooth 4.2 and can remember up to eight devices, connecting automatically to the last one used. NFC is on-board for easy pairing, and LED indicators display connection and battery status.
The headphones have a microphone for calls as well as volume and playback controls. Memory foam-padded earcups and headband improve comfort. The lithium-ion polymer battery lasts for up to 15 hours or up to 1000 hours on standby; it takes approximately four hours to recharge with the included USB cable. - Pure Digital Drive
- Pure Digital Drive allows these headphones to operate without using the digital/audio converter found in traditional wireless headphones. It uses Trigence Semiconductor's Dnote chipset to process wireless digital audio signals, relying on the chipset's digital pulses to move the voice coil and diaphragm.
- True Motion Drivers
- The 45mm True Motion Drivers use specially designed diaphragms and lightweight bobbin-wound voice coils to reproduce sound. Acoustic resistors control airflow around the diaphragm for balanced sound. The assembly is housed in a layered aluminum chassis to reduce unwanted resonance and isolate the circuitry from the housing's acoustic space.
- Codecs
- Compatible with Qualcomm aptX HD, aptX, AAC, and SBC codecs for wireless transmission with a resolution up to 24-bit/48 kHz.
- Hi-Resolution Audio
- When connected to a computer or digital playback device with the included 6.6' audio/charging cable, the headphones can reproduce Hi-Res audio for a more detailed listening experience.

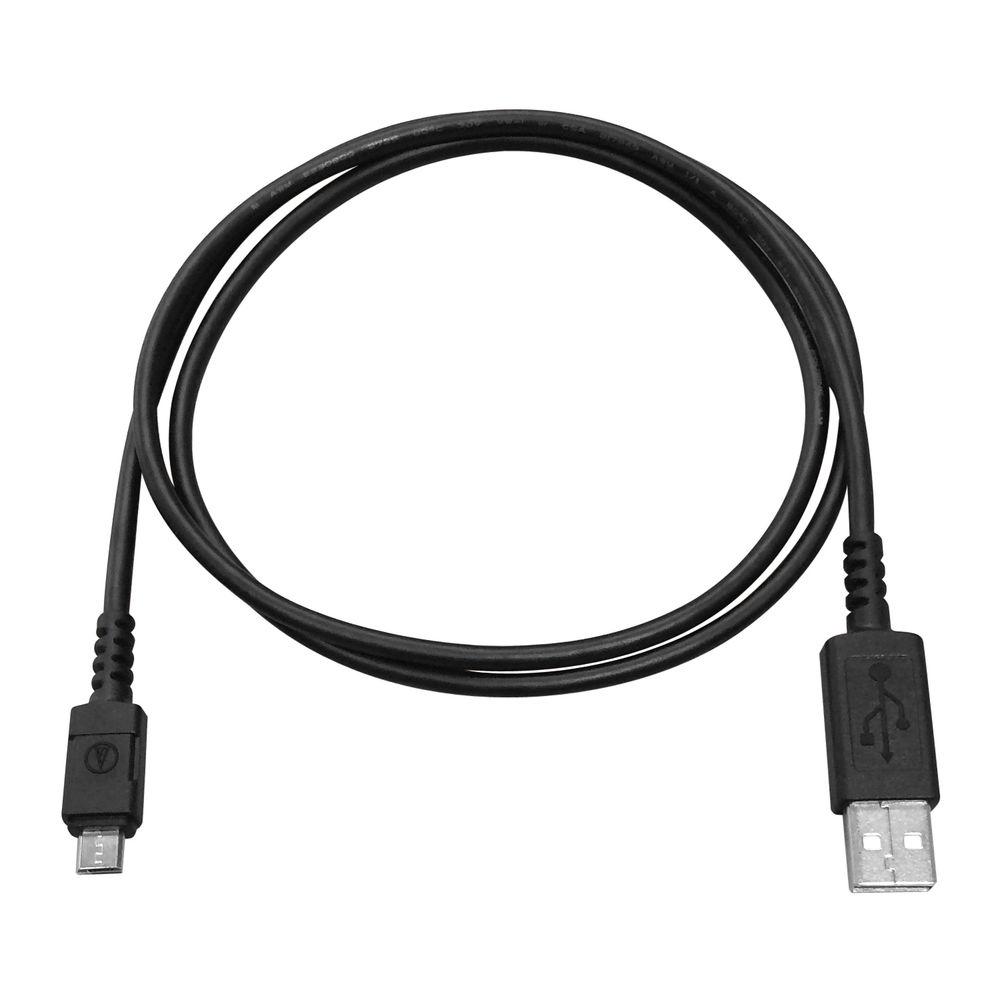

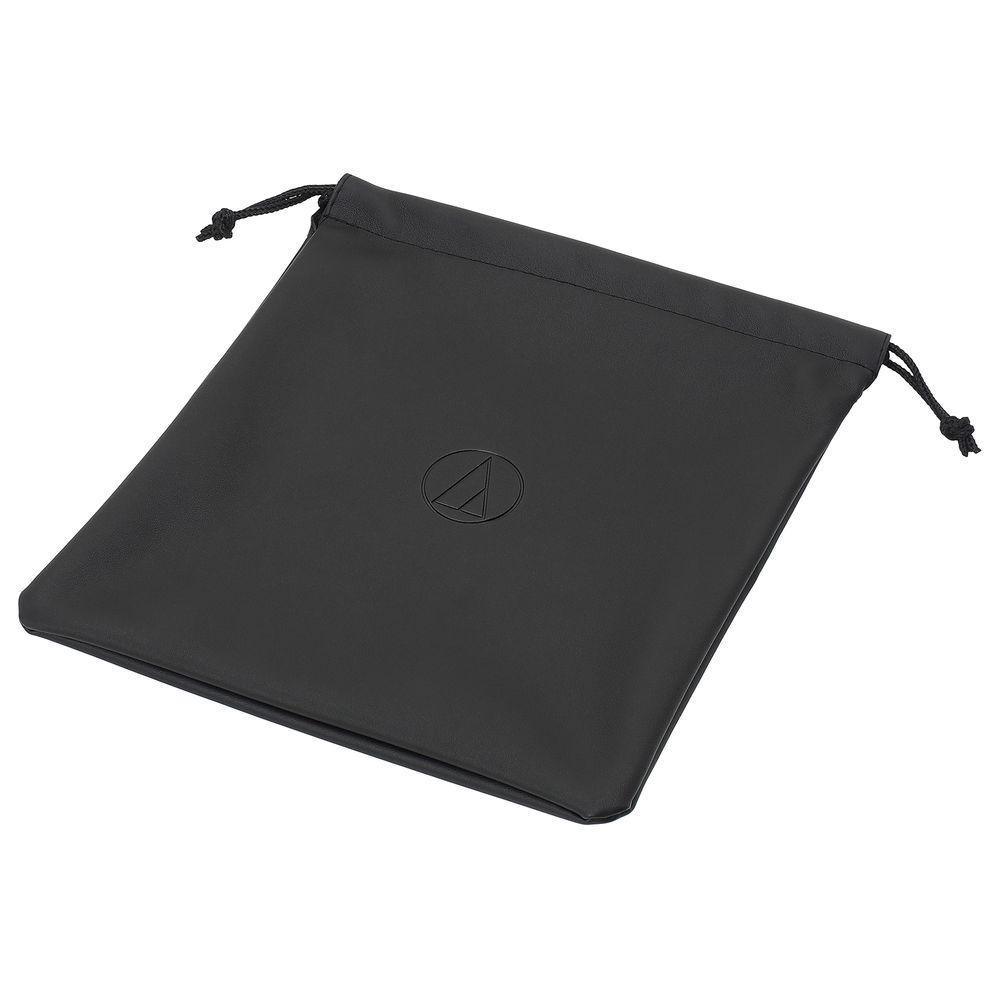

In the Box Audio-Technica Consumer Wireless Over-Ear Headphones with Pure Digital Drive Micro-USB to USB Charging/Audio Cable Carry Pouch Limited 2-Year Warranty User Manual PDF 16.3mbfyzteyvxayrfew Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Consumer Wireless Over-Ear Headphones with Pure Digital Drive in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Consumer ATH-DSR7BT Specs | | | Driver Size | 1.77" / 45 mm | | Design | Over-Ear (Circumaural) | | | | Frequency Response | 5 Hz to 40 kHz | | Sensitivity | 100 dB | | Impedance | 35 Ohms | | | | Type | Condenser | | Pickup Pattern | Omni-Directional | | Frequency Response | 50 Hz to 4 kHz | | Sensitivity | -44 dB at 1 kHz / 1 V | | | | Supported Audio Codecs | AAC, SBC, aptX, aptX HD | | Bluetooth Profiles | A2DP
AVRCP
HFP
HSP | | Bluetooth Version | 4.2 | | Bluetooth Power Class | 2 | | Wireless Range | 32.8' / 10 m | | Frequency | 2.4 GHz (2402 to 2480 MHz) | | Maximum Paired Devices | 8 | | NFC | Yes | | | | Cable Length | 6.6' / 2 m | | Headphone Charging Port | Micro-USB | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Runtime | 15 Hours
1000 Hours (Standby) | | Recharge Time | 4 Hours | | | | Operating Temperature | 41 to 104°F / 5 to 40°C | | | | LED Indicator | Yes | | Weight | 10.6 oz / 301 g | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 10.1 x 8.9 x 4.0" |
