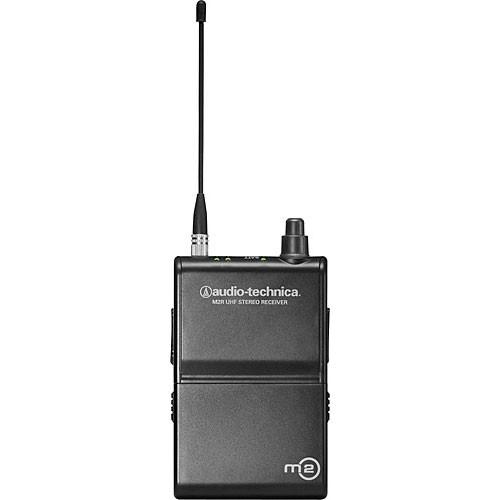

User Manual for Audio-Technica M2R Receiver for Wireless In-Ear Monitoring System Click to enlarge the picture
Contents of the user manual for the Audio-Technica M2R Receiver for Wireless In-Ear
- Product category: Receivers Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Receivers
|
User manual for the Audio-Technica M2R Receiver for Wireless In-Ear contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The Audio-Technica M2R Wireless Receiver is intended for use with the Audio-Technica Wireless In-Ear Monitoring System. The transmitter features XLR & 1/4" phone combi-connector inputs and XLR loop-through outputs to feed an audio console. There are 100 selectable frequencies, and up to 10 systems can operate simultaneously on each band. An easy to read graphic LED display on the transmitter provides all necessary information, and defeatable limiter eliminates sudden peaks in audio signal. - High-fidelity sound with clean, articulate mix allows you to hear yourself better at lower volume
- 100 selectable UHF channels
- Up to 10 simultaneous systems per frequency band
- Three receiver modes: Personal Mix, stereo, and mono
- Personal Mix Control allows volume and mix control of two independent signals at the receiver
UPC: 042005155651 In the Box Audio-Technica M2R Receiver for Wireless In-Ear Monitoring System M2R Receiver 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica M2R Receiver for Wireless In-Ear Monitoring System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica M2R Specs | RF Carrier Frequency Range | Band L: 575.000 to 608.000 MHz | | Selectable Channels | 100 | | Compatible Channels | 10 | | Operating Range | 100m (300'), typical | | Frequency Response | 60Hz to 13kHz (+/- 3 dB) | | Signal-to-Noise Ratio | Not Specified By Manufacturer | | Channel Separation | 25kHz | | RF Output Power | 10 mW/30 mW (switchable internally), 50 ohms Limited to 10 mW within 863 MHz to 865 MHz | | Frequency Selection | Not Specified By Manufacturer | | Frequency Indicators | LED | | Antenna | Antenna Input: SMA-type, 50 ohms | | Audio Input Connectors | XLRF-type/6.3mm stereo (1/4") combination connector | | Nominal Input Level | XLRF-type/6.3mm stereo, (1/4") balanced: +26dBu 6.3mm (1/4") mono, unbalanced: +26dBu | | Maximum Input Level | Not Specified By Manufacturer | | Input Pad Switch | No | | Phantom Power Protection | No | | Loop In/Out Connectors | XLR Loop-Through | | Loop I/O Nominal Input Level | Not Specified By Manufacturer | | Loop I/O Maximum Input Level | Not Specified By Manufacturer | | Limiting | Defeatable Limiter | | Power Requirements | 12-18V DC, 600 mA | | Weight | 870 g (30.7 oz), without accessories | | Dimensions | 8.30 x 5.20 x 1.70" (210 x 132 x 44mm) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 7.05 x 3.5 x 2.5" |
