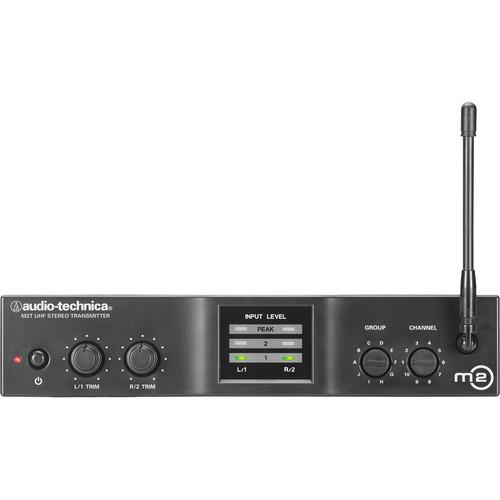

User Manual for Audio-Technica M2T Stereo Transmitter Click to enlarge the picture
Contents of the user manual for the Audio-Technica M2T Stereo Transmitter
- Product category: Transmitters Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Transmitters
|
User manual for the Audio-Technica M2T Stereo Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The M2T Stereo Transmitter from Audio Technica operates on Audio Technica's M frequency band between 614 and 647 MHz and works with the M2 wireless in-ear monitor system. It is designed to broadcast stereo signal to optional M2R bodypack receivers for in-ear monitoring. It can be used with up to 9 other M2 systems simultaneously, but can broadcast to as many M2R receivers as needed. Up to 100 selectable UHF channels helps assure interference-free operation.
The M2T has dual combo XLR/TRS line level inputs. An XLR loop output provides a true signal pass through for connecting your signal to a mixing console, recording system, or other wireless system without degradation. The unit has both squelch for static reduction as well as a pilot tone that eliminates RF interference to the receiver if the transmitter shuts down. UPC: 042005164547 In the Box Audio-Technica M2T Stereo Transmitter (M - 614 to 647 MHz) AC Adapter Rack Mount Adapters Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica M2T Stereo Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica M2T Specs | RF Power Output | 10 or 30 mW (Switchable Internally) @ 50 Ω | | Spurious Emission | Following Federal and National Regulations | | Input Connections | 2x Combo XLRF/TRS Connectors
Pin 1 and Sleeve: Ground
Pin 2 and Tip: Hot
Pin 3 and Ring: Cold | | Maximum Input Level | Combo XLRF/TRS Balanced: 26 dBu
1/4" (6.35 mm) Unbalanced: 26 dBu | | Loop Output Connector | 1x XLRM Connector
Pin 1: Ground
Pin 2: Hot
Pin 3: Cold | | Power Requirement | 12 - 18 V DC, 600 mA | | Antenna | Attached Whip | | Dimensions (W x D x H) | 8.3 x 5.2 x 1.7" (210 x 132 x 44 mm) | | Weight | 30.7 oz (870 g) | | | | Package Weight | 4.5 lb | | Box Dimensions (LxWxH) | 15.25 x 13.25 x 3.75" |
