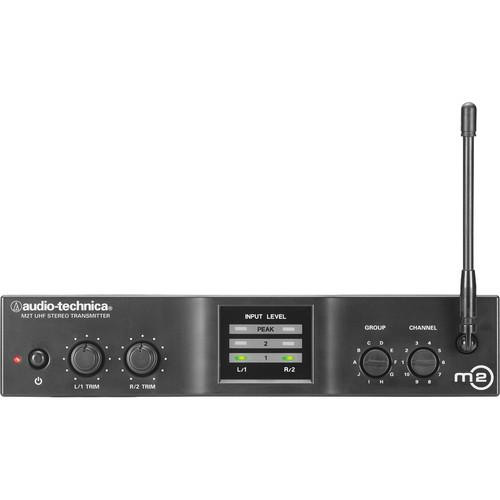

User Manual for Audio-Technica M2T Stereo Transmitter Click to enlarge the picture
Contents of the user manual for the Audio-Technica M2T Stereo Transmitter
- Product category: Transmitters Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Transmitters
|
User manual for the Audio-Technica M2T Stereo Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The Audio-Technica M2T Stereo Transmitter is a wireless UHF transmitter (frequency-agile) with an L-band operating frequency range of 575 to 600 MHz that offers 100 user-selectable frequencies. It is designed for use with the M2 Wireless In-Ear Monitor System.It also comes equipped with 2 XLR and 1/4" combo input connectors into which you can connect line-level inputs. Multiple M2R stereo receivers (sold separately) can be used on the same frequency with this stereo transmitter unit. It has a rugged design that is built to withstand road bumps while you travel. It delivers clear, natural sound for touring and installed-sound uses. Note: M2 L-Band receivers must be used only with "L" Band transmitters
For multiple-channel applications, as many as ten systems may be used together per frequency band. - Pilot tone protects against RF interference when the transmitter is turned off
- 100 selectable UHF channels
- Use any number of M2R Stereo Receivers (sold separately) on the same frequency
- LED indicators provide easy-to-read level monitoring
UPC: 042005164530 In the Box Audio-Technica M2T Stereo Transmitter (L Frequency Band, 575 to 600 MHz) AC Adapter (Country Dependant) Rack Mount Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica M2T Stereo Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica M2T Specs | | | Operating Frequencies | Band L: 575 to 600 MHz, 100 frequencies Not all frequency bands available in all areas. Please check with local regulations. | | Frequency | Step: 25 kHz (minimum) | | Modulation Mode | FM stereo | | Maximum Deviation | ±40 kHz | | Dynamic Range (Typical) | 90 dB, A-weighted | | Total Harmonic Distortion | <1% at (1 kHz, ±20 kHz Deviation) | | Frequency Response | 60 Hz to 13 kHz (±3 dB) | | RF Power Output | 10 mW/30 mW (switchable internally), 50 Ω Limited to 10 mW within 863 MHz to 865 MHz
Following national regulations | | Spurious Emission | Following federal and national regulations | | Input Connections | XLRF-type/6.3 mm stereo (1/4") combination connector
Pin 1 and Sleeve: Ground
Pin 2 and Tip: Hot
Pin 3 and Ring: Cold | | Maximum Input Level | XLRF-type/6.3 mm Stereo, (1/4") Balanced: +26 dBu
6.3 mm (1/4") Mono, Unbalanced: +26 dBu | | Loop Output Connector | XLRM-type connector
Pin 1: Ground
Pin 2: Hot
Pin 3: Cold | | Power Requirement | 12 to 18 VDC, 600 mA | | Antenna | Attached whip | | Other | Simultaneous Use: 10 channels per band (maximum recommended) | | Operating Range | 300' (100 m) for an open range environment with no interfering signals. | | Operating Temperature Range | 23 to 122°F (-5 to +50°C) Battery performance may be reduced at very low temperatures. | | Dimensions (W x D x H) | 8.30 x 5.20 x 1.70" (210.82 x 132.08 x 43.18 mm) | | Weight | 30.7 oz (870.3 g), without accessories | | | | Package Weight | 4.5 lb | | Box Dimensions (LxWxH) | 15.25 x 13.25 x 3.75" |
