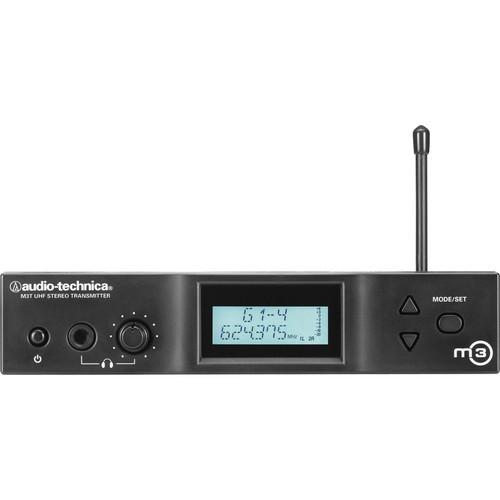

User Manual for Audio-Technica M3T Stereo Transmitter Click to enlarge the picture
Contents of the user manual for the Audio-Technica M3T Stereo Transmitter
- Product category: Transmitters Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Transmitters
|
User manual for the Audio-Technica M3T Stereo Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The M3T Stereo Transmitter from Audio Technica operates on Audio Technica's L frequency band between 575 and 608 MHz and works with the M3 wireless system. It is designed to broadcast signal to an optional M3R bodypack receiver for in-ear monitoring. It features 2 combination XLR/TRS line level inputs and three built in modes: personal mix, stereo, and mono. Its front-panel LCD display provides access to its menu options.
The unit has both squelch for static reduction as well as a pilot tone that eliminates RF interference to the receiver if the transmitter shuts down. It has up to 1,321 selectable UHF channels and can be used with up to 15 other systems simultaneously. The M3T has an XLR loop output that provides a true signal pass through. It can be used to connect your signal to a mixing console, recording system, or other wireless system. A pair of EP3 earphones is included, and can be connected to the M3T through its front-panel headphone output to monitor your signal directly from the unit. UPC: 042005164516 In the Box Audio-Technica M3T Stereo Transmitter (L- 575 to 608 MHz) EP3 Dynamic In-Ear Headphones Antenna Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica M3T Stereo Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica M3T Specs | RF Power Output | 10 or 50 mW (Switchable) @ 50 Ω
Limited to 10 mW within 863 to 865 MHz | | Spurious Emission | Following Federal and National Regulations | | Input Connections | 2x Line Level XLR/TRS Combo Connector
Pin 1 & Sleeve: Ground
Pin 2 & Tip: Hot
Pin 3 & Ring: Cold | | Output Connector | 1x 1/4" (6.35 mm) TRS Headphone Output | | Maximum Input Level | 26 dBu | | Output Power | 120 mW @ 32 Ω | | Loop Output Connector | XLRM-Type Connector
Pin 1: Ground
Pin 2: Hot
Pin 3: Cold | | Power Requirement | 12 to 18 V DC, 600 mA | | Antenna Connector | BNC, 50 Ω | | Dimensions (WxDxH) | 8.30 x 5.20 x 1.70" (210 x 132 x 44 mm) | | Weight | 32.8 oz (930 g) | | | | Package Weight | 4.5 lb | | Box Dimensions (LxWxH) | 15.25 x 13.25 x 3.75" |
