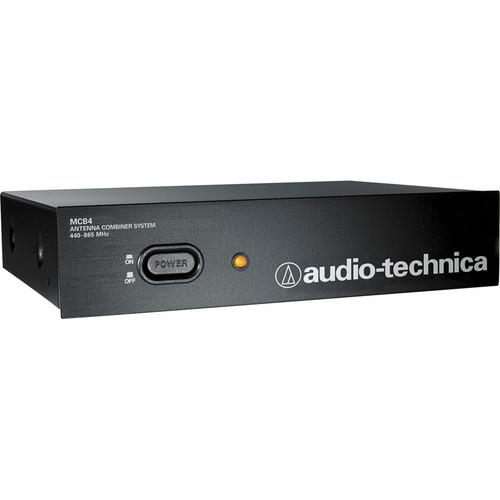

Product description The MCB4 from Audio-Technica allows you to combine the signals of up to 4 of the M3 wireless transmitters onto a single antenna, reducing rack clutter. Perfect for use with an M3 wireless monitoring system, the combiner can also be used with other wireless systems that use BNC connections and operate in the 440-865MHz range.
The combiner has one BNC output and 4 isolated BNC transmitter inputs. It also has 4 jacks on the rear panel that provide 12VDC power to as many as 4 transmitters. The jacks are controlled by the unit's main power switch for convenience. The power supplies are protected against short circuits, and a set of DC cables are included. The unit has an all-metal construction for durability and resistance to RF interference. - Combine the signals of up to 4 of the M3 wireless in-ear monitor transmitters onto a single antenna to reduce rack clutter
- Can also be used with other wireless systems that use BNC connections and operate in the 440-865MHz range
- One BNC output and 4 isolated BNC transmitter inputs
- Centralized power supply with 4 jacks that provide 12VDC power to transmitters. Jacks are controlled by the main power switch, and 4 DC cables are included. Short circuit protection is built in
- Metal chassis provides durability and resistance to RF interference for clean signals with low distortion
- Rack adapters and hardware for front-mounting the antenna are included
UPC: 042005162932 In the Box Audio-Technica MCB4 Antenna Combiner for M3 Power Cable 5 x BNC RF Cables (22') 4 x DC Power Cables Hardware Kit for Rack and Antenna 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica MCB4 Antenna Combiner for M3 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica MCB4 Specs | Bandwidth | 440-865MHz | | VSWR | < 1.7:1 | | System Gain | 0dB | | Impedance | 50 Ohms | | Connectors | 4 x BNC Inputs
1 x BNC Output | | Input Power | +20dBm or 100mW | | Third Order Intercept Point (3 OIP) | > 25dBm | | Power Supply | Rated for 5A @ 12VDC or 60W
Input Voltage 100-240VAC | | Power Output | 4 x 12VDC, 600mA (Optional Transmitter Output) | | Dimensions (WxDxH) | 8.27 x 6.93 x 1.8" (210 x 176 x 46mm) | | Weight | 2.2 lbs (1kg) | | | | Package Weight | 0.41 lb | | Box Dimensions (LxWxH) | 15.3 x 13.3 x 3.5" |
