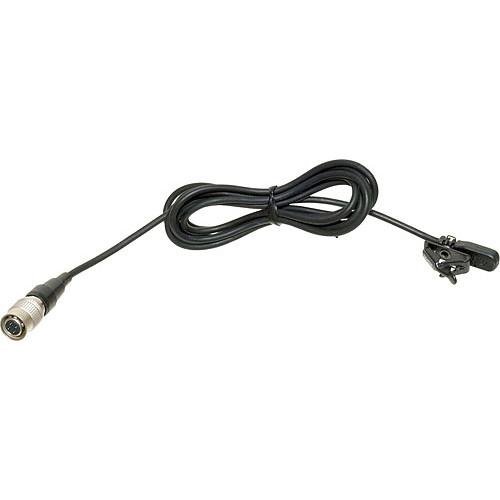

User Manual for Audio-Technica MT830cW-TH Omnidirectional Lavalier Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica MT830cW-TH Omnidirectional Lavalier Condenser Microphone
- Product category: Microphones for Wireless Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Microphones for Wireless
|
User manual for the Audio-Technica MT830cW-TH Omnidirectional Lavalier Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The beige Audio-Technica MT830cW-TH is a miniature omnidirectional lavalier condenser microphone offering wideband sound pickup with minimum visibility for lecturers, theater performers, and on-screen talent in television production and live stage applications. It features a 4.6' cable terminated with a locking 4-pin Hirose connector, enabling compatibility with Audio-Technica UniPak wireless transmitters. The omnidirectional polar pattern ensures consistent responsiveness regardless of the mic's angle, and its 30 Hz to 20 kHz frequency response delivers accuracy across the frequency spectrum. The MT830cW-TH includes a clothing clip and windscreens. - Small size provides excellent yet unobtrusive sound pickup
- High intelligibility for lecturers, stage/TV performers, and singers
- Wide-range capability ensures clean, accurate reproduction
- Omnidirectional lavalier microphone with locking 4-pin Hirose connector for use with Audio-Technica UniPak transmitters
UPC: 042005307500 In the Box Audio-Technica MT830cW-TH Omnidirectional Lavalier Condenser Microphone (Beige, Locking 4-Pin Hirose Connector) AT8420 - Lavalier Tie / Clothing Clip AT8130 - Set Of 3 Miniature Windscreen Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica MT830cW-TH Omnidirectional Lavalier Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica MT830cW Specs | | | Sound Field | Mono | | Operating Principle | Pressure Operated | | Transducer | Condenser | | Polar Pattern | Omnidirectional | | Frequency Range | 30 Hz to 20 kHz | | Signal to Noise Ratio | 67 dB | | Maximum SPL | 135 dB SPL | | Impedance | 200 Ohms | | Sensitivity | -37 dB | | Dynamic Range | 108 dB | | | | Output Connector | 4-Pin Hirose | | Cable Length | 4.59' / 1.4 m | | Operating Voltage | 11 to 52 V | | Operating Current Consumption | 2 mA | | Length | 0.62" / 15.8 mm | | Diameter | 0.33" / 8.3 mm | | Weight | 0.05 oz / 1.3 g | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 7.0 x 4.0 x 1.5" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 86 owners. Add your rating and experience with the product.
