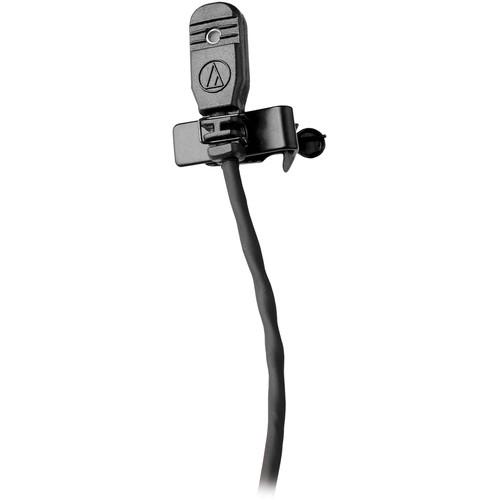

User Manual for Audio-Technica MT830R - Omni-Directional Lavalier Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica MT830R - Omni-Directional Lavalier Condenser
- Product category: Lavalier Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Lavalier Microphones
|
User manual for the Audio-Technica MT830R - Omni-Directional Lavalier Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description Essential Guide on How to Mic Talent for Video Read More The MT830R is a subminiature condenser microphone intended to be worn on the clothing of performers for excellent yet unobtrusive sound pickup. The wide-range capability of the MT830R ensures clean, accurate reproduction with high intelligibility for lecturers, singers, stage and TV performers, as well as musical instruments. Its small size makes the MT830R ideal for use in applications where minimum visibility is required. - Small size provides excellent yet unobtrusive sound pickup
- High intelligibility for lecturers, stage/TV performers and singers
- Wide-range capability ensures clean, accurate reproduction
- 25' (7.6 m) cable permanently attached to mic, TA3F connector at power module
UPC: 042005308453 In the Box Audio-Technica MT830R - Omni-Directional Lavalier Condenser Microphone (AT8533) Power Module (AT8420) Clothing Clip 3 (AT8130) Windscreens 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica MT830R - Omni-Directional Lavalier Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica MT830R Specs | Type | Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 30 Hz - 20 kHz | | Dynamic Range (Typical) | 107 dB, (1 kHz at Maximum SPL) | | Signal-to-Noise Ratio | 70 dB, (1 kHz at 1 Pa) | | Maximum Input Sound Level | 131 dB, (1 kHz at 1% THD) | | Power Requirements | Phantom, (9 - 52v, 2 mA Typical) | | Output Impedance | 200 Ohms | | Output Connectors | XLR-3M Type (from AT8533 Power Module)
TA3F Type (from Microphone) | | Pad | None | | Low Frequency Roll-Off | None | | Applications | Broadcast, Sound Reinforcement and Recording Usage. | | Dimensions | Microphone: 0.62 x 0.33 x 0.19" (15.8 x 8.4 x 4.83mm) HxWxD
Power module: 3.13 x 2.48 x 0.83" (79.5 x 63 x 21.1mm) HxWxD
Cable: 25' (7.6 m) Long Permanantly Attached to Microphone | | Weight | Microphone: 0.05 oz. (1.4 g)
Power Module: 1.81 oz. (51.3 g) | | | | Package Weight | 0.58 lb | | Box Dimensions (LxWxH) | 9.8 x 5.2 x 2.8" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 67 owners. Add your rating and experience with the product.
