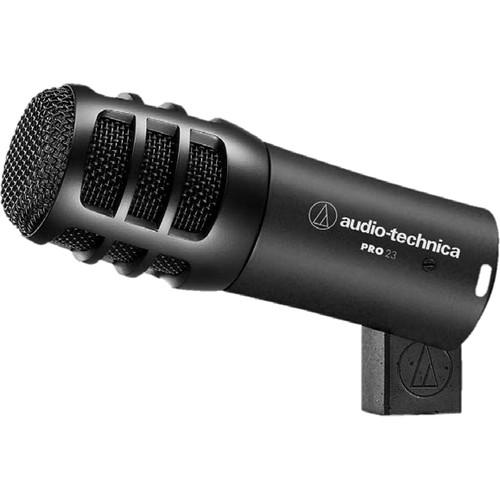

User Manual for Audio-Technica PRO 23 Cardioid Dynamic Instrument Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica PRO 23 Cardioid Dynamic Instrument
- Product category: Dynamic Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Dynamic Microphones
|
User manual for the Audio-Technica PRO 23 Cardioid Dynamic Instrument contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description Designed for snare drums and tom toms, the Audio-Technica PRO 23 is a dynamic microphone with a low-profile design. This design allows you to place the microphone close to the drum without getting in the drummer's way, and therefore, is suitable for both live and recording scenarios.
The PRO 23 offers an integrated mount that, when coupled with the included AT8665, allows you to position the mic on the rim of the drum; this makes the whole affair rather convenient in touring scenarios. An all metal construction adds to the durability.
On to the properties of the mic itself, then, which include a frequency response of 100 Hz to 12 kHz, as well as a construction designed to handle both fast transients and high SPLs. The dynamic capsule provides a cardioid polar pattern, so that you may position the mic to reject sounds you wouldn't want, such as the hi-hat (when miking the snare), or the snare (when miking the toms). A soft carry-pouch is included with the PRO 23. - Key Features at a Glance
-
- Geared toward snares and toms
- All-metal construction, suitable for touring
- Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
- Low-profile percussion-style design with built-in adjustable stand mount
- Included AT8665 drum mount allows the mic to be mounted to the rim of the drum
UPC: 042005198191 In the Box Audio-Technica PRO 23 Cardioid Dynamic Instrument Microphone Carry Pouch Drum Microphone Clamp eveaeyscyytxasavfyayzvbadwzxrwtdzzvy Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica PRO 23 Cardioid Dynamic Instrument Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica PRO23 Specs | | | Sound Field | Mono | | Transducer | Dynamic | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 100 Hz to 12 kHz | | Impedance | Cardioid: 500 Ohms | | Sensitivity | Cardioid: -58 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 4.46" / 113.2 mm | | Diameter | 1.63" / 41.5 mm Diameter of head | | Weight | 11.43 oz / 324 g | | | | Package Weight | 1.285 lb | | Box Dimensions (LxWxH) | 9.75 x 5.25 x 3.1" |
