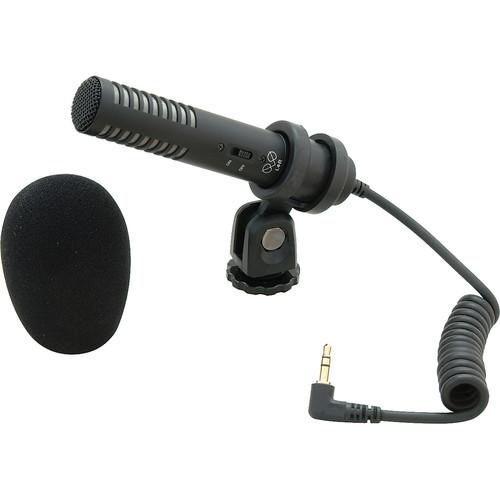

User Manual for Audio-Technica Pro-24CM - Stereo Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica Pro-24CM - Stereo Microphone
- Product category: Stereo & Specialty Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Stereo & Specialty Microphones
|
User manual for the Audio-Technica Pro-24CM - Stereo Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The Audio-Technica Pro-24CM Compact Stereo Condenser Microphone delivers pro-level stereo reproduction for video camera mounting. The compact Pro-24CM features a pair of cardioid elements in an X-Y configuration to provide the spatial impact and realism of a live sound field. The result is a realistic stereo sound with pristine fidelity and minimal noise. The condenser element is powered with an LR44 battery or with plug-in power wherever provided. - True X/Y Stereo Capturing
- The Pro-24CM features two capsules mounted in an X/Y position for true spatial impact and realism of a live sound field.
- LR44 or Plug-in Power Capable
- Battery-free operation when used with recording devices that provide plug-in power at the mic input.
- Compact Design
- Compact, lightweight design is perfect for camera-mount use.
In the Box Audio-Technica Pro-24CM - Compact Stereo Condenser Microphone with Camera Shoe Mount Video Camera Shoe Mount LR44 Battery Windscreen Soft Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Pro-24CM - Stereo Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Pro-24CM Specs | Transducer | Fixed-charge back plate, permanently polarized condenser | | Polar Pattern | X/Y Stereo | | Frequency Response | 100Hz - 17kHz | | Dynamic Range (Typical) | 82dB, 1kHz at Max SPL | | Signal-to-Noise Ratio | 57dB, 1kHz at 1 Pa | | Maximum Input Sound Level | 119dB SPL, 1 kHz at 1% T.H.D. | | Power Requirements | 2-10VDC plug-in power | | Output Impedance | 600 ohms | | Output Connectors | 3.5 mm stereo mini plug on cable | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions (LxDiameter) | 4.59 x 0.83" (116.5 x 21mm) | | Weight | 3.9 oz (111 g) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 12.7 x 8.8 x 4.0" |
Rating78% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
