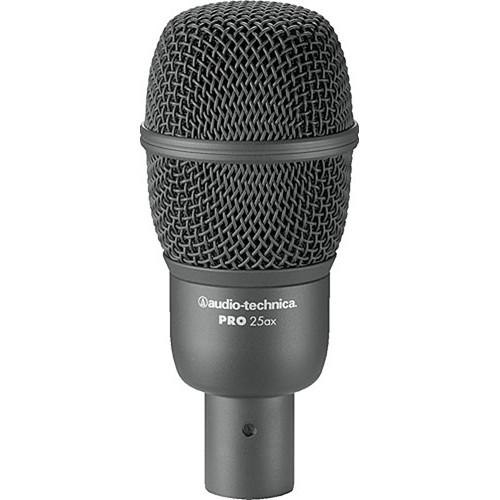

User Manual for Audio-Technica PRO 25ax Hypercardioid Dynamic Instrument Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica PRO 25ax Hypercardioid Dynamic Instrument
- Product category: Instrument Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Instrument Microphones
|
User manual for the Audio-Technica PRO 25ax Hypercardioid Dynamic Instrument contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The Audio-Technica PRO 25ax is a dynamic instrument microphone with a hypercardioid polar pattern and high Sound Pressure Level (SPL) capability. Tailored for instruments with high SPL response, the PRO 25ax is capable of reproducing transient audio peaks and excessively high levels at close proximity without noise and distortion. The microphone delivers a warm low-frequency response with excellent presence. The hypercardioid pattern is most effective in minimizing noise and audio at the off-axis sections of the capsule. The pattern is effective in minimizing "leaks" from adjacent signal sources or feedback caused by nearby monitors or speakers. The PRO 25ax is a viable choice for capturing kick drum, percussion, brass and other highly dynamic instruments. - Hypercardioid Pattern
- The hypercardioid polar pattern is most effective in rejecting off-axis noise caused by ambiance, adjacent instruments and monitors.
- High SPL Capability
- The high Sound Pressure Level capability enables the PRO 25ax to accurately reproduce transient peaks without noise and distortion.
- Warm Frequency Response
- The PRO 25ax features a warm frequency response with excellent presence.
UPC: 042005134267 In the Box Audio-Technica PRO 25ax Hypercardioid Dynamic Instrument Microphone 8471 Isolation Clamp acdcdrvbcfafeyqbevwfferyrvd 5/8"-27 to 3/8"-16 Threaded Adapter Protective Pouch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica PRO 25ax Hypercardioid Dynamic Instrument Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica PRO 25ax Specs | Transducer | Dynamic | | Polar Pattern | Hypercardioid | | Frequency Response | 30 Hz to 12 kHz | | Sensitivity | -54 dB (1.9 mV) re 1 V at 1 Pa | | Dynamic Range (Typical) | Not specified by manufacturer | | Signal-to-Noise Ratio | Not specified by manufacturer | | Maximum Input Sound Level | Not specified by manufacturer | | Power Requirements | Dynamic Element - No External Power Required | | Output Impedance | 600 Ohms | | Output Connector | 3-pin XLR | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 4.45 x 1.97" / 113 x 50 mm (Length x Diameter) | | Weight | 8.1 oz / 230 g | | | | Package Weight | 1.06 lb | | Box Dimensions (LxWxH) | 9.8 x 5.1 x 2.9" |
