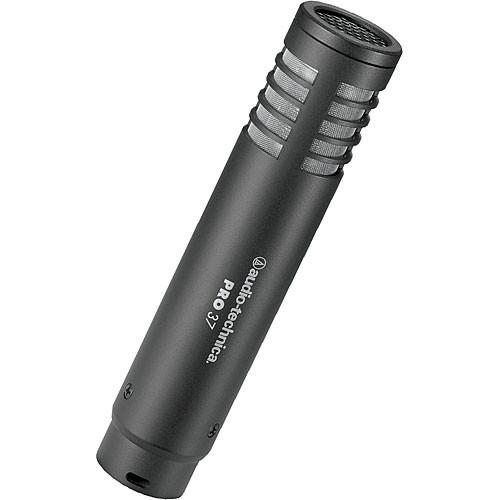

User Manual for Audio-Technica Pro 37 Small-Diaphragm Cardioid Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica Pro 37 Small-Diaphragm Cardioid Condenser
- Product category: Small Diaphragm Condenser Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Small Diaphragm Condenser
|
User manual for the Audio-Technica Pro 37 Small-Diaphragm Cardioid Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The PRO 37 Small-Diaphragm Cardioid Condenser Microphone from Audio-Technica is designed for capturing instruments and vocals in professional recording and sound reinforcement applications. It can be used with guitars, overheads, piano, group vocals, and X/Y style stereo capturing when used in tandem. The microphone's cardioid element features a low-mass design for maximum SPL handling, resulting in accurate reproduction of dynamic signal sources such as drums and percussion, without noise and distortion. The cardioid polar pattern minimizes noise at the off-axis sections of the microphone capsule, reducing feedback and ambiance. The low profile of the PRO 37 enables flexible placement and positioning. It includes a microphone stand clamp, an adapter, a windscreen, and a soft protective pouch. - Cardioid Polar Pattern
- The cardioid polar pattern minimizes noise and ambiance at the off-axis sections of the capsule.
- High SPL Handling
- The low-mass diaphragm provides high SPL handling, resulting in minimized noise and distortion caused by peaking, transient audio signal.
- Low Profile Design
- The low profile design enables easy microphone positioning and placement.
UPC: 042005134304 In the Box Audio-Technica Pro 37 Small-Diaphragm Cardioid Condenser Microphone AT8405a Snap-in Microphone Stand Clamp AT8159 Small Foam Windscreen 5/8"-27 to 3/8"-16 Threaded Adapter Soft Protective Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Pro 37 Small-Diaphragm Cardioid Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Pro 37 Specs | | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 30 Hz to 15 kHz | | Signal to Noise Ratio | 65 dB | | Maximum SPL | 141 dB SPL | | THD | 1% | | Impedance | 200 Ohms | | Sensitivity | -42 dB | | Dynamic Range | 112 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2.0 mA | | Operating Voltage | 11 to 52 V | | Length | 3.90" / 99 mm | | Diameter | 0.83" / 21 mm | | Weight | 1.73 oz / 49 g | | | | Package Weight | 0.63 lb | | Box Dimensions (LxWxH) | 9.6 x 5.25 x 2.85" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 64 owners. Add your rating and experience with the product.
