User Manual for Audio-Technica PRO 47T - 12.4" Cardioid Condenser Gooseneck Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica PRO 47T - 12.4" Cardioid
- Product category: Gooseneck Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Gooseneck Microphones
 |
User manual for the Audio-Technica PRO 47T - 12.4" Cardioid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

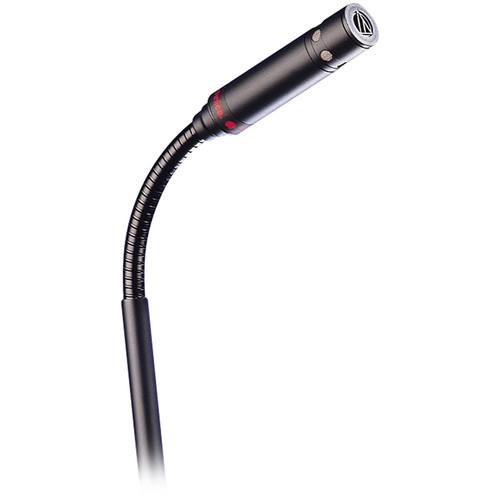

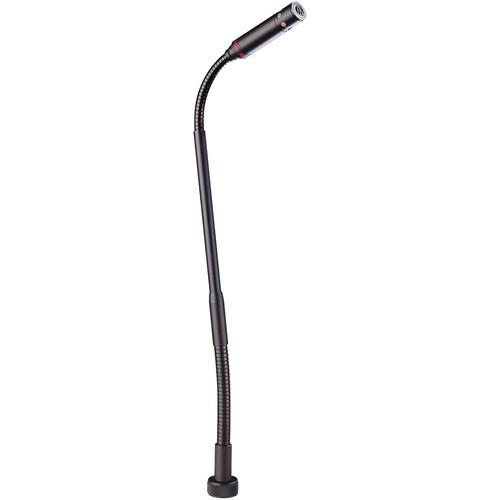

Product description The Audio Technica Pro 47T is a uni-directional (cardioid) condenser goose-neck microphone intended for conferences, houses of worship, industrial use and more. The microphone stands 12.40" above the mounting surface and features a miniature cardioid microphone. It's cardioid pattern provides maximum gain before feedback and rejects un-wanted noise at the off axis sections of the microphone. The element is made to withstand sound pressure levels up to 134 dB, resulting in low distortion during loud signal peaks. The small-diameter goose-neck is easy to manipulate for proper positioning. - Cardioid Polar Pattern
- The Cardioid polar pattern is effective in rejecting noise at the off-axis sections while providing maximum output before feedback.
- High SPL
- The element is designed to handle Sound Pressure Levels up to 134dB.
- Flexible Goose Neck Design
- The flexible goose-neck provides easy manipulation for proper positioning.

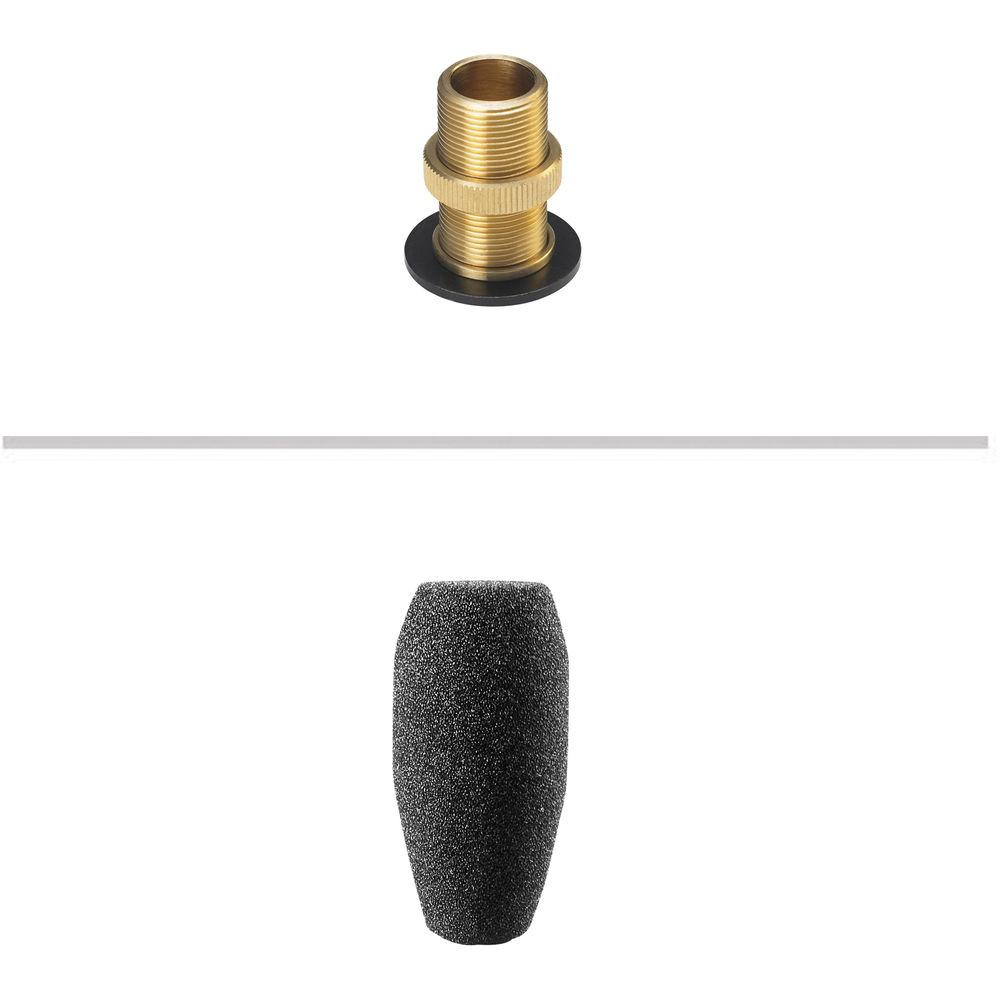

UPC: 042005308521 In the Box Audio-Technica PRO 47T - 12.4" Cardioid Condenser Gooseneck Microphone AT8146 Foam Windscreen AT8425 5/8"-27 Threaded Mounting Stud Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica PRO 47T - 12.4" Cardioid Condenser Gooseneck Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica Pro 47T Specs | Transducer | Fixed-charge back plate permanently polarized condenser | | Polar Pattern | Cardioid (Unidirectional) | | Frequency Response | 70-16,000 Hz | | Dynamic Range (Typical) | 106dB, 1kHz at MAX SPL | | Signal-to-Noise Ratio | 66dB, 1 kHz at 1% Pa | | Maximum Input Sound Level | 134dB SPL, 1kHz at 1% T.H.D. | | Power Requirements | 9-52V DC, 2mA typical | | Output Impedance | 100 ohms | | Output Connectors | 3-pin XLR Male | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | .47 x 12.40" (12 x 315mm) Length x Diameter | | Weight | 2.2 oz (63 grams) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 23.8 x 1.6 x 1.5" |
