Audio-Technica Pro 47TL ProPoint Series Stand

Search your instruction manual in PDF to download

User Manual for Audio-Technica Pro 47TL ProPoint Series Stand Mount Condenser Gooseneck Microphone

Click to enlarge the picture
Audio-Technica Pro 47TL ProPoint Series Stand Mount Condenser Gooseneck Microphone Contents of the user manual for the Audio-Technica Pro 47TL ProPoint Series Stand
  • Product category: Gooseneck Microphones Audio-Technica
  • Brand: Audio-Technica
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Audio-Technica Gooseneck Microphones

Audio-Technica Pro 47TL ProPoint Series Stand Mount Condenser Gooseneck Microphone Audio-Technica Pro 47TL ProPoint Series Stand Mount Condenser Gooseneck Microphone
User manual for the Audio-Technica Pro 47TL ProPoint Series Stand contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Audio-Technica product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!



Product description

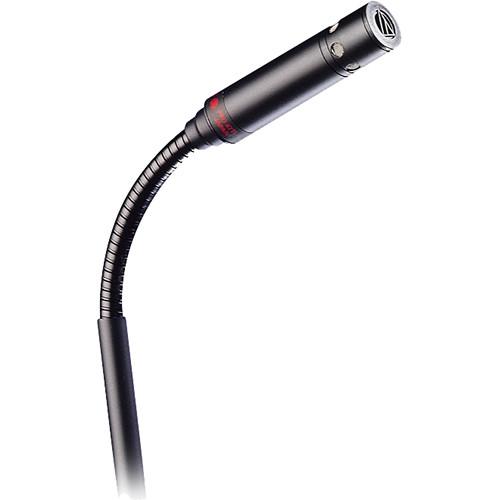

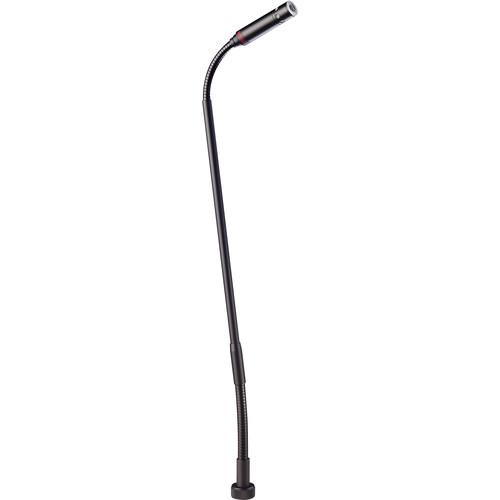

The Audio-Technica Pro 47TL gooseneck microphone is an ideal solution for use in boardrooms, schools, houses-of-worship, etc. The microphone conveniently mounts to any 5/8"-27 threaded microphone stand for added flexibility and features a permanently attached 9.8-foot XLR male cable. It's cardioid polar pattern effectively minimizes noise at the off-axis sections of the capsule, creating a focused, concentrated pick up area. The double-gooseneck provides easy microphone positioning. The Pro 47TL is powered via external 9-52V phantom power and self contained electronics eliminate the need for external power supplies and pre-amplifiers.
    Stand Mount
  • The Pro 47TL conveniently mounts to any standard microphone stand featuring a 5/8" - 27 threaded fitting.
    Cardioid Polar Pattern
  • The cardioid polar pattern is effective in minimizing off-axis noise and ambient audio while creating a focused pick up area.
    Flat Frequency Response
  • The wide flat frequency response delivers a smooth, rich, transparent audio quality suitable for speech.
UPC: 042005308538 In the Box Audio-Technica Pro 47TL ProPoint Series Stand Mount Condenser Gooseneck Microphone (15.79")

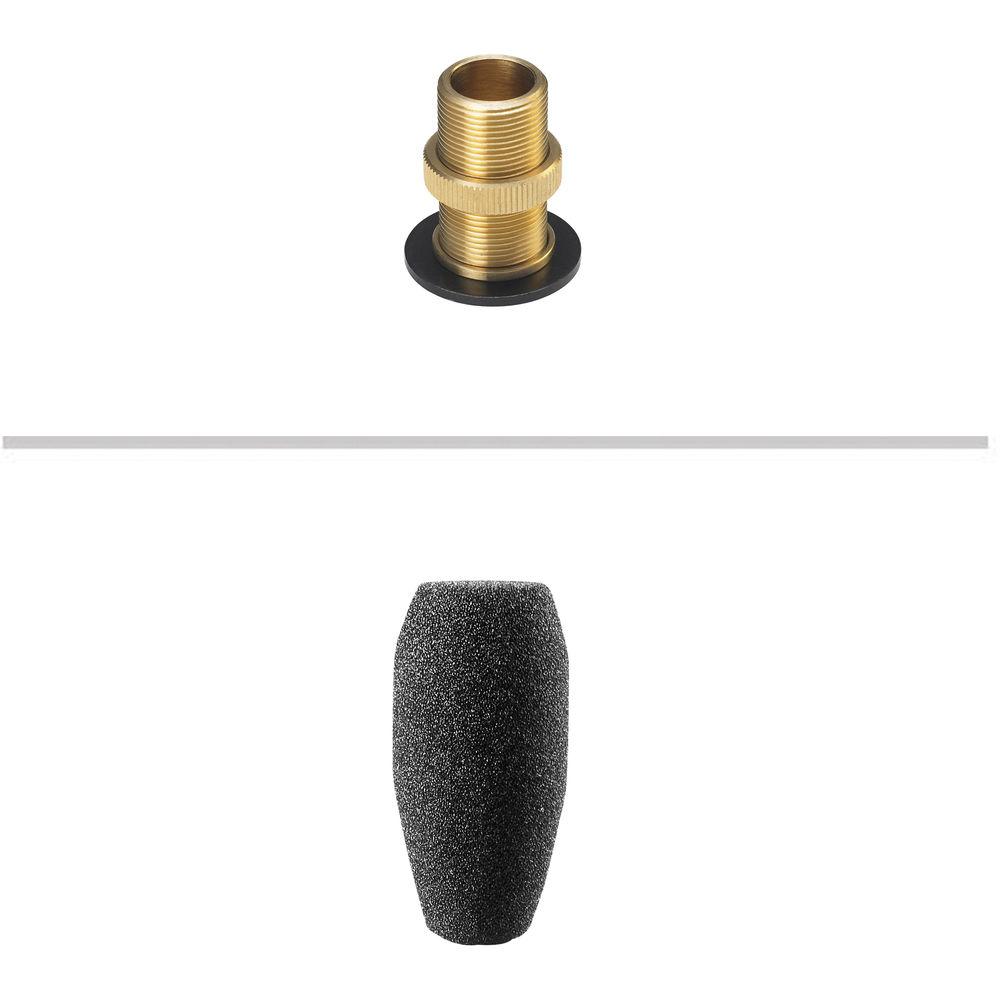

  • AT8146 Windscreen
  • AT8425 5/8"-27 Threaded Mounting Stud
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Audio-Technica Pro 47TL ProPoint Series Stand Mount Condenser Gooseneck Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Audio-Technica Pro 47TL Specs

    Transducer Fixed-charge back plate, permanently polarized condenser
    Polar Pattern Cardioid
    Frequency Response 70Hz-16kHz
    Dynamic Range (Typical) 106 dB, 1 kHz at Max SPL
    Signal-to-Noise Ratio 66 dB, 1 kHz at 1 Pa
    Maximum Input Sound Level 134 dB SPL, 1 kHz at 1% T.H.D.
    Power Requirements 9-52V DC, 2 mA typical
    Output Impedance 100 ohms
    Output Connectors 3-pin XLRM-type on cable
    Pad No
    Low Frequency Roll-Off No
    Cable Length 9.8' (3 m), permanently attached XLRM cable
    Dimensions 12.40 x .47" (315 x 12mm) (Length x Diameter)
    9.8' (3.0 m) (cable)
    Weight 2.2 oz (63 g)
    Package Weight 0.7 lb
    Box Dimensions (LxWxH) 24.0 x 1.6 x 1.6"
