Audio-Technica Pro 70 Cardioid Lavalier Microphone

Search your instruction manual in PDF to download

User Manual for Audio-Technica Pro 70 Cardioid Lavalier Microphone

Click to enlarge the picture
Audio-Technica Pro 70 Cardioid Lavalier Microphone Contents of the user manual for the Audio-Technica Pro 70 Cardioid Lavalier Microphone
  • Product category: Lavalier Microphones Audio-Technica
  • Brand: Audio-Technica
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Audio-Technica Lavalier Microphones

Audio-Technica Pro 70 Cardioid Lavalier Microphone Audio-Technica Pro 70 Cardioid Lavalier Microphone
User manual for the Audio-Technica Pro 70 Cardioid Lavalier Microphone contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Audio-Technica product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!



Product description

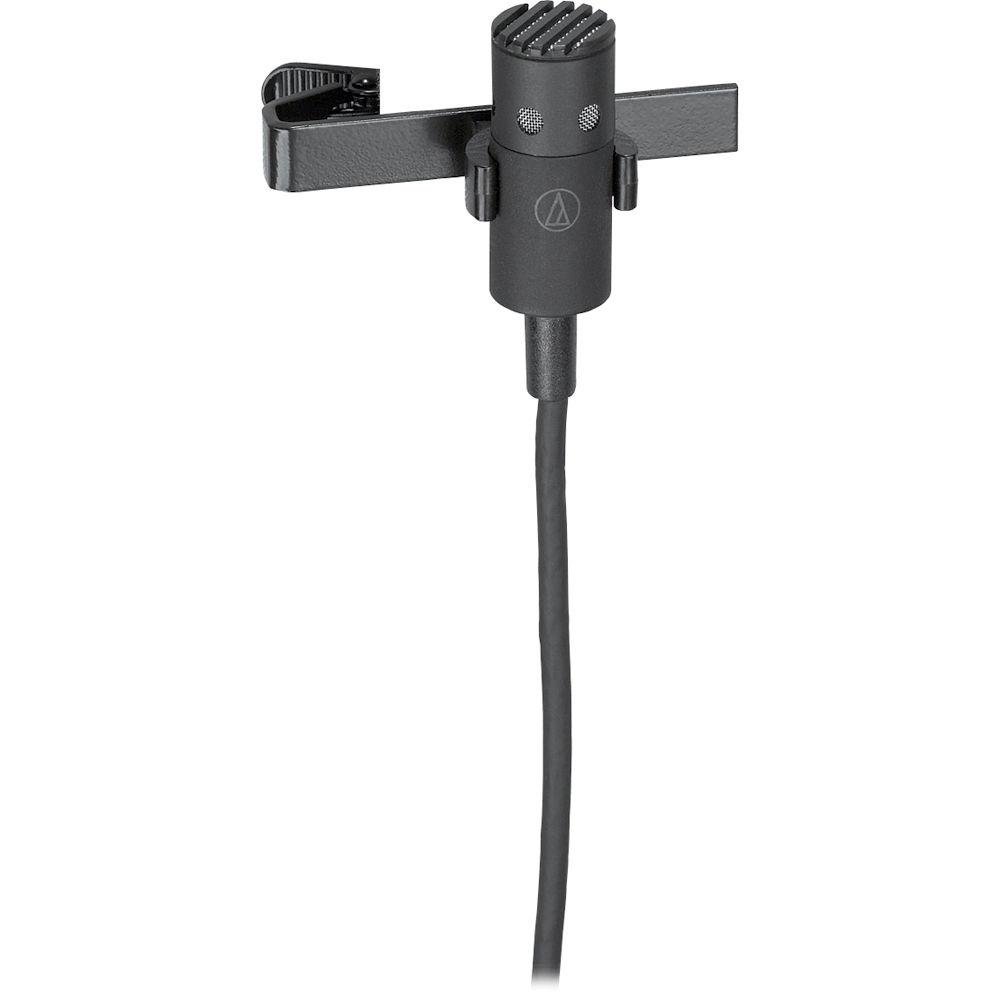

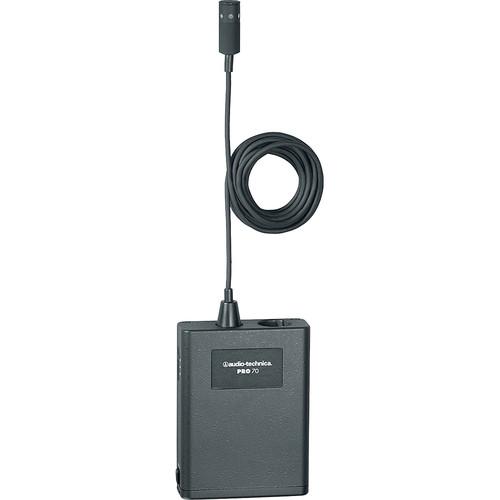

Essential Guide on How to Mic Talent for Video Read More xvtwstqyasudstcu The Audio-Technica Pro 70 is a cardioid lavalier microphone designed for vocal or instrument capturing in recording or sound reinforcement applications. The frequency response favors the mid-range frequencies of instruments and vocals while minimizing noise registering at high and low frequencies.The cardioid polar pattern is effective in minimizing pickup at the off-axis sections of the microphone capsule. The result is improved signal before feedback response and minimal ambiance pickup. A low frequency roll-off switch further reduces low frequency noise due to hum, wind etc. The provided UM3 power supply provides phantom power with a single 1.5V AA battery or external phantom power source. The UM3 provides a standard 3-pin XLR output connection to mixers, preamplifiers, cameras etc.
    Accurate Vocal and Acoustic Guitar Reproduction
  • The tailored frequency response favors the mid-range frequency response associated with vocal intelligibility and presence.
    Cardioid Polar Pattern
  • The cardioid pattern is effective in signal isolation. Audio signal at the off-axis sections of the capsule are attenuated, minimizing noise and improving gain-before-feedback response.
    Low Frequency Roll-Off
  • A low frequency roll-off filter switch minimizes low frequency noise and rumble due to wind, hum and proximity effect.
UPC: 042005134342 In the Box Audio-Technica Pro 70 Cardioid Lavalier Microphone
  • Power Module (attached)
  • AT8411 Clothing Clip

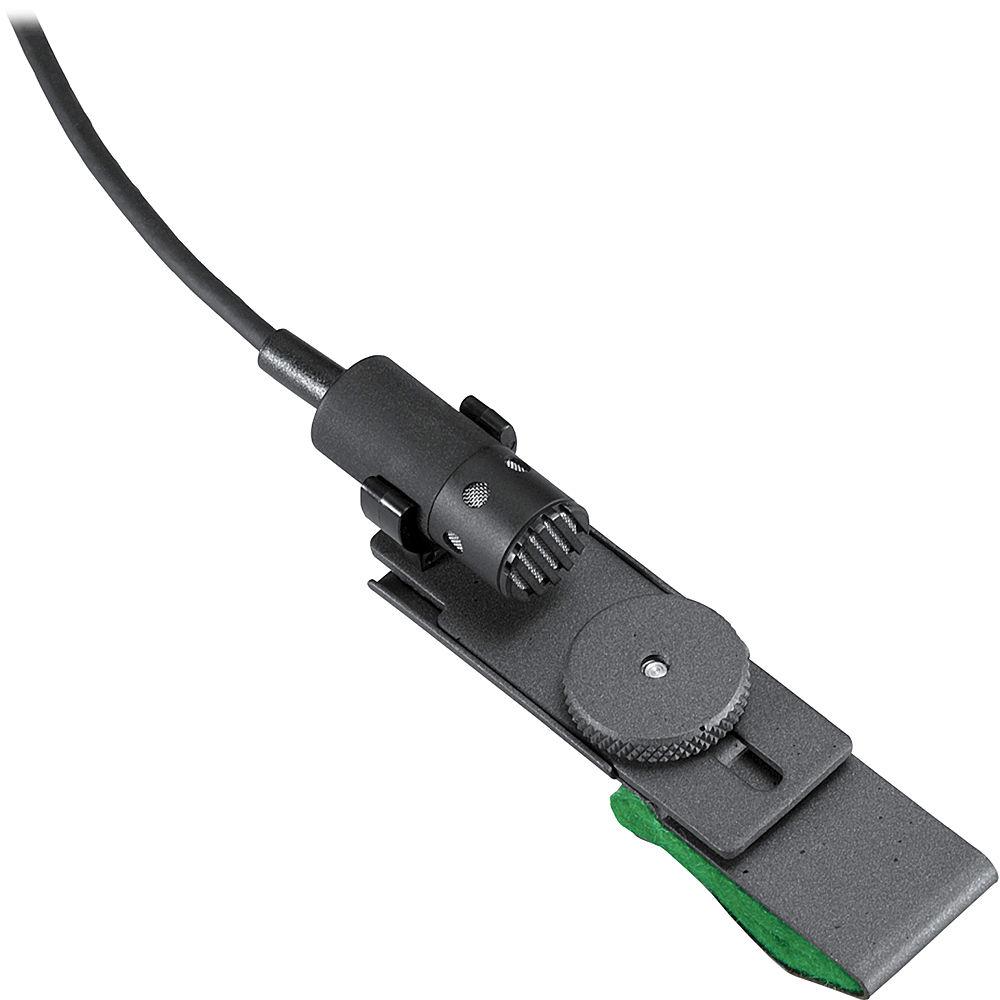

  • AT8444 Instrument Adapter
  • Windscreen
  • AA Battery
  • Protective Pouch
  • 1 Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Audio-Technica Pro 70 Cardioid Lavalier Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Download User Manual

    The user manual for the Audio-Technica Pro 70 Cardioid Lavalier Microphone can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Audio-Technica Pro 70 Cardioid Lavalier MicrophoneDownload PDF User Manual - https://www.search-manual.com/ upload/ audio-technica-pro-70-cardioid-lavalier-microphone-11003-user-manual.pdf
    (PDF file, 0.24 MB)


    Technical parameters

    Audio-Technica Pro 70 Specs

    Transducer Condenser
    Polar Pattern Cardioid
    Frequency Response 100Hz to 14kHz
    Dynamic Range (Typical) 96dB, 1kHz @ Max. SPL
    Signal-to-Noise Ratio 67dB, 1kHz @ 1 Pa
    Maximum Input Sound Level 123dB SPL, 1kHz @ 1% T.H.D.
    Power Requirements 11 - 52V, 2mA typical
    Output Impedance 200 ohms
    Output Connectors 3-pin XLR male
    Pad No
    Low Frequency Roll-Off 80Hz, 8dB per octave
    Dimensions Cable Length - 6' (1.8m)
    Weight 0.3 oz (8 g)
    Package Weight 0.9 lb
    Box Dimensions (LxWxH) 9.7 x 5.3 x 3.0"
