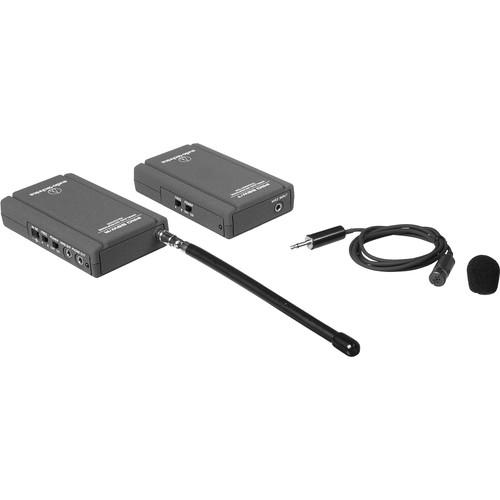

User Manual for Audio-Technica PRO 88W-829 Camera Mountable VHF Lavalier Pro 88W VHF Wireless System Click to enlarge the picture
Contents of the user manual for the Audio-Technica PRO 88W-829 Camera Mountable VHF
- Product category: Wireless Systems Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Wireless Systems
|
User manual for the Audio-Technica PRO 88W-829 Camera Mountable VHF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The Audio-Technica PRO-88 VHF wireless microphone system is a reliable, camera mountable microphone system for event videos, training videos and much more. The Pro-88 bridges the gap between quality and affordability by incorporating high quality, rugged components for optimum results. The system consists of the Pro 88 camera mountable receiver, body-pack transmitter and AT 829mW lavalier microphone. - Provides freedom of movement for video production, computer applications and business presentations
- Two switchable frequencies for interference-free operation
- High-band VHF operation for superior sound
- Normal operating range 100'; up to 300' under optimum conditions
- Durable, flexible antenna can be positioned for best reception
- Real-time monitoring capability with included earphone
- Rugged design and construction with handsome non-reflective finish
- Quick and reliable mounting system for camcorder use
- Receiver and transmitter are each powered by a single 9V battery
UPC: 042005402182 In the Box Audio-Technica PRO 88W-829 Camera Mountable VHF Lavalier Pro 88W VHF Wireless System 1/8" to 1/4" TRS Adapter 1/8" Audio Signal Cable Monitor Earphone Strip of Hook-and-Loop Fastener Double-Sided Adhesive Foam Strip Clothing Clip Windscreen 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica PRO 88W-829 Camera Mountable VHF Lavalier Pro 88W VHF Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica W88-TV-829 Specs | | | Type of System | Camera Mountable VHF Lavalier | | RF Carrier Frequency Range | TVHF / 179.400 & 180.600MHz | | Approx. Working Range | 300 Feet | | Overall Frequency Response | not specified by manufacturer | | Signal-to-Noise Ratio | not specified by manufacturer | | # Of Channels | 2 Switchable Frequencies | | # Of Simultaneous Systems | not specified by manufacturer | | | | Type of Receiver | Pro 88 VHF | | Type of Outputs | 1/8" Mini (3.5 mm) TRS | | Headphone Monitoring | Yes, included mono earphone | | Power Requirements | DC Input: 9V DC (center-positive)
Battery: 9V alkaline (not included) | | Battery Type/Approx. Life | 8 hours nominal | | Display | not specified by manufacturer | | Mounting Options | not specified by manufacturer | | Antenna Type | Flexible Whip Antenna | | Dimensions | 4.09 x 2.44 x 0.94" (104.0 x 62.0 x 24.0mm) (H x W x D) | | Weight | 3.5 oz (100 grams) | | | | Type of Transmitter | Frequency Modulation Body Pack | | Type of Input Connector | 1/8" (3.5mm) Mini | | Type of Microphone | AT829mW | | Polar Pattern | Cardioid | | Interchangeable Mic Heads | Compatible with MT830mW and PRO 8HEmW | | Battery Type/Approx. Life | 9V alkaline (not included, 8 hours nominal | | Mute Switch | not specified by manufacturer | | Level Control | not specified by manufacturer | | Antenna Type | Flexible Whip Antenna | | Display | not specified by manufacturer | | Dimensions | 4.09 x 2.44 x 0.94" (104.0 x 62.0 x 24.0mm) (H x W x D) | | Weight | 2.8 oz (80 grams) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 8.3 x 5.6 x 2.3" |
