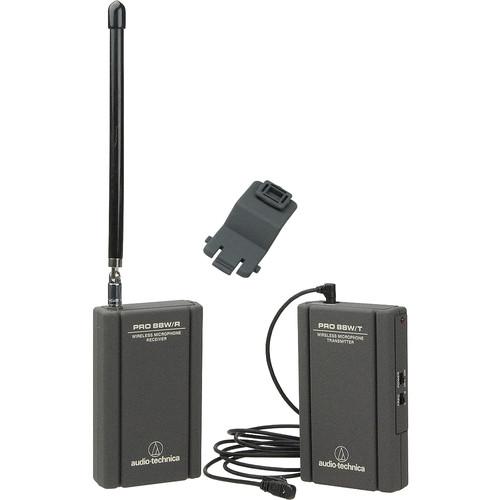

User Manual for Audio-Technica PRO 88W-830 Camera Mountable VHF Lavalier Wireless System Click to enlarge the picture
Contents of the user manual for the Audio-Technica PRO 88W-830 Camera Mountable VHF
- Product category: Wireless Systems Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Wireless Systems
|
User manual for the Audio-Technica PRO 88W-830 Camera Mountable VHF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description - Lavalier Microphones Demo
The PRO 88W-830 Camera Mountable VHF Lavalier Wireless System from Audio-Technica is designed to capture audio for camcorders and other small, easily portable cameras. Equipped with a flexible detachable antenna and a choice of two transmitter and receiver frequencies on each system, the PRO 88W-830 VHF wireless system will mount on the light shoe of camcorders or on the back of a camera with touch-fastener tape.The system includes a beltpack transmitter, camera mountable receiver and the MT830mW omnidirectional lavalier microphone. Provisions for headphone monitoring are provided and earphones are included. The beltpack transmitter features a 3.5mm mini microphone input, the optional CP8306 cable will adapt balanced XLR terminated microphones to the transmitter. Both transmitter and receiver feature rugged housing construction and will operate up to 8 hours on 9V alkaline batteries (not included). - Provides freedom of movement for video production, computer applications, and business presentations
- Two switchable frequencies for interference-free operation
- High-band VHF operation for a natural sound
- Normal operating range 100'; up to 300' under optimum conditions
- Durable, flexible antenna can be positioned for the best reception
- Real-time monitoring capability with included earphone
- Rugged design and construction with a non-reflective finish
- Quick and reliable mounting system for camcorder use
- Receiver and transmitter are each powered by a single 9V battery
UPC: 042005402151 In the Box Audio-Technica PRO 88W-830 Camera Mountable VHF Lavalier Wireless System (T57: 171.045 & 171.845 MHz) MT830mW Omnidirectional Lavalier Condenser Microphone (Black, 3.5mm Connector) Monitor Earphone Coiled 3.5mm to 3.5mm Mini-Jack Cable Mini-Jack to 1/4" Adapter Camera Shoe Adapter Belt Clip Touch Fastener Limited 1-Year Warranty User Manual PDF 703.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica PRO 88W-830 Camera Mountable VHF Lavalier Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica W88-57-830 Specs | | | Operating Frequencies | T57: 171.045 & 171.845 MHz | | Number of Channels | 2 | | Modulation Mode | FM | | Frequency Response | Not specified by manufacturer | | | | Reception System | FM Superheterodyne | | Reception Sensitivity | 2
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
