User Manual for Audio-Technica System 10 Camera-Mount Digital Wireless Microphone System Click to enlarge the picture
Contents of the user manual for the Audio-Technica System 10 Camera-Mount Digital Wireless
- Product category: Wireless Systems Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Wireless Systems
 |
User manual for the Audio-Technica System 10 Camera-Mount Digital Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description Hands-On Review: Audio-Technica System 10 Camera-Mounted Digital Wireless System Read More - Audio Technica System 10 Demo
- Audio-Technica System 10 Camera-Mount Digital Wireless Systems

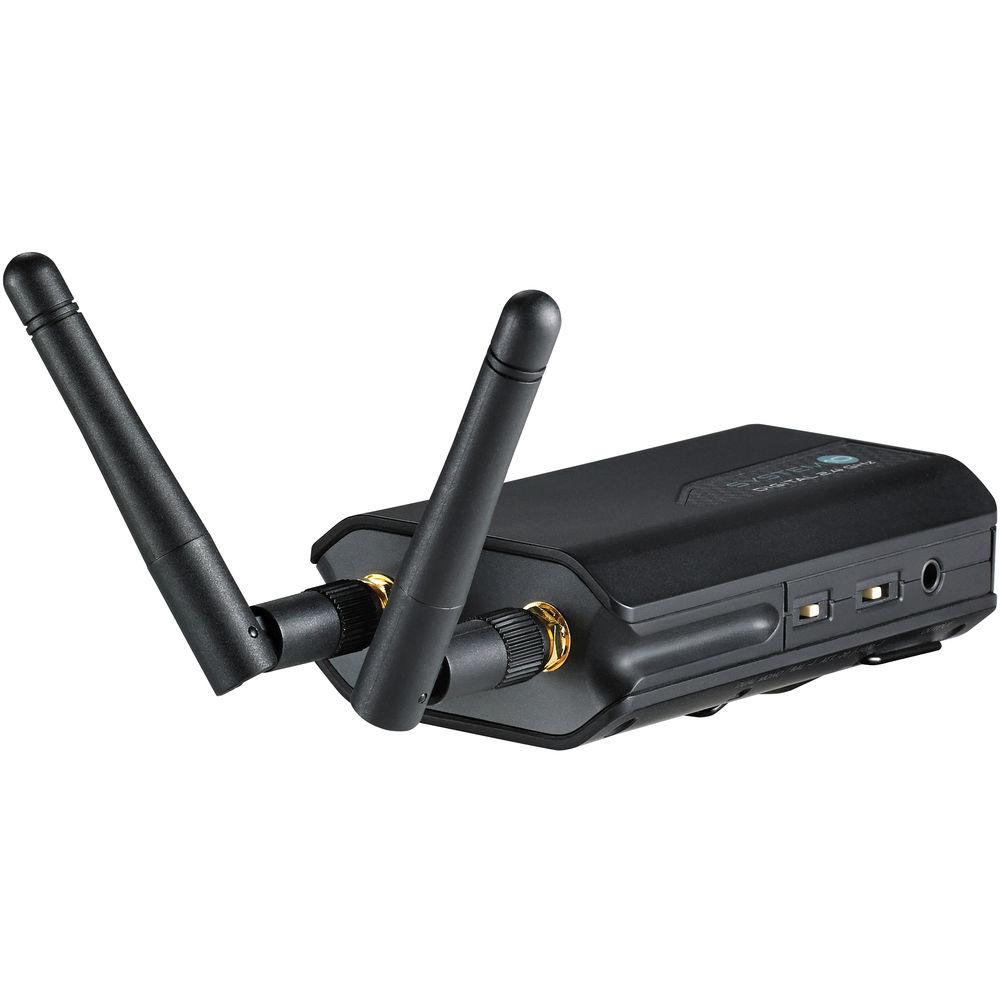

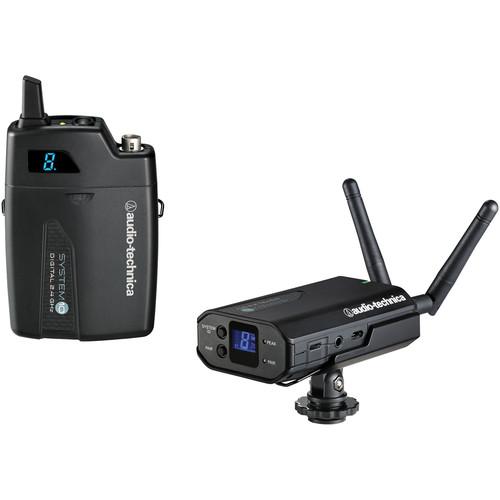

The Audio-Technica System 10 Camera-Mount Digital Wireless Microphone System is designed to be placed in the cold shoe or hot shoe of a video camera, DSLR, mirrorless, or other similar camera for digital film making and electronic news gathering (ENG) applications. This system does not include a lavalier microphone.

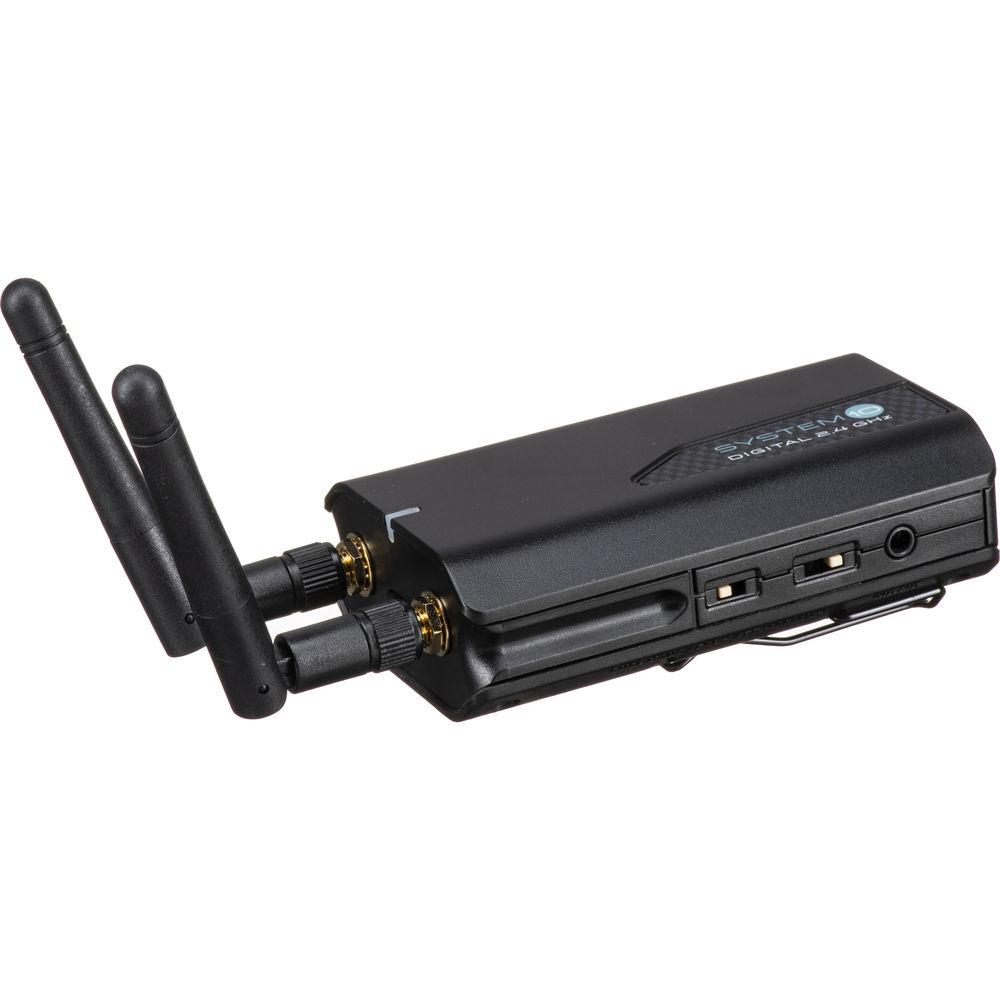

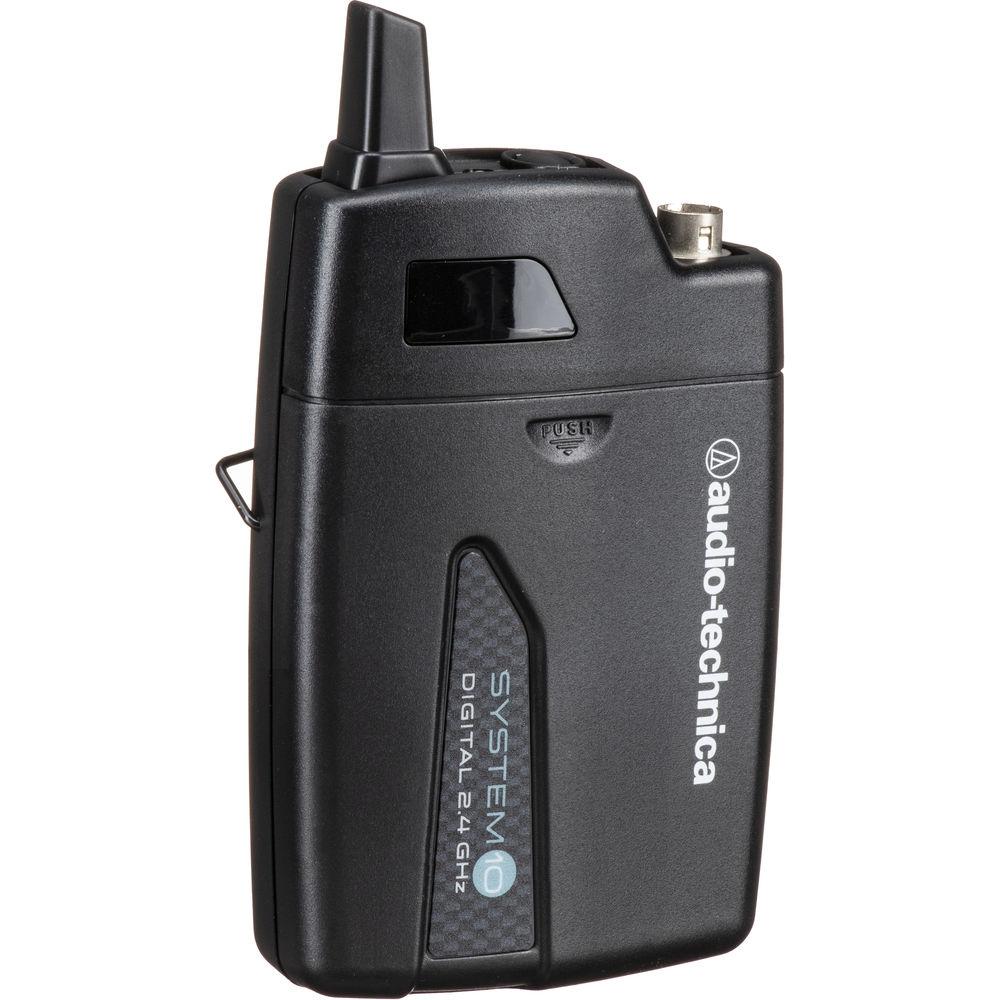

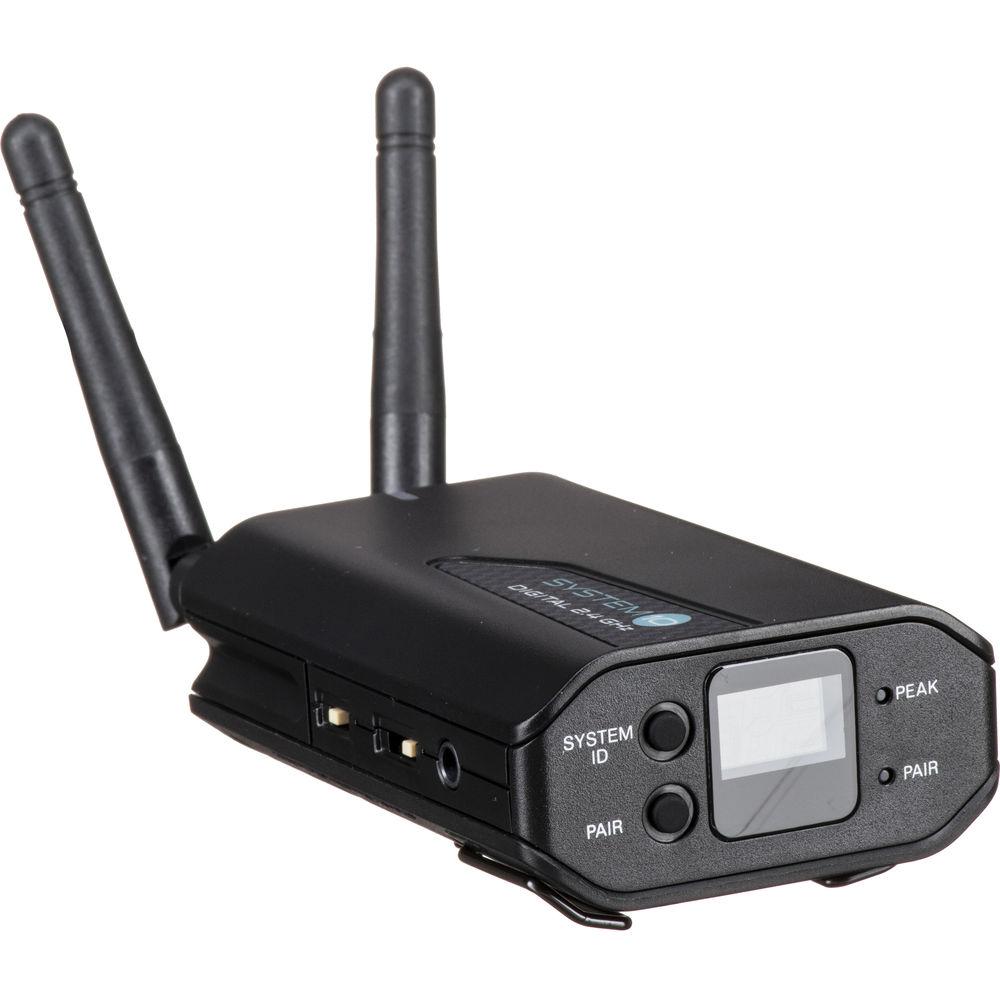

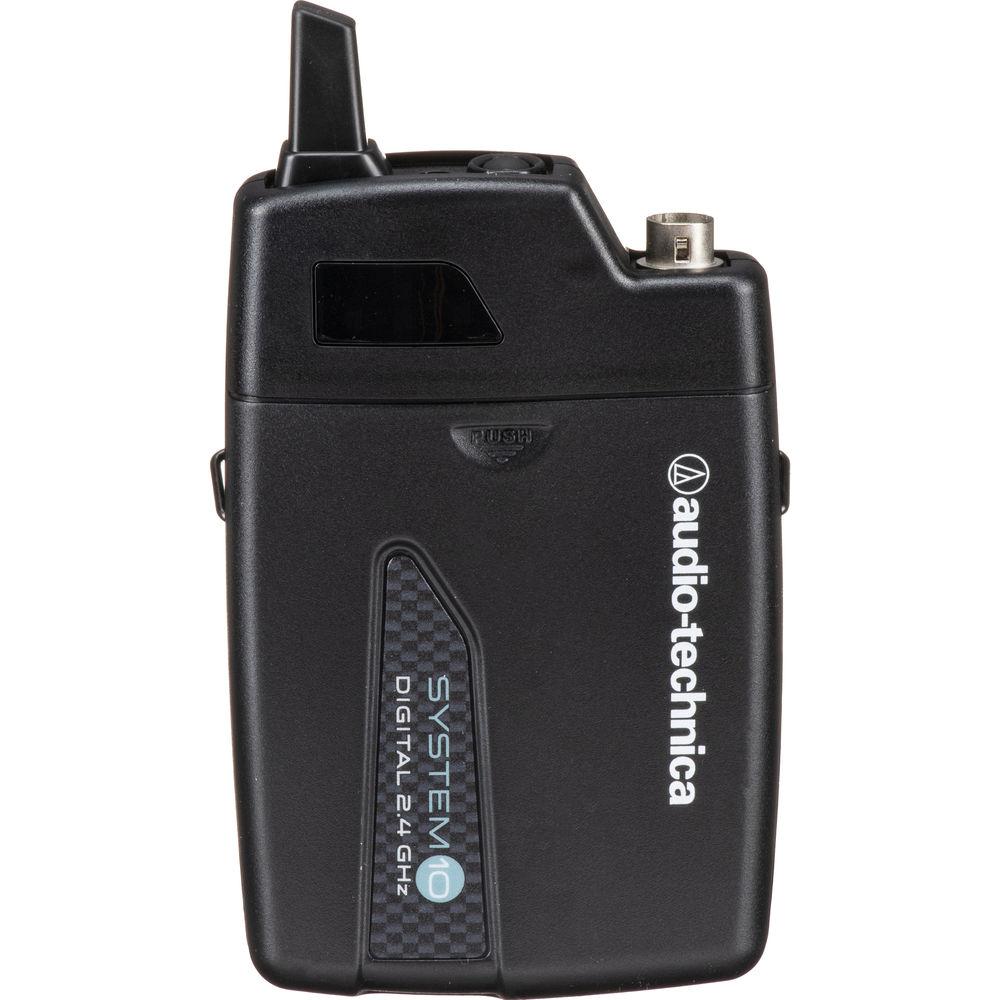

The compact camera-mountable ATW-R1700 receiver features an independent headphone monitor output, and selectable balanced or unbalanced audio outputs on 3.5mm mini-jack connectors. The unit is powered by an internal rechargeable Li-Ion battery, and both the receiver and bodypack transmitter battery life indicators are displayed on the receiver. This system comes with a wearable bodypack transmitter with 10 mW RF output powered by two 1.5 V AA batteries (not included) for an effective operating range of approximately 100'.
The system operates in the 2.4 GHz range and is immune to both TV and DTV interference. For reception the receiver implements time, frequency, and space diversity processing with instantaneous channel selection, sync, and setup.
Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Space Diversity uses two antennas on each transmitter and receiver to maintain signal integrity. - Frequency Diversity
- Sends the signal on two dynamically allocated frequencies for interference-free communication
- Time Diversity
- Sends the signal in multiple time slots to maximize immunity to multipath interference
- Space Diversity
- Uses two antennas on each transmitter and receiver to maintain signal integrity.

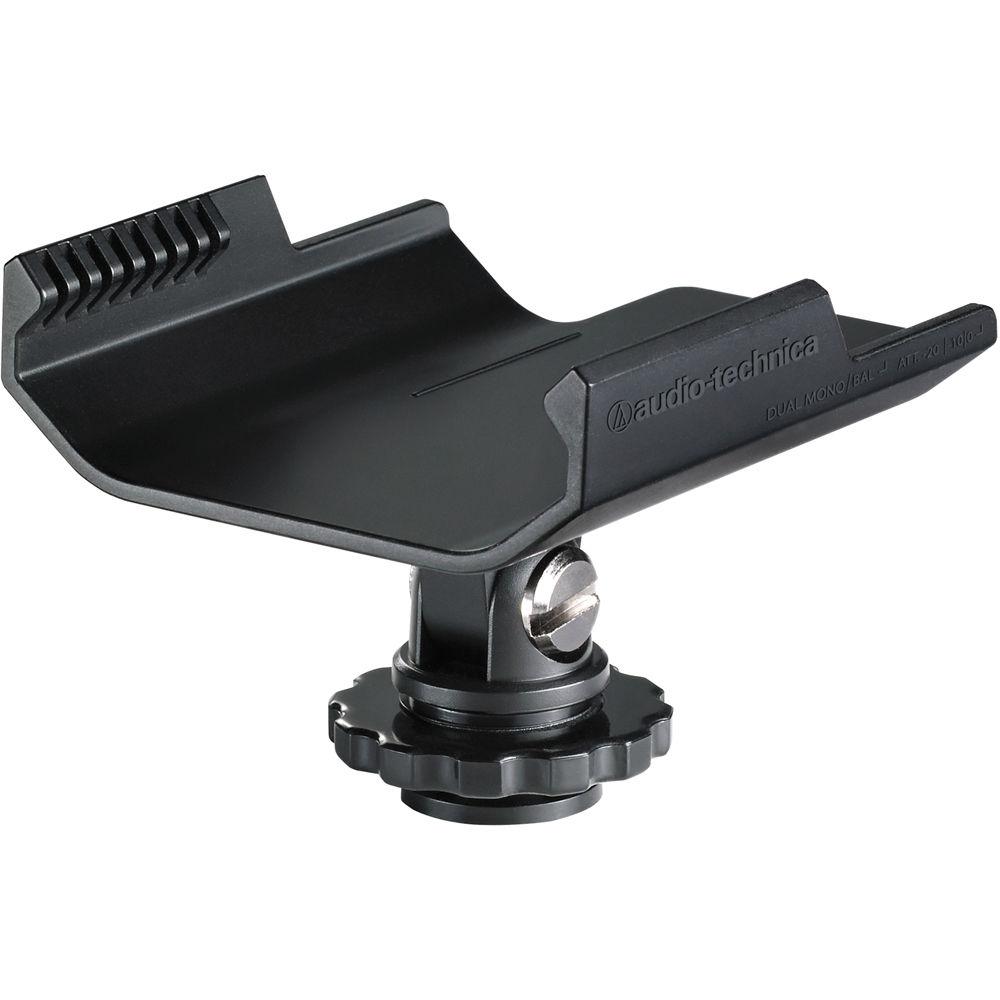

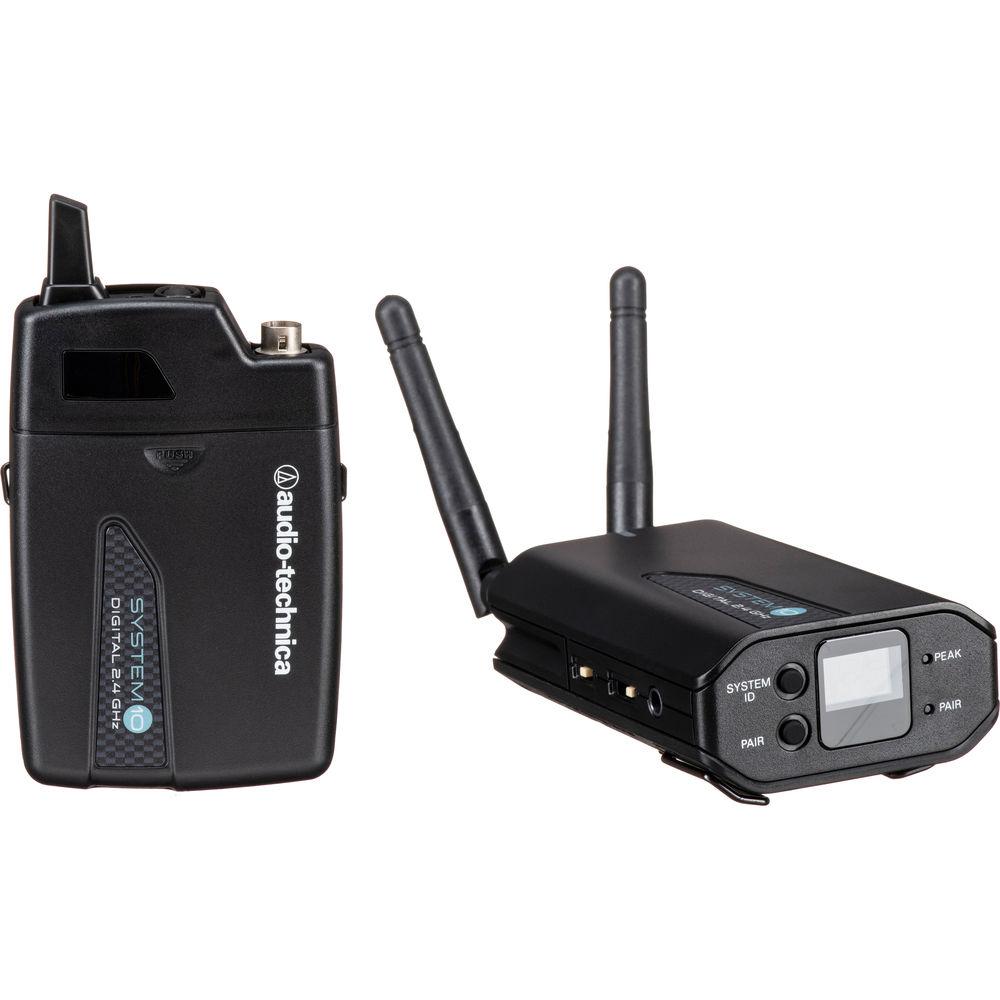

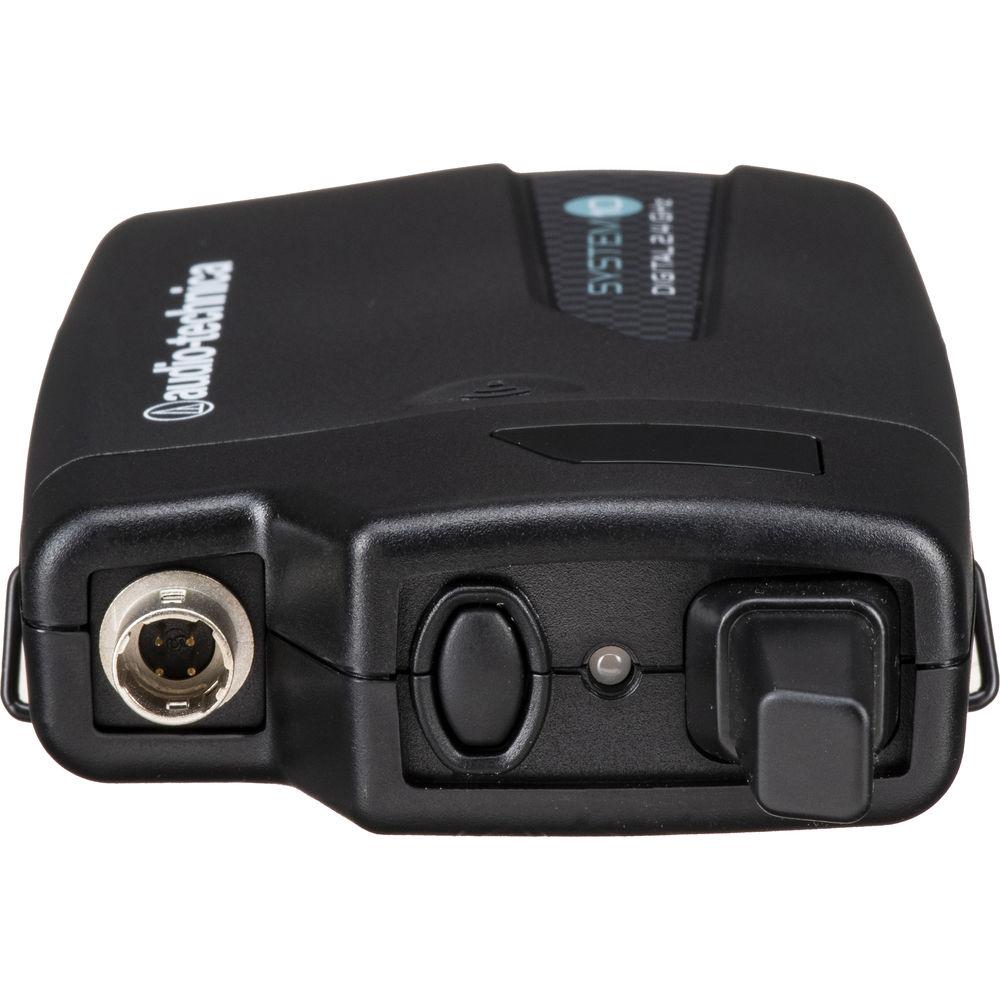

In the Box Audio-Technica System 10 Camera-Mount Digital Wireless Microphone System (Microphone Not Included) Hot- or Cold-Shoe Adapter ATW-R1700 Camera-Mount Wireless 2.4 GHz Receiver ATW-T1001 System 10 Digital UniPak Transmitter yuyafbcaxtuwzuue Limited 2-Year Warranty User Manual PDF 736.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica System 10 Camera-Mount Digital Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATW-1701 Specs | | | Operating Frequencies | 2.4 GHz ISM band | | Dynamic Range | >109 dB (A-weighted), typical | | Total Harmonic Distortion | <0.05% typical | | Operating Range | 100' (30 m) typical in open range environment with no interfering signals | | Operating Temperature | 32 to 104° F (0 to 40° C) | | Frequency Response | 20 to 20,000 Hz | | | | I/O | Balanced or unbalanced 1/8" (3.5 mm) | | System | Diversity (frequency, time, space) | | Antennas | 2 | | Power Supply | Internal Li-ion battery | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer | | | | RF Power Output | 10 mW | | Spurious Emission | Following federal and national regulations | | Input Connections | Four-pin locking connector
Pin 1: GND, Pin 2: INST INPUT
Pin 3: MIC INPUT, DC BIAS +9 V | | Batteries | 2x 1.5 V AA (not included) | | Battery Life | >7 hours (alkaline), depending on battery type and use pattern | | Dimensions (W x H x D) | 2.76 x 4.21 x 0.98" (70.2 x 107.0 x 24.9 mm) | | Weight | 3.50 oz (100 g) without batteries | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 14.1 x 7.1 x 3.2" |
