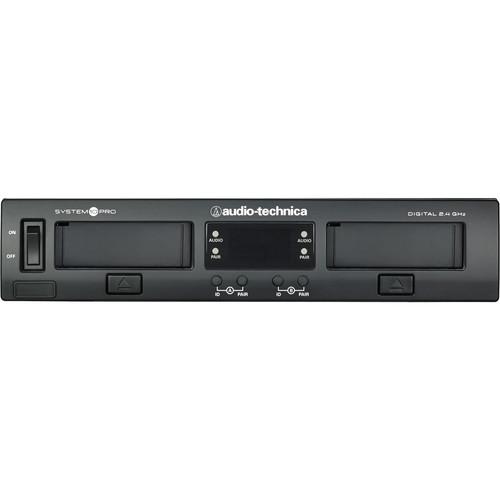

User Manual for Audio-Technica System 10 PRO ATW-RC13 Rack-Mount Digital Wireless Receiver Click to enlarge the picture
Contents of the user manual for the Audio-Technica System 10 PRO ATW-RC13 Rack-Mount
- Product category: Wireless Receivers Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Wireless Receivers
|
User manual for the Audio-Technica System 10 PRO ATW-RC13 Rack-Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The System 10 PRO ATW-RC13 from Audio-Technica is a digital 24-bit/48 kHz wireless receiver that operates on the 2.4 GHz ISM band. It can be used to capture audio when paired with a transmitter and microphone for applications such as live stage, theater, DJ setups, and more. The System 10 PRO features a half-rack chassis that allows you to mount one or two receiver units; however, the receiver units can be released from the chassis and mounted remotely (up to 328' away) via an Ethernet cable. Up to five chassis (10 receiver units) can be linked using a RJ12 cable, creating a multi-channel system with up to 10 channels being used simultaneously. In addition, other features include an easy-to-read display for easy setup, and three levels of diversity, namely frequency, time, and space, to help deliver a professional-quality sound. Frequency Diversity sends the signal on two allocated frequencies. Time Diversity sends the signal in multiple time slots. Space Diversity uses two antennas on each transmitter and receiver unit, thus to help maximize signal integrity. Each System 10 PRO rack-mount receiver includes a rack-mount adapter, receiver unit mounting brackets, one RJ12 cable, and an AC adapter. - Digital 24-bit/48 kHz wireless operation for professional-sound quality and dependable performance
- Receiver units can be docked in the chassis or mounted remotely (up to 328' away) via an Ethernet cable for added versatility
- Up to five chassis (10 receiver units) can be linked and used simultaneously
- Each receiver unit can be paired with up to 10 transmitters, allowing users to instantly switch between different transmitter configurations
- Extremely easy operation with instantaneous channel selection, sync, and setup
- Ground-lift switch helps eliminate audible hum caused by ground loops
In the Box Audio-Technica System 10 PRO ATW-RC13 Rack-Mount Digital Wireless Receiver (2.4 GHz) AC Adapter Link Cable Rack-Mount Adapters Rubber Feet Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica System 10 PRO ATW-RC13 Rack-Mount Digital Wireless Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATW-RC13 Specs | | | Operating Frequencies | 2.4 GHz ISM band | | Dynamic Range | >109 dB (A-weighted), typical | | Total Harmonic Distortion (THD) | <0.05% typical | | Operating Range | 200' (60 m) open range environment with no interfering signals | | Operating Temperature Range | 32 to 104°F (0 to 40°C) battery performance may be reduced at very low temperatures | | Frequency Response | 20 Hz to 20 kHz (depending on microphone type) | | | | Receiving System | Diversity (frequency/time/space) | | Output Connectors | Remote Receiver Connector: RJ45
Link Connector: RJ12 | | Maximum Output Level | XLR Balanced: 0 dBV
1/4" (6.3 mm) Unbalanced: +6 dBV | | Power Supply | 100-240 VAC (50/60 Hz) to 12 VDC 0.5 A power supply switched mode external | | Dimensions (W x H x D) | 8.26 x 1.73 x 6.67" (209.8 x 44 x 169.3 mm) | | Weight | 33.2 oz (940 g) | | | | Box Dimensions (LxWxH) | 13.89 x 10.24 x 3.35" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 05 owners. Add your rating and experience with the product.
