Product description

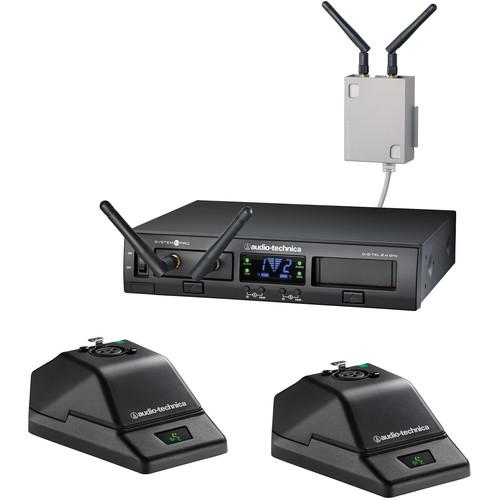

The System 10 PRO Rack-Mount Digital Wireless System from Audio-Technica includes an ATW-RC13 receiver chassis with rack-mount adapters, two ATW-RU13 receiver units with corresponding AT8690 receiver unit mounting brackets, a joining plate, one RJ12 cable, one AC adapter, and two ATW-T1007 microphone desk stand transmitters. The receiver and transmitter feature an easy-to-read display. The system provides interference-free operation in the 2.4 GHz range (outside TV bands). The half-rack chassis is equipped to house two receiver units that can be operated locally or released from the chassis and mounted remotely (up to 328' away) via Ethernet cable. Up to five chassis (10 receiver units) can be linked using the RJ12 cable included with the system, creating a stable, multichannel system with the simultaneous use of up to 10 channels. The PRO Rack-Mount features 24-bit operation, easy setup, clear, natural sound quality, and three levels of diversity assurance (frequency, time, and space). Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Space Diversity uses two antennas on each transmitter and receiver unit to maximize signal integrity.
  • System 10 PRO ATW-RC13 Rack-Mount Digital Wireless Receiver (2.4 GHz) The System 10 PRO ATW-RC13 from Audio-Technica is a digital 24-bit/48 kHz wireless receiver that operates on the 2.4 GHz ISM band. It can be used to capture audio when paired with a transmitter and microphone for applications such as live stage, theater, DJ setups, and more. The System 10 PRO features a half-rack chassis that allows you to mount one or two receiver units; however, the receiver units can be released from the chassis and mounted remotely (up to 328' away) via an Ethernet cable. Up to five chassis (10 receiver units) can be linked using a RJ12 cable, creating a multi-channel system with up to 10 channels being used simultaneously. In addition, other features include an easy-to-read display for easy setup, and three levels of diversity, namely frequency, time, and space, to help deliver a professional-quality sound. Frequency Diversity sends the signal on two allocated frequencies. Time Diversity sends the signal in multiple time slots. Space Diversity uses two antennas on each transmitter and receiver unit, thus to help maximize signal integrity. Each System 10 PRO rack-mount receiver includes a rack-mount adapter, receiver unit mounting brackets, one RJ12 cable, and an AC adapter.
    • Digital 24-bit/48 kHz wireless operation for professional-sound quality and dependable performance
    • Receiver units can be docked in the chassis or mounted remotely (up to 328' away) via an Ethernet cable for added versatility
    • Up to five chassis (10 receiver units) can be linked and used simultaneously
    • Each receiver unit can be paired with up to 10 transmitters, allowing users to instantly switch between different transmitter configurations
    • Extremely easy operation with instantaneous channel selection, sync, and setup
    • Ground-lift switch helps eliminate audible hum caused by ground loops
  • ATW-RU13 System 10 PRO Receiver Unit (2.4 GHz) The ATW-RU13 System 10 PRO Receiver Unit from Audio-Technica is a 24-bit/48 kHz digital module that operates in the 2.4 GHz range. It can be used when paired with a System 10 PRO rack-mount system chassis and transmitter/microphone (sold separately) to capture audio for applications such as presentations, lectures, boardrooms, live stage, theater, houses of worship, and more. The ATW-RU13 receiver module provides easy setup with clear, natural sound quality and has three levels of diversity assurance, namely frequency, time, and space. This module can also be used remotely and linked via an Ethernet cable, and used up to 328' away from the chassis. The ATW-RU13 includes two antennas with one receiver holder. UPC: 042005186655
  • ATW-T1007 System 10 Wireless Desk-Stand Transmitter The ATW-T1007 from Audio-Technica is a 2.4 GHz wireless desk-stand transmitter with a 3-pin XLR female-type input, and is designed to work with a phantom-powered condenser gooseneck microphone (not included). It can be used in conference spaces when paired with a System 10 or System 10 PRO digital wireless receiver (sold separately), and utilized for speeches, boardroom meetings, school lectures, and more.Featuring a touch-sensitive user switch, the ATW-T1007 transmitter can toggle between talk and mute modes, or function as a press-to-talk or press-to-mute button. Two red/green LEDs – one visible from the front of the unit, the other from the rear – indicate toggle/talk/mute mode, battery level, and charging status.Also, the wireless desk stand offers three levels of input gain (-6 , 0 , and +6 dB), which can be selected with a switch on the bottom of the unit. Another switch engages the low-cut filter. The 3.7V rechargeable lithium-ion battery can provide up to nine hours of use on a full charge, and is easily recharged with the included USB charging cable.
    • Designed to work with phantom-powered, condenser gooseneck microphones with a 3-pin XLRM-type output
    • Automatic frequency selection for seamless, interference-free operation
    • The transmitter pairs with any System 10 or System 10 PRO digital wireless receiver
    • Operates in the 2.4 GHz range - completely free from TV interference
    • Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
In the Box Bundle Items System 10 PRO ATW-RC13 Rack-Mount Digital Wireless Receiver (2.4 GHz) wfduzuzzuaeeeyruszyqecrywyvxwyudtrb
  • AC Adapter
  • Link Cable
  • Rack-Mount Adapters
  • Rubber Feet
  • Limited 2-Year Warranty
2 x ATW-RU13 System 10 PRO Receiver Unit (2.4 GHz) wfduzuzzuaeeeyruszyqecrywyvxwyudtrb
  • 2 x Antennas
  • AT8690 RU13 Holder
  • Limited 2-Year Warranty
2 x ATW-T1007 System 10 Wireless Desk-Stand Transmitter wfduzuzzuaeeeyruszyqecrywyvxwyudtrb
  • USB Charging Cable
  • 3.7 V Rechargeable Lithium-Ion Battery
  • Limited 2-Year Warranty
Table of Contents




Upload User Manual

Have you got an user manual for the Audio-Technica System 10 PRO Rack-Mount Digital Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • System 10 PRO ATW-RC13 Rack-Mount Digital Wireless Receiver (2.4 GHz)
    Operating Frequencies 2.4 GHz ISM band
    Dynamic Range >109 dB (A-weighted), typical
    Total Harmonic Distortion (THD) <0.05% typical
    Operating Range 200' (60 m) open range environment with no interfering signals
    Operating Temperature Range 32 to 104°F (0 to 40°C) battery performance may be reduced at very low temperatures
    Frequency Response 20 Hz to 20 kHz (depending on microphone type)
    Receiving System Diversity (frequency/time/space)
    Output Connectors Remote Receiver Connector: RJ45
    Link Connector: RJ12
    Maximum Output Level XLR Balanced: 0 dBV
    1/4" (6.3 mm) Unbalanced: +6 dBV
    Power Supply 100-240 VAC (50/60 Hz) to 12 VDC 0.5 A power supply switched mode external
    Dimensions (W x H x D) 8.26 x 1.73 x 6.67" (209.8 x 44 x 169.3 mm)
    Weight 33.2 oz (940 g)
    Box Dimensions (LxWxH) 13.89 x 10.24 x 3.35"
  • ATW-RU13 System 10 PRO Receiver Unit (2.4 GHz)
    Operating Frequencies 2.4 GHz ISM band
    Dynamic Range >109 dB (A-weighted), typical
    Total Harmonic Distortion (THD) <0.05% typical
    Operating Range 200' (60 m) open range environment with no interfering signals
    Operating Temperature Range 32 to 104°F (0 to 40°C) battery performance may be reduced at very low temperatures
    Frequency Response 20 Hz to 20 kHz (depending on microphone type)
    Audio Sampling 24-bit/ 48 kHz
    Latency 3.8 ms
    Receiving System Diversity (frequency/time/space)
    Remote Receiver Connector RJ45
    Mounting Thread 1/4" x 20
    Dimensions (W x H x D) 2.24 x 0.75 x 3.06" (57 x 19 x 77.6 mm)
    Weight 2.3 oz (64 g)
    Box Dimensions (LxWxH) 5.8 x 4.3 x 3.4"
  • ATW-T1007 System 10 Wireless Desk-Stand Transmitter
    Type of Microphone Wireless desk-stand transmitter
    Compatible Receivers System 10 or System 10 PRO
    Bandwidth 2.4 GHz
    Audio Performance Digital 24-bit/48 kHz
    Controls 3 x Gain Levels: -6 dB (for loudest voices), 0 dB, and +6 dB (for softest voices)
    Low-cut filter
    Talk/Mute Mode: Switch
    LEDs 2 x red/green
    Frequency Selection Automatic
    Battery 3.7 V rechargeable lithium-ion
    Battery Duration Up to 9-hours of use on full charge
    Input 3-pin XLR female
    Output 3-pin XLR male
    Dimensions Not specified by manufacturer
    Weight Not specified by manufacturer
    Box Dimensions (LxWxH) 9.8 x 5.8 x 2.9"
